smartDEN IP-16R-XX User Manual
13 Apr 2021
8.6. Relays Settings

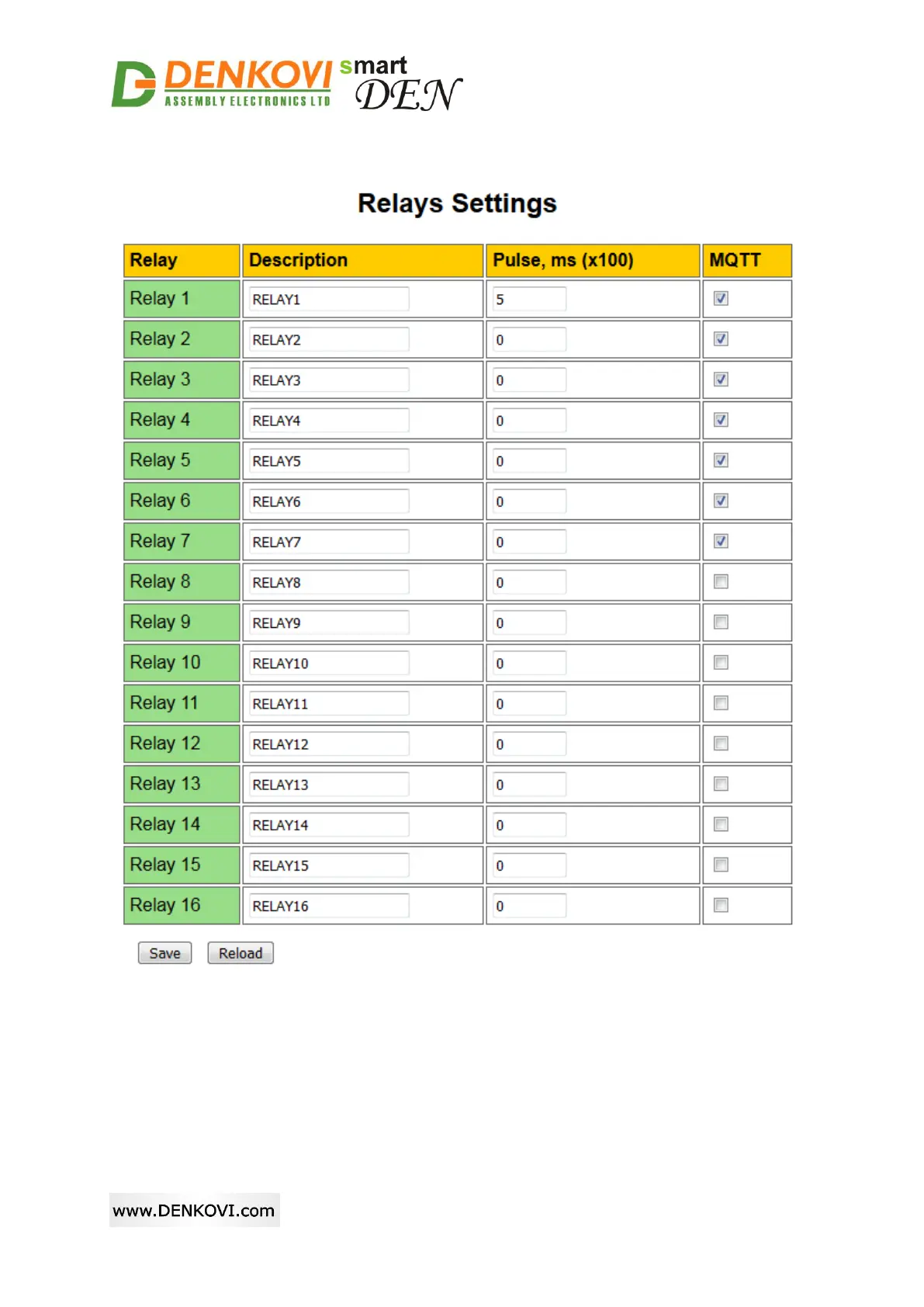

Figure 8.8. Relays names
This page configures the following parameters for the relays:
Description: Relay identification string (max 7 chars).
Pulse, ms (x100): Determines if the relay works in pulse mode and if so what
is the duration of the single pulse (in milliseconds x 100 - for example value of
10 means 1 second). This parameter can accept values between 0 and
65535. If it is 0, then the pulse mode is disabled. If it is between 1 and 65535,
then the pulse mode for this relay is activated and it will be hold in high level
