PART NAMES AND FUNCTIONS

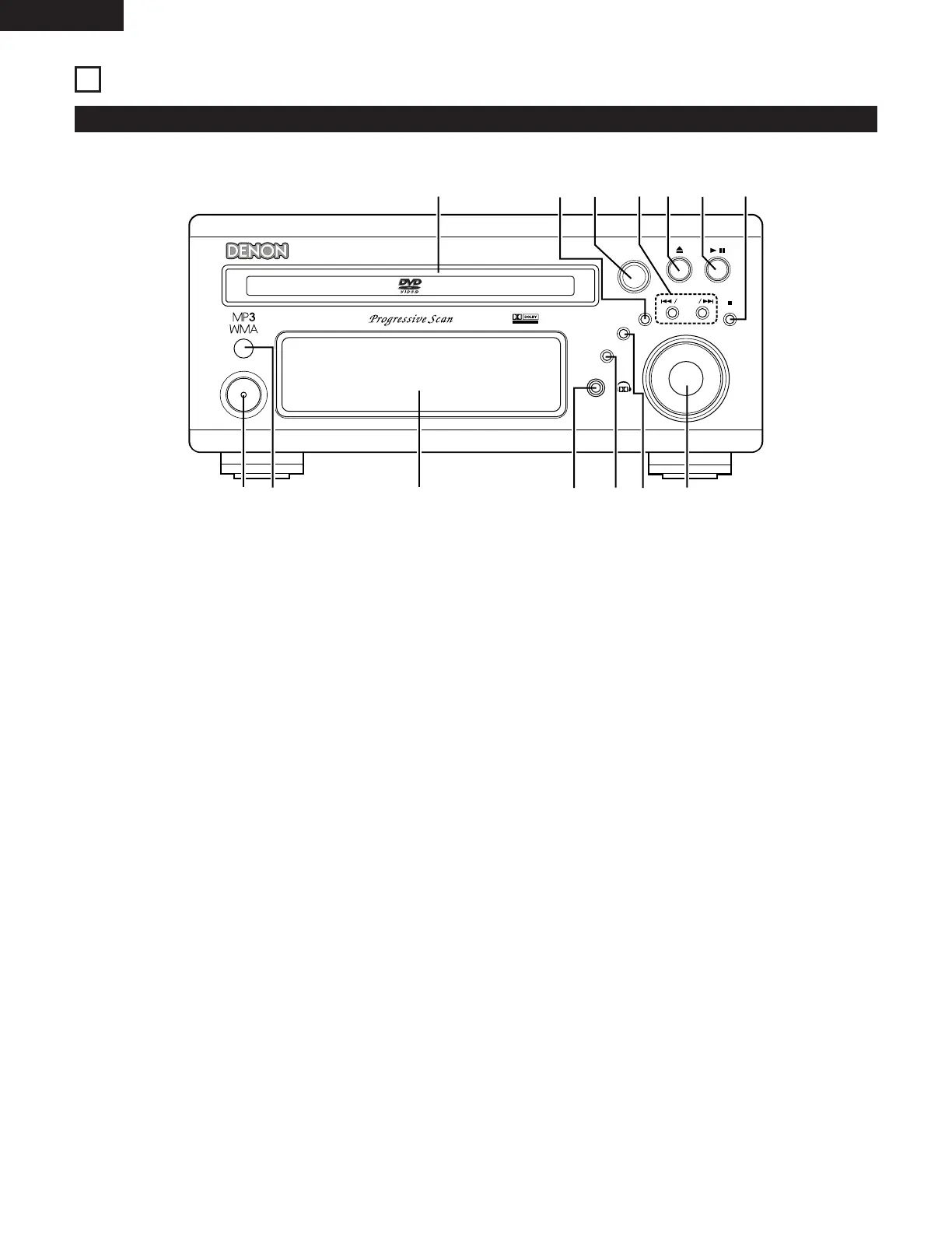

Front Panel
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
B
BAND
PHONES
VOLUME
ON / STANDBY
DVD SURROUND RECEIVER ADV-M71
TONE / SDB
FUNCTION
MENU/ SET
+
-
SURROUND / SELECT
PUSH - PARAM.
VIRTUAL SPEAKER
!4 !3 !2 !1 !0 oi
uytrewq
q
Power button (ON/STANDBY)..................................................(30)
w
Remote control sensor.............................................................(21)
e
Display
r
Headphones jack (PHONES) ....................................................(57)
t
Function selector (FUNCTION).................................................(43)
y
Tone/super dynamic bass button (TONE/SDB) ........................(45)
u
Volume control (VOLUME).......................................................(41)
i
Stop/band button ( 2 BAND)..............................................(41, 62)
o
Play/pause button ( 1 / 3) .......................................................(40)
!0
Open/close button ( 5 ) ..........................................................(40)
!1
Skip backward and forward buttons
( 8 / – and + / 9 ) .....................................................(42, 62)
!2
Surround/select knob (SURROUND/SELECT) ..........................(49)
Surround parameter button (PARAMETER) .............................(50)
!3
Menu/set button (MENU/SET) .................................................(64)
!4
Disc holder ...............................................................................(39)
