Connecting 7.1-channel speakers
o

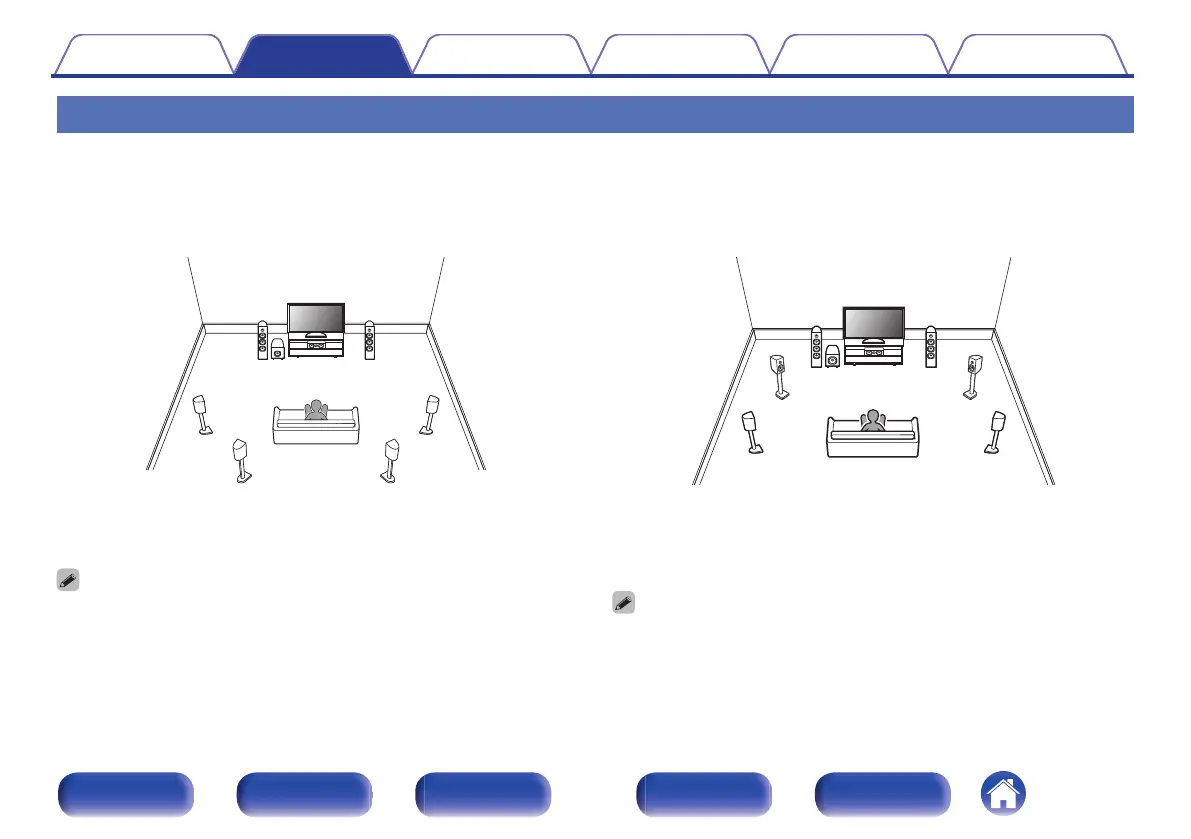

Example layout when using surround back
speakers
This 7.1-channel surround system is basic 7.1-channel system.
(Adding surround back speakers to basic 5.1-channel system)
FL
SW
C
SL
FR
SR
SBL SBR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & SB” in the menu when connecting in this
configuration. (v p. 215)
o
Example layout when using front wide
speakers
This 7.1-channel surround system is the same as a basic 5.1-channel
system but with front wide speakers.
FL
SW C
SL
FR
SR
FWL FWR
For each speaker connection, refer to the following.
0
“Connecting speakers to the speaker terminals” (v p. 42)
0
“Connecting an external power amplifier” (v p. 43)
0
Set “Floor” - “Layout” to “5ch & FW” in the menu when connecting in this
configuration. (v p. 215)
