[_[t]]![.t]][
I
game i
I
_ol? v_oEo:
VIDEO ObT
® @ I

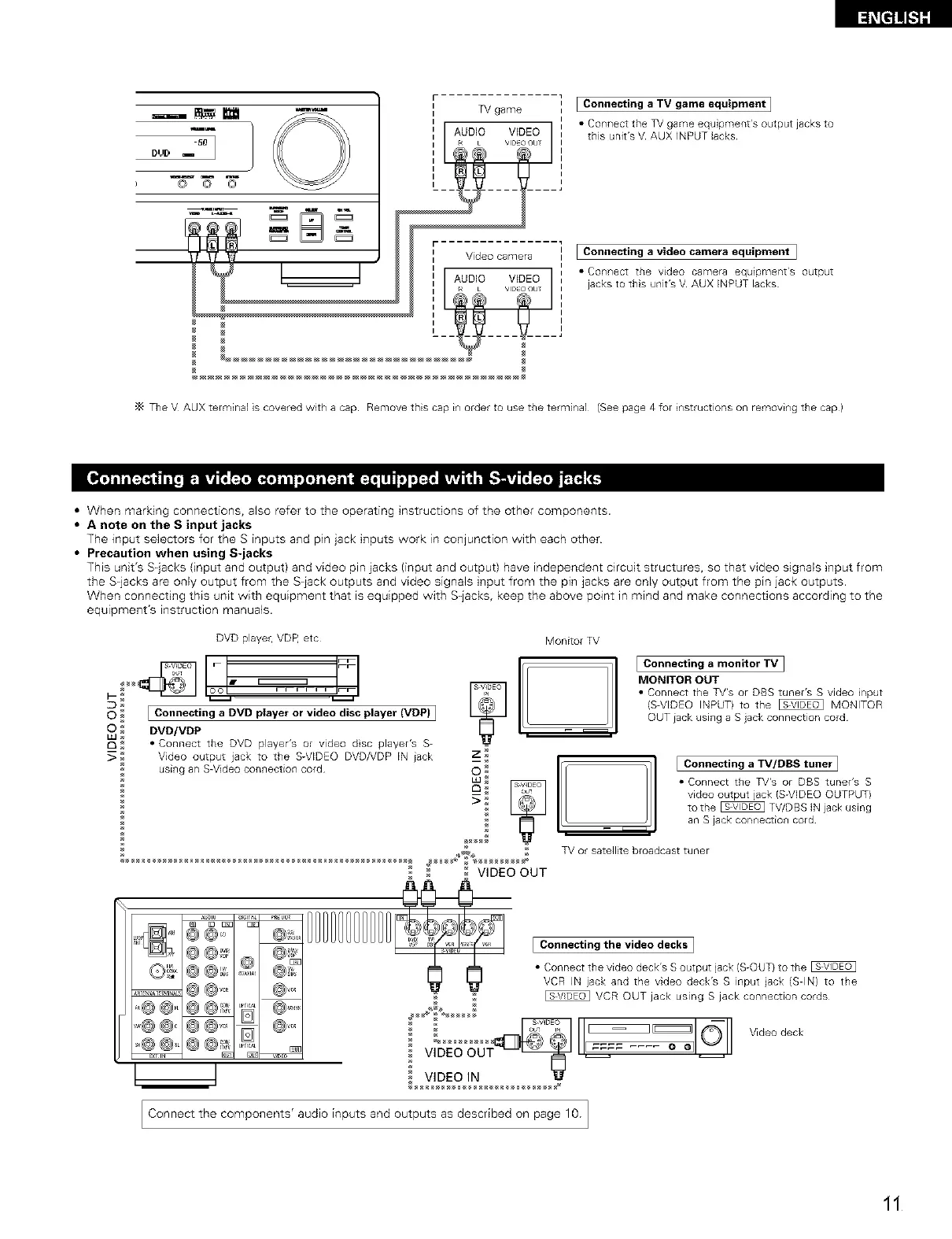

I Connecting a TV game equipment I
• Connect the TV game equipment's output jacks to
this unit's V AUX iNPUT lacks
Connecting a video camera equipment ]
• Connect the video camera equipment's output
jacks to this unit's V AUX INPUT lacks¸
•_ The V AUX terminal is covered with a cap Remove this cap in order to use the terminal (See page 4 for instructions on removing the cap)
• When marking connections, also refer to the operating instructions of the other components.
• A note on the S input jacks
The input selectors for the S inputs and pin jack hqputs work in conjunction with each other
• Precaution when using S-jacks
This unit's S_jacks (input and output) and video pin iacks (input and output) have independent circuit structures, so that video signals input from
the S-jacks are only output from the S_jack outputs and video signals input from the pin jacks are only output from the pin jack outputs.
When connecting this unit with equipment that is equipped with S_jacks, keep the above point in mind and make connections according to the
equipment's instruction manuals.
DVD player, VDR etc Monitor TV
I001 _
[ Connecting a DVD player or video disc player (VDP) I
0 _ DVD/VDP
LL]_
1:3_ • Connect the DVD player's or video disc player's S-
_ Video output jack to the S-VIDEO DVD#?DP IN jack
using an SWideo connection cord
Connecting a monitor TV]
MONITOR OUT
• Connect the TV's or DBS tuner's S video nput
{S-VIDEO INPUT) to the _ MONITOR
OUT iack using a S jack connection cord¸
0> _: _ I [ Connecting a TV/DBS tuner]
Ua_ _ • Connect the TV's or DBS tuner's S
-- _ video output jack IS-VIDEO OUTPUT)
tothe _ TV/DBS IN jack using
an S jack connection cord
_ _ TV or satellite broadcast tuner
VIDEO OUT
_,Hill @@_
.... @@s'_ _ _ _ I Connecting the video decks I
@!? @@_ @ _ ! • Connect the video deck's S output jack {S-OUT} to the _
....... _0_ ] _ VCR INjackandthevideodeck'sSinputjack(SdN) to the
................. @ @_ @a _ _ _ VCR OUT jack using S jack connection cords
"@@@ [] ' = V,0eodeck
VIDEO IN
Connect the components' audio inputs and outputs as described on page 10 ]
11
