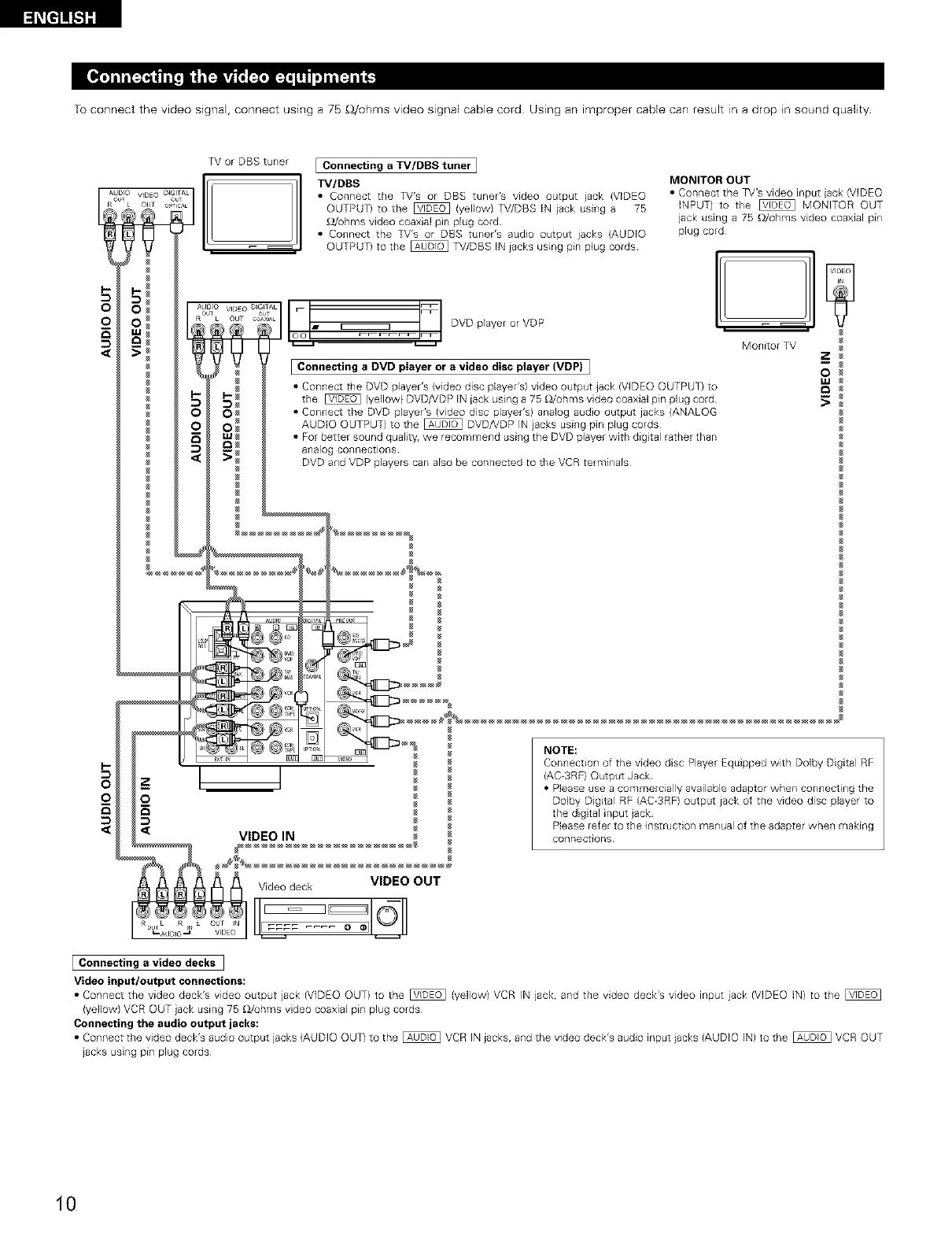

To connect the video signal, connect using a 75 _/ohms video signal cable cord Using an improper cable can result in a drop in sound quality.
TV or DBS tuner
[ Connecting a TV/DBS tuner I
TV/DBS
• Connect the TV's or DBS tuner's video output jack (VIDEO
OUTPUT) to the _ (yellow) TV/DBS IN jack using a 75
£_/ohms video coaxial pin plug cord
• Connect the TV's or DBS tuner's audio output jacks (AUDIO
OUTPUT) to the _ TV/DBS IN jacks using pin plug cords
io_o Lm _ _ DVD player or VDP
I Connecting a DVD player or a video disc player (VDP} I
• Con+lect the DVD player's (video disc player's) video output jack (VIDEO OUTPUT) to
the _ (yellow) DVD/VDP IN jack using a 75 _/ohms video coaxial pin plug cord
• Connect the DVD playeE's (video disc player's) analog audo output jacks (ANALOG
AUDIO OUTPUT) to the _ DVD/VDP IN jacks using pin plug cords
• For better sound quality, we recommend using the DVD player with dig tal rather than
analog connections
DVD and VDP players can also be connected to the VCR terminals
MONITOR OUT
• Connect the TV's video input jack (VIDEO
INPUT) to the _ MONITOR OUT
jack using a 75 _/ohms video coaxial pin
plug cord
Monitor TV
_z
O
I,M
12
VIDEO IN
NOTE:
Con+_ectio+_of the video dsc Player Equipped with Dolby Digital RF
(AC-3RF) Output Jack
• Please use a commercially available adaptor when connecting the
Dolby Digital RF (AC+3RF) output jack of the video disc player to
the dig tal input jack
Please refer to the instruction manual of the adapter when making
connections
IConnecting a video decks ]
Video input/output connections:
• Connect the video deck's video output jack (VIDEO OUT) to the _ (yellow) VCR IN jack, and the video deck's video input jack (VIDEO IN) to the
(yellow) VCR OUT jack using 75 _Z/uhms video coaxial pin plug cords
Connecting the audio output jacks:
• Co+lnect the video deck's audio output jacks (AUDIO OUT) to the _ VCR IN jacks, and the video deck's audio input jacks (AUDIO IN) to the _ VCR OUT
jacks using pin plug cords
10
