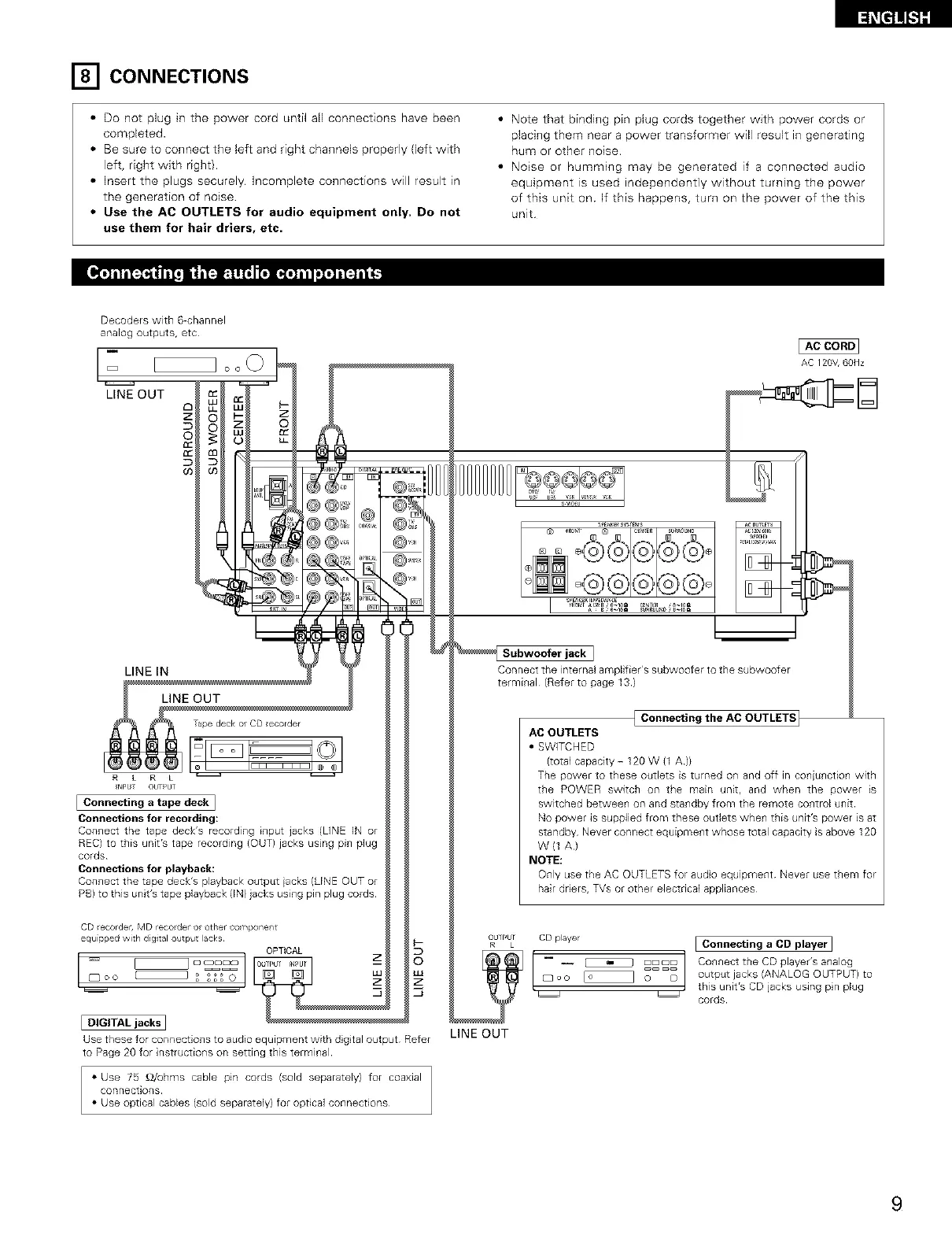

[] CONNECTIONS
• Do not plug in the power cord until all connections have been
completed.
• Be sure to connect the left and right channels properly (left with
left, right with right}.
• Insert the plugs securely Incomplete connections will result in
the generation of noise
• Use the AC OUTLETS for audio equipment only, Do not
use them for hair driers, etc.
• Note that binding pin plug cords together with power cords or
placing them near a power transformer will result in generating
hum or other noise.
• Noise or humming may be generated if a connected audio
equipment is used independently without turning the power
of this unit on If this happens, turn on the power of the this
unit
Decoders with 6-channel
analog outputs, etc
m
D
LINE OUT
)74
_NpbT OU r_,ul
Connections for recording:
Connect the tape deck's recording_i_lput jacks (DNE IN or
REC) to this unit's tape recording (OUT) jacks usng pin plug
cords
Connections for playback:
Cor,_ect the tape deck's playback output iacks (DNE OUT or
PB) to this unit's tape playback (IN} jacks using pin plug cords
CD recorder, MD recorderor other co ¥,pone/t
equipped with digital output lacks __
OPTICAL
Use these for connections to audio equipment with dig tal output Refer
to Page 20 for instruction,s on setting this terminal
J
Connect the internal amplifier's subwoofer to the subwoofer
terminal (Refer to page 13)
AC 120V,60Hz
{ Connecting the AC OUTLETS_
AC OUTLETS
• SWITCHED
(total capacity - 120 W {1 A)}
The poweE to these outlets is turned o_ and off in co_iu_ctio_ with
the POWER switch on the main unit, and when the power is
switched betwee_ on and sta_dby from the remote co_trol unit
No power is supplied from these outlets whe_ this unit's power is at
standby Never connect equipme_t whose total capacity is above 120
W (1 A)
NOTE:
Only use the AC OUTLETS for audo equipment Never use them for
hair driers, TVs or other electrical appliances
OUlRr,urL CD player [ Connecting a CD player]
j J
i-- ConnecttheCDp, ye,sa0alog
o o [o ] _ D output jacks (ANALOG OUTPUT) to
, this unit's CD jacks using pin plug
_ cords¸
LINE OUT
• Use 75 £_/ohms cable pin cords (sold separately/ for coaxial
connections
• Use optical cables (sold separatelyl for optical connections
9
