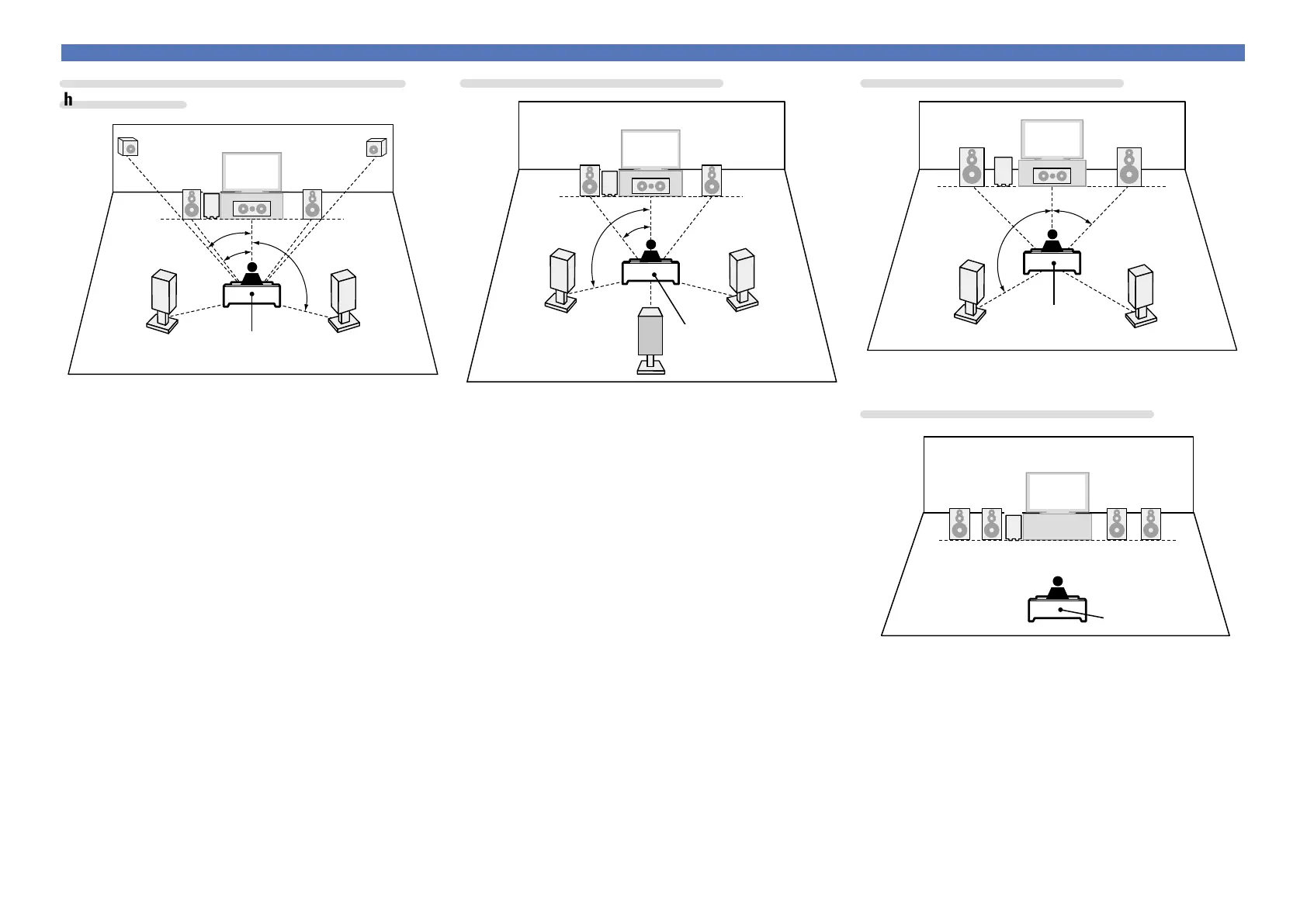

Speaker installation
When 7.1ch speakers are installed using front
height speakers
FL
FR
FHRFHL
C
SL
SR
SW
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 22˚ – 45˚ z3 90˚ – 110˚
GSpeaker abbreviationsH
FL Front speaker (L) SB Surround back speaker
FR Front speaker (R) FHL Front height speaker (L)
C Center speaker FHR Front height speaker (R)
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
When 6.1ch speakers are installed
FL FR
C
SB
SL
SR
SW
z1
z2
Listening position
z1 22˚ – 30˚ z2 90˚ – 110˚
When 5.1ch speakers are installed
FL FR
SW
C
SL
SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
When Front A/B speakers are installed
FR(A) FR(B)
SW
FL(B) FL(A)
Listening position
