Speaker connection
FL FR
SW
wq wq
(R) (L)

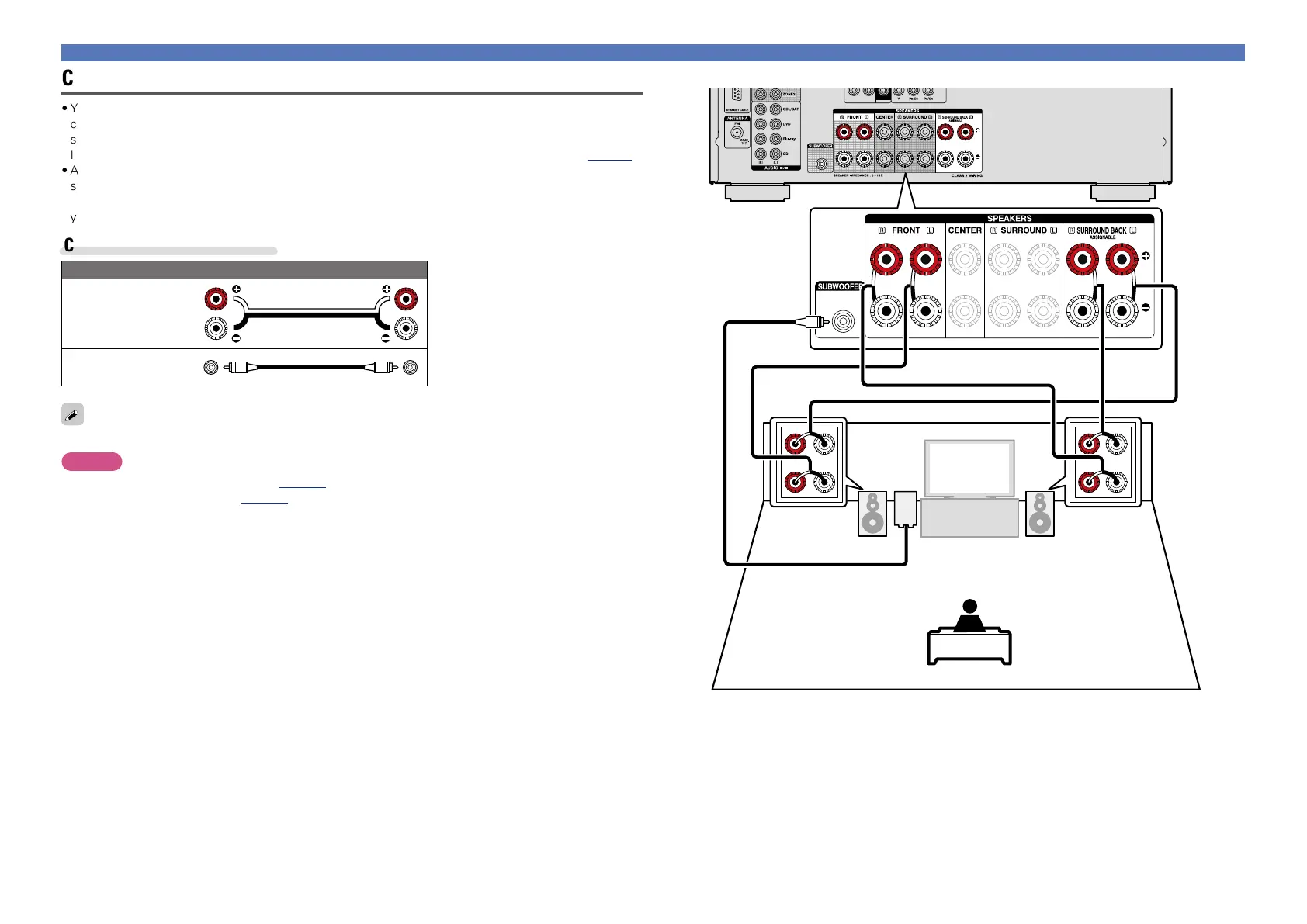

Connecting front speakers with a bi-amp connection
•You cannot use surround back speakers in a bi-amp connection. Use front speakers that support a bi-amp
connection and connect the speakers to the FRONT speaker terminals and the SURROUND BACK
speaker terminals.
In this case, set “Assign Mode” to “Bi-AMP” in steps 3 to 5 for “Set up “Amp Assign”” (vpage85).
•A bi-amp connection is to connect separate amplifiers to the tweeter terminals and woofer terminals of
speakers compatible with the bi-amp function. This prevents the back electromotive force (returned force
without output) of the woofer sent to the tweeter, which affects the sound quality of the tweeter, and
you can enjoy playback with higher-quality sound.
Cables used for connections
Audio cable (sold separately)
Speaker
cable
Subwoofer
cable
For multichannel playback, connect front, center, surround, and surround back speakers and a subwoofer.
NOTE
•For speaker cable connections, see page77.
•For speaker impedance , see page77.
•When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the
speaker’s woofer and tweeter terminals.
To Next Page
