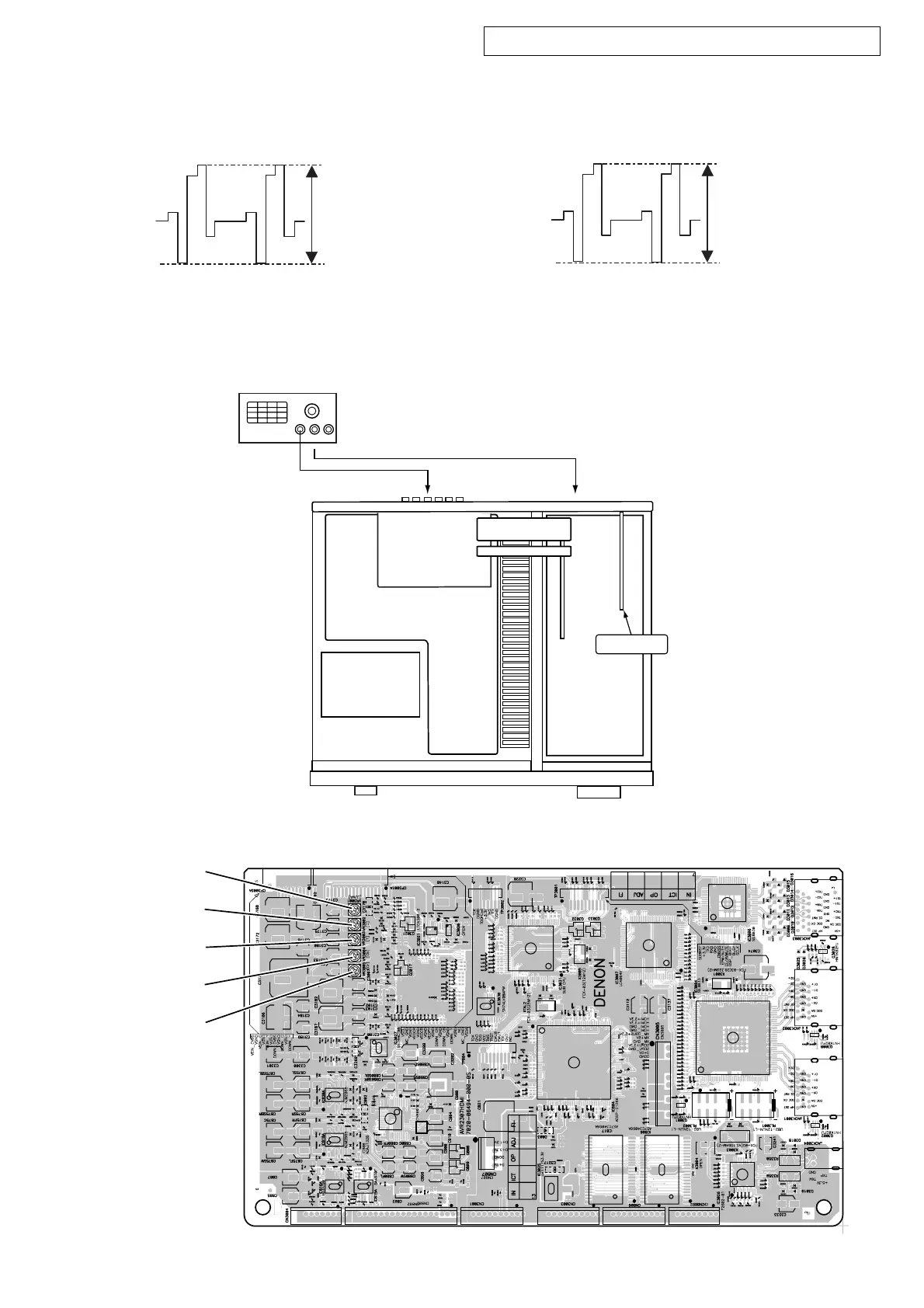

(c) PR/CR 信号レベル
調整個所 ： HDMI UNIT VR3005
調整値 ： 525 ± 10ｍV
波形
PR/CR
COMPONENTOUT の PR/CR 信号レベル
(c) Target, P
R/CR-signal
Point : HDMI UNIT VR3005
Adjustment Value : *525 ± 10mV
Waveform
* : 486 ± 10mV for U.S.A. & Canada model
HDMI UNIT
PR/CR-signal COMPONENT OUT
PR/CR
Oscilloscope
COMPONENT VIDEO
MONITOR OUT
(Y,P
B /C B ,P R /C R )
S-VIDEO
MONITOR OUT
(Y,C)
HDMI UNIT
VR3001 S-Y
VR3002 S-C
VR3003 Y
VR3004 P
B /C B
VR3005 P R /C R
