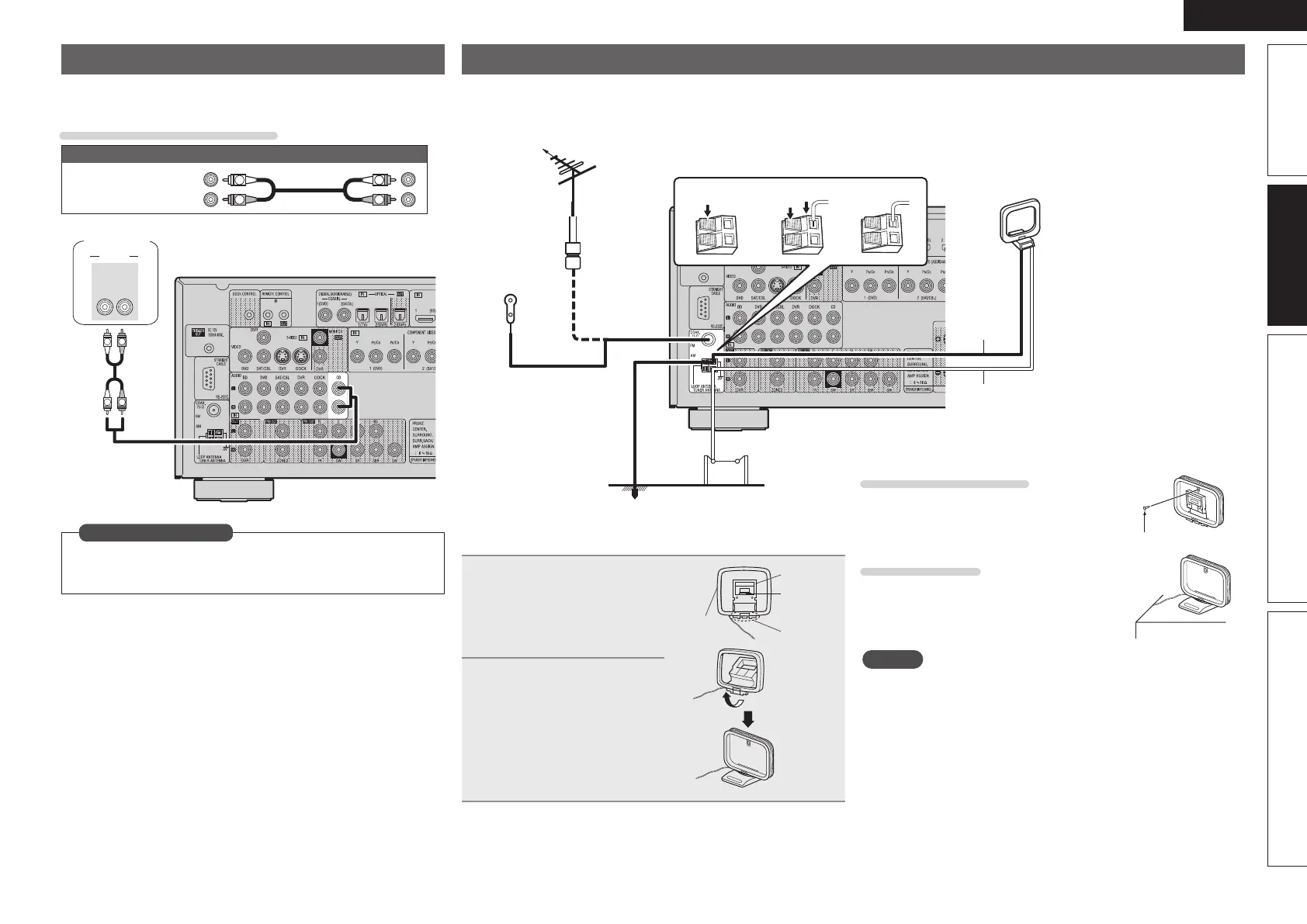

Connecting a CD player
• You can enjoy CD sound.
• Select the connector to use and connect the device.
Cables used for connections
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
R
L
R
L
AUDIO
AUDIO
RL
OUT
CD player
Set this to change the digital input connector to which the input
source is assigned.
“Input Assign” (vpage49)
in Set as Necessary
Connecting an antenna
• Connect the FM antenna or AM loop antenna supplied with the unit to enjoy listening to radio broadcasts.
• After connecting the antenna and receiving a broadcast signal (vpage25 “Listening to FM/AM broadcasts”), fix the antenna with tape in a
position where the noise level becomes minimal.
w eq
FM outdoor
antenna
Direction of broadcasting station
75 Ω Coaxial
cable
Ground
AM outdoor
antenna
AM loop antenna
(supplied)
Black
White
FM indoor
antenna
(supplied)
n AM loop antenna assembly
1
Put the stand section
through the bottom of
the loop antenna from
the rear and bend it
forward.
Stand
Square
hole
Projecting
part
Loop
antenna
2
Insert the projecting part
into the square hole in
the stand.
n Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Nail, tack, etc.
Standing alone
Use the procedure shown left to assemble.
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
• If the signal has noise interference, connect the ground terminal
(GND) to reduce noise.
• If you are unable to receive a good broadcast signal, we recommend
installing an outdoor antenna. For details, inquire at the retail store
where you purchased the unit.

Denon AVR-2311 Specifications

General

Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (20-20KHz@8 Ohm)	135 W
HDMI in	6
Audio (L/R) in	8
Composite video in	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
12V trigger	Yes
Connectivity technology	Wired
Speakers connectivity type	-
Ethernet LAN	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Supported video modes	1080p
Display	LCD
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	1.9 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	381 mm
Width	434 mm
Height	171 mm
Weight	11200 g
