Connect
Front A/B connection
The second set of front speakers can be connected to the SURR.
BACK/AMP ASSIGN terminals.
In this case, set “Amp Assign” of “Set up speakers” (vpage37) to
“Front B”.
FL(A)FL(B) FR(B)FR(A)
SW
For surround playback of a multichannel source, if you connect the
center speaker, surround speakers and subwoofers, 5.1-channel
playback is available.
Front speakers can be used separately, depending on the speaker’s
specifications or playback source such as front speakers (A) for
multichannel playback and front speakers (B) for 2-channel playback
(vpage60 “Front Speaker Setup”).
For speaker impedance and speaker cable connections, see page 4.

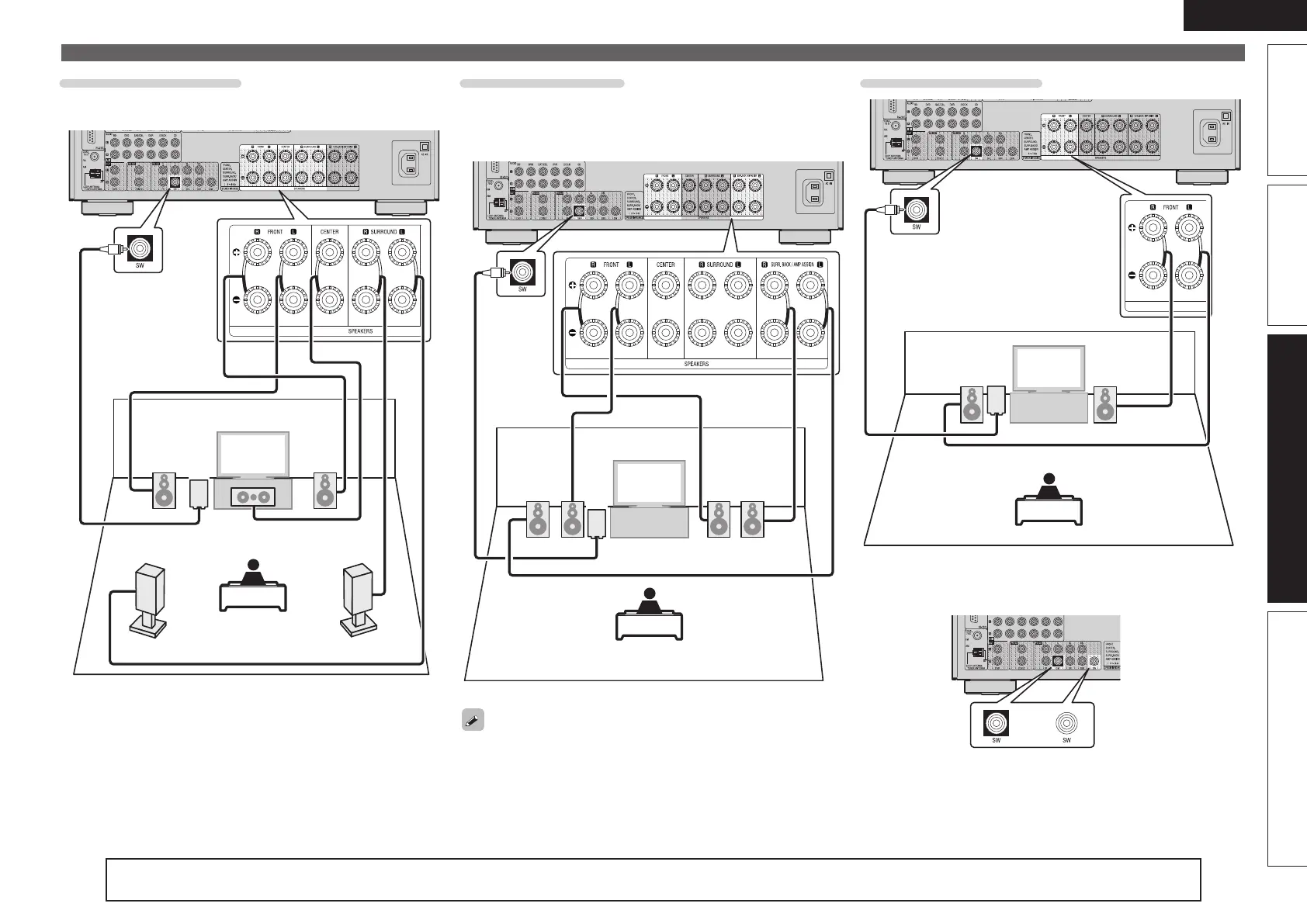

5.1-channel connection
For 5.1-channel playback, set “Amp Assign” in “Set up speakers”
(vpage37) to “Normal”.
FL FR
C
SL
SR
SW
2.1-channel connection
FL FR
SW
n For connecting two subwoofers
Two subwoofers can be connected to this unit.
The same signal is output from each subwoofer terminal.
