—EE
ORS-810
LT
NSS
TOT
ee
om
Pad
ac
ag
Oe
Bae
ad]
18

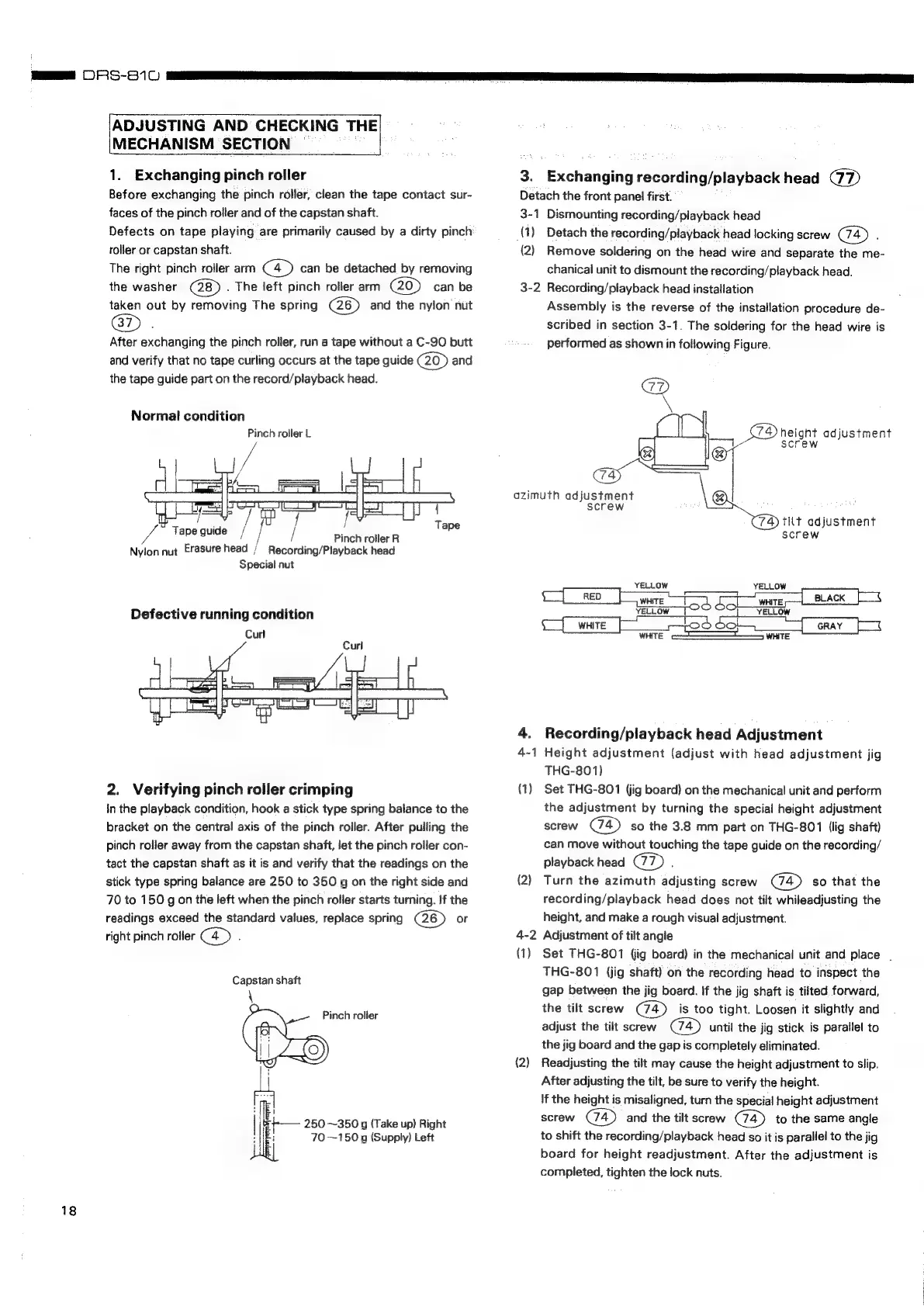

ADJUSTING
AND
CHECKING
THE
MECHANISM
SECTION
1.
Exchanging
pinch
roller
Before
exchanging
the
pinch
roller,
clean
the
tape
contact
sur-
faces
of
the
pinch
roller
and
of
the
capstan
shaft.
Defects
on
tape
playing
are
primarily
caused
by
a
dirty
pinch
roller
or
capstan
shaft.
The
right
pinch
roller
arm
can
be
detached
by
removing
the
washer
.
The
left
pinch
rolier
arm
can
be
taken
out
by
removing
The
spring
and
the
nylon
nut
&
exchanging
the
pinch
roller,
run
a
tape
without
a
C-90
butt
and
verify
that
no
tape
curling
occurs
at
the
tape
guide
and
the
tape
guide
part
on
the
record/playback
head.
Normal
condition
Pinch
roller
L
Tape
guide
/
/
/
if
/
Pinch
roller
R
Nylon
nut
Erasure
head
/
Recording/Playback
head
Special
nut
Defective
running
condition
Curl
2.
Verifying
pinch
roller
crimping
in
the
playback
condition,
hook
a
stick
type
spring
balance
to
the
bracket
on
the
central
axis
of
the
pinch
roller.
After
pulling
the
pinch
rolier
away
from
the
capstan
shaft,
let
the
pinch
roller
con-
tact
the
capstan
shaft
as
it
is
and
verify
that
the
readings
on
the
stick
type
spring
balance
are
250
to
350
g
on
the
right
side
and
70
to
150
g
on
the
left
when
the
pinch
roller
starts
turning.
If
the
readings
exceed
the
standard
values,
replace
spring
or
right
pinch
roller
C4)
:
Capstan
shaft
250
~350
g
(Take
up)
Right
70~150
g
(Supply)
Left
3.
Exchanging
recording/playback
head
aD
Detach
the
front
panel
first.
3-1
Dismounting
recording/playback
head
(1)
Detach
the
recording/playback
head
locking
screw
:
(2)
Remove
soldering
on
the
head
wire
and
separate
the
me-
chanical
unit
to
dismount
the
recording/playback
head.
3-2
Recording/playback
head
installation
Assembly
is
the
reverse
of
the
installation
procedure
de-
scribed
in
section
3-1.
The
soldering
for
the
head
wire
is
performed
as
shown
in
following
Figure.
\
qi
@®Dheignt
adjustment
a
screw
azimuth
adjustment
screw
tilt
adjustment
screw
YELLOW
YELLOW
Co]
reo
WHITE
=yle
ex
|
BLACK
|
pf
YELLOW
YELLOW
(|
WHITE
O20
00
GRAY
[__1
WHITE
=
WHITE
4.
Recording/playback
head
Adjustment
Height
adjustment
(adjust
with
head
adjustment
jig
THG-801)
(1)
Set
THG-801
(jig
board)
on
the
mechanical
unit
and
perform
the
adjustment
by
turning
the
special
height
adjustment
screw
so
the
3.8
mm
part
on
THG-8011
(lig
shaft)
can
move
without
touching
the
tape
guide
on
the
recording/
playback
head
i
(2)
Turn
the
azimuth
adjusting
screw
so
that
the
recording/playback
head
does
not
tilt
whileadjusting
the
height,
and
make
a
rough
visual
adjustment.
4-2
Adjustment
of
tilt
angle
(1)
Set
THG-801
(jig
board)
in
the
mechanical
unit
and
place
.
THG-801
(jig
shaft)
on
the
recording
head
to
inspect
the
gap
between
the
jig
board.
If
the
jig
shaft
is
tilted
forward,
the
tilt
screw
is
too
tight.
Loosen
it
slightly
and
adjust
the
tilt
screw
until
the
jig
stick
is
parallel
to
the
jig
board
and
the
gap
is
completely
eliminated.
(2)
Readjusting
the
tilt
may
cause
the
height
adjustment
to
slip.
After
adjusting
the
tilt,
be
sure
to
verify
the
height.
If
the
height
is
misaligned,
turn
the
special
height
adjustment
screw
and
the
tilt
screw
to
the
same
angle
to
shift
the
recording/playback
head
so
it
is
parallel
to
the
jig
board
for
height
readjustment.
After
the
adjustment
is
completed,
tighten
the
lock
nuts.
£
t
