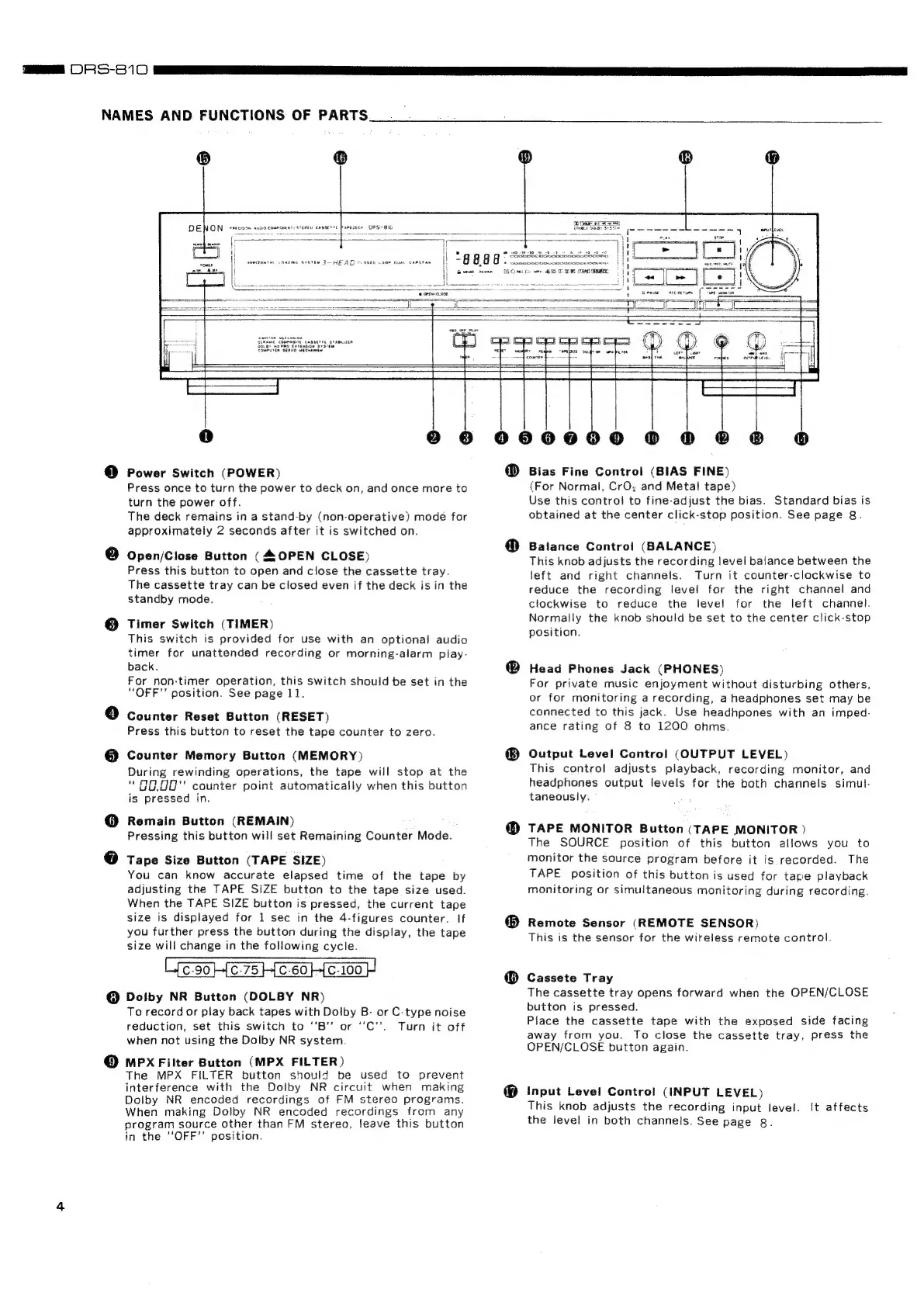

NAMES AND. FUNCTIONS OF PARTS
i or I i Fc a i |
@ Power Switch (POWER)
Press once to turn the power to deck on, and once more to
turn the power off.
The deck remains in a stand-by (non-operative) mode for
approximately 2 seconds after it is switched on.
Open/Close Button (“OPEN CLOSE)
Press this button to open and close the cassette tray.
The cassette tray can be closed even if the deck is in the
standby mode. ;
Timer Switch (TIMER)
This switch is provided for use with an optional audio
timer for unattended recording or morning-alarm play-
back.
For non-timer operation, this switch should be set in the
“OFF"’ position. See page 11.
© counter Reset Button (RESET)
Press this button to reset the tape counter to zero.
@ Counter Memory Button (MEMORY)
During rewinding operations, the tape will stop at the
“ 90.00" counter point automatically when this button
is pressed in.
Remain Button (REMAIN)
Pressing this button will set Remaining Counter Mode.
Tape Size Button (TAPE SIZE)
You can know accurate elapsed time of the tape by
adjusting the TAPE SIZE button to the tape size used.
When the TAPE SIZE button is pressed, the current tape
size is displayed for 1 sec in the 4-figures counter. If
you further press the button during the display, the tape
size will change in the following cycle.
L[c-s0} {6-75} {6-60}-[c-100 H
Dolby NR Button (DOLBY NR)
To record or play back tapes with Dolby B- or C-type noise
reduction, set this switch to ‘‘B’’ or ‘‘C’’. Turn it off
when not using the Dolby NR system.
MPX Filter Button (MPX FILTER )
The MPX FILTER button should be used to prevent
interference with the Dolby NR circuit when making
Dolby NR encoded recordings of FM stereo programs.
When making Dolby NR encoded recordings from any
program source other than FM stereo, Jeave this button
in the '‘OFF’’ position.
0600000 0 0®© ® ® ©
@ Bias Fine Control (BIAS FINE)
(For Normal, CrO, and Metal tape)
Use this control to fine-adjust the bias. Standard bias is
obtained at the center click-stop position. See page 8.
Balance Control (BALANCE)
This knob adjusts the recording level balance between the
left and right channels. Turn it counter-clockwise to
reduce the recording level for the right channel and
clockwise to reduce the level for the left channel.
Normally the knob should be set to the center click-stop
position.
Head Phones Jack (PHONES)
For private music enjoyment without disturbing others,
or for monitoring a recording, a headphones set may be
connected to this jack. Use headhpones with an imped-
ance rating of 8 to 1200 ohms.
Output Level Control (QUTPUT LEVEL)
This control adjusts playback, recording monitor, and
headphones output levels for the both channels simul-
taneously.
TAPE MONITOR Button (TAPE MONITOR )
The SOURCE position of this button allows you to
monitor the source program before it is recorded. The
TAPE
position
of
this
button
is
used
for
tape
playback
monitoring or simultaneous monitoring during recording.
Remote Sensor (REMOTE SENSOR)
This is the sensor for the wireless remote control.
Cassete Tray
The cassette tray opens forward when the OPEN/CLOSE
button is pressed.
Place the cassette tape with the exposed side facing
away from you. To close the cassette tray, press the
OPEN/CLOSE button again.
Input Level Control (INPUT LEVEL)
This knob adjusts the recording input level. It affects
the level in both channels. See page 8.
