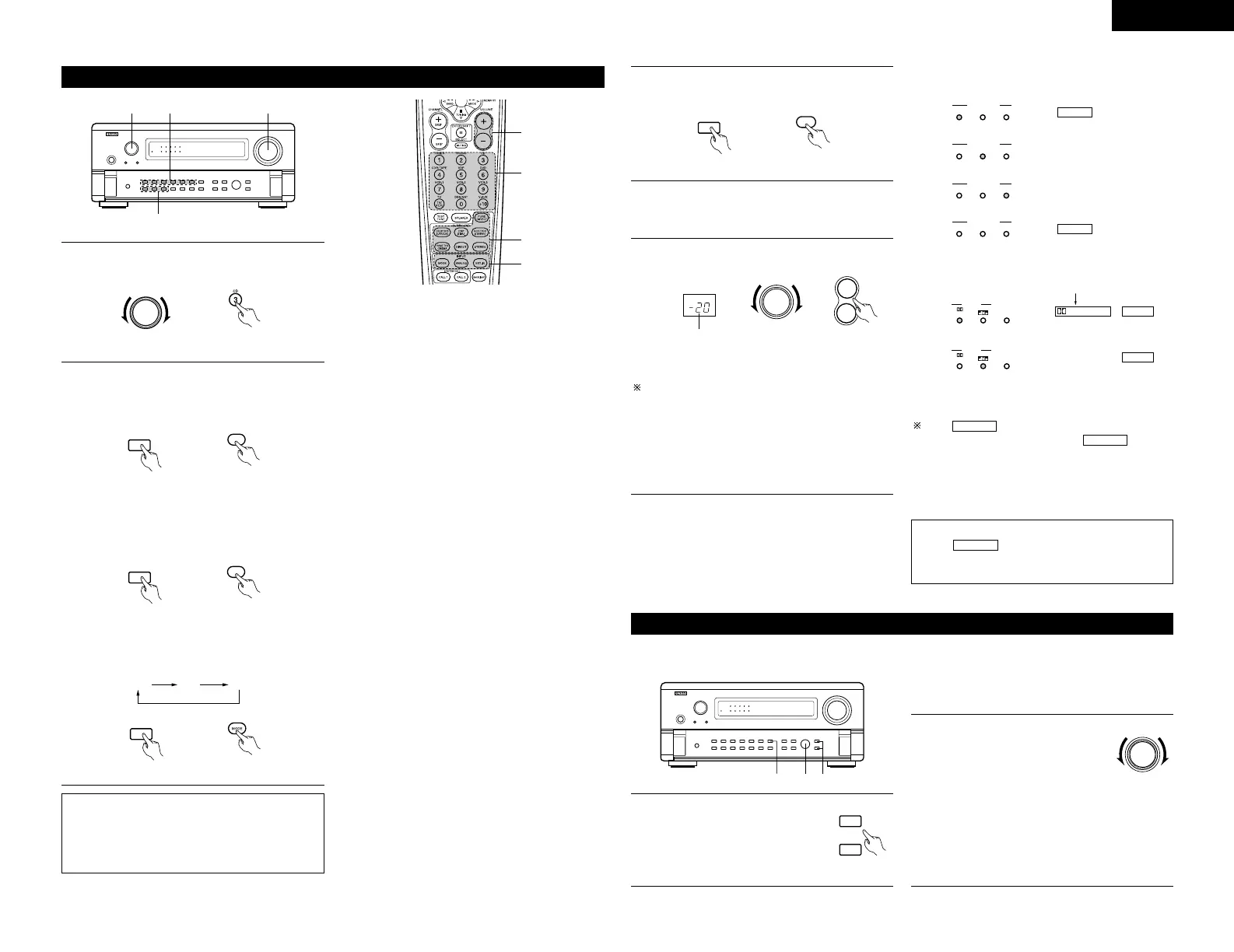

1
Select the input source to be played.
Example: CD
(Main unit) (Remote control unit)
• Selecting the external input (EXT. IN) mode
Press the EXT. IN (on the EXT. IN button on
the remote control unit) to switch the external
input.
(Main unit) (Remote control unit)
• Selecting the AUTO, PCM and DTS modes
The mode switches as shown below each
time the INPUT MODE button is pressed.
Input mode selection function
Different input modes can be selected for the
different input sources. The selected input modes for
the separate input sources are stored in the memory.
q AUTO (All auto mode)
In this mode, the types of signals being input to
the digital and analog input jacks for the selected
input source are detected and the program in the
AVC-A11SR’s surround decoder is selected
automatically upon playback. This mode can be
selected for all input sources other than PHONO.
The presence or absence of digital signals is
detected, the signals input to the digital input
jacks are identified and decoding and playback are
performed automatically in DTS, Dolby Digital or
PCM (2 channel stereo) format. If no digital signal
is being input, the analog input jacks are selected.
Use this mode to play Dolby Digital signals.
w PCM (exclusive PCM signal playback mode)
Decoding and playback are only performed when
PCM signals are being input.
Note that noise may be generated when using this
mode to play signals other than PCM signals.
e DTS (exclusive DTS signal playback mode)
Decoding and playback are only performed when
DTS signals are being input.
r ANALOG (exclusive analog audio signal playback
mode)
The signals input to the analog input jacks are
decoded and played.
t EXT. IN (external decoder input jack selection
mode)
The signals being input to the external decoder
input jacks are played without passing through the
surround circuitry.
NOTE:
• Note that noise will be output when CDs or LDs
recorded in DTS format are played in the “PCM” or
“ANALOG” mode. Select the “DTS” mode when
playing signals recorded in DTS from a laser disc
player or CD player.
Note on playing a source encoded with DTS
• Noise may be generated at the beginning of
playback and while searching during DTS
playback in the AUTO mode. If so, play in the
DTS mode.
2
Select the input mode.
• Selecting the analog mode
Press the ANALOG button to switch to the
analog input.
(Main unit) (Remote control unit)
3
Select the play mode.
Example: Stereo
(Main unit) (Remote control unit)
The volume can be adjusted within the range of
–70 to 0 to 18 dB, in steps of 1 dB. However, when
the channel level is set as described on page 14 or
page 27, if the volume for any channel is set at +1
dB or greater, the volume cannot be adjusted up to
18 dB. (In this case the maximum volume
adjustment range is “18 dB — (Maximum value of
channel level)”.)
Input mode when playing DTS sources
• Noise will be output if DTS-compatible CDs or LDs
are played in the “ANALOG” or “PCM” mode.
When playing DTS-compatible sources, be sure to
connect the source component to the digital input
jacks (OPTICAL/COAXIAL) and set the input mode to
“AUTO” or “DTS”.
4
Start playback on the selected component.
• For operating instructions, refer to the
component’s manual.
5
Adjust the volume.
(Main unit) (Remote control unit)The volume level is
displayed on the
master volume level
display.
Input mode display
ANALOG
ANALOG
AUTO
PCM
DTS
INPUT MODE
AUTO
PCM
DTS
INPUT MODE
AUTO
PCM
DTS
INPUT MODE
AUTO
PCM
DTS
INPUT MODE
• In the AUTO mode
• In the PCM mode
• In the DTS mode
• In the ANALOG mode
Input signal display
PRO LOGIC
DIGITAL
SIGNAL
PURE
DIRECT
PURE
DIRECT
DIGITAL
SIGNAL
DIGITAL
DIGITAL
• DOLBY DIGITAL
• DTS
One of these lights, depending on
the input signal.
The indicator lights when digital signals
are being input properly. If the indicator
does not light, check whether the digital input
component setup (page 15) and connections are
correct and whether the component’s power is
turned on.
DIGITAL
DIGITAL
NOTE:
• The indicator will light when playing
CD-ROMs containing data other than audio
signals, but no sound will be heard.
DIGITAL
2 13
[1] Adjusting the sound quality (tone)
The tone control function will not work in the DIRECT, PURE DIRECT and Home THX Cinema mode.
After starting playback
1
Select the TREBLE or BASS
button.
(Main unit)
2
Adjust as desired with the
SELECT knob.
• To increase the bass or treble:
Turn the control clockwise.
(The bass or treble sound can
be increased to up to +12 dB in steps of 2
dB.)
• To decrease the bass or treble:
Turn the control counter clockwise. (The bass
or treble sound can be decreased to up to –12
dB in steps of 2 dB.)
(Main unit) (Remote control unit)
