Denon AVR-685 - Printed Wiring Board (PWB) Layouts; Main, CPU, Front, and Power Switch Boards

Denon AVR-685
75 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
23
AVR-1705/685
PRINTED WIRING BOARDS

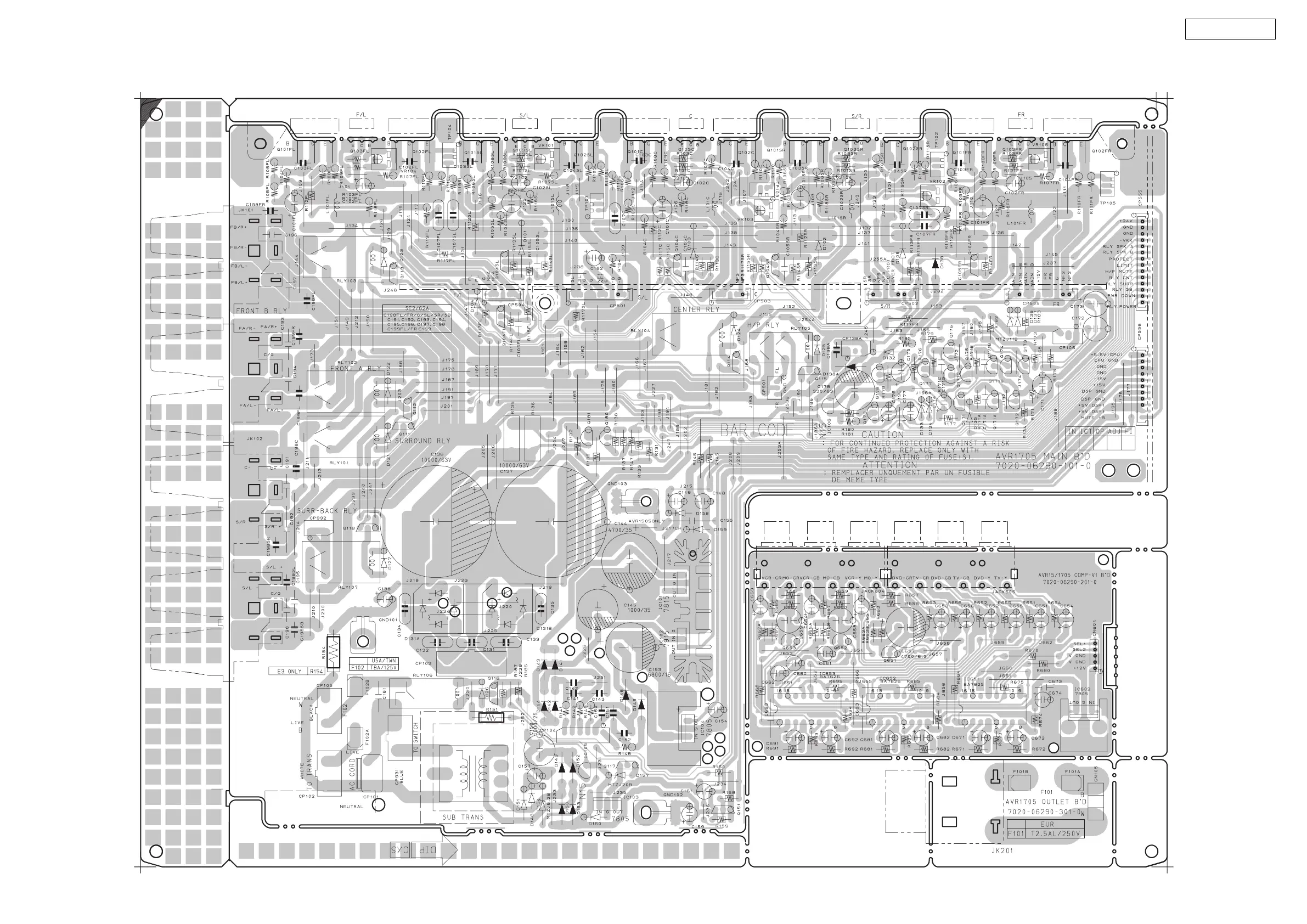

MAIN P.W.B. UNIT
COMPONENT SIDE
