Easy Setup Procedure
7
ENGLISH
ENGLISH

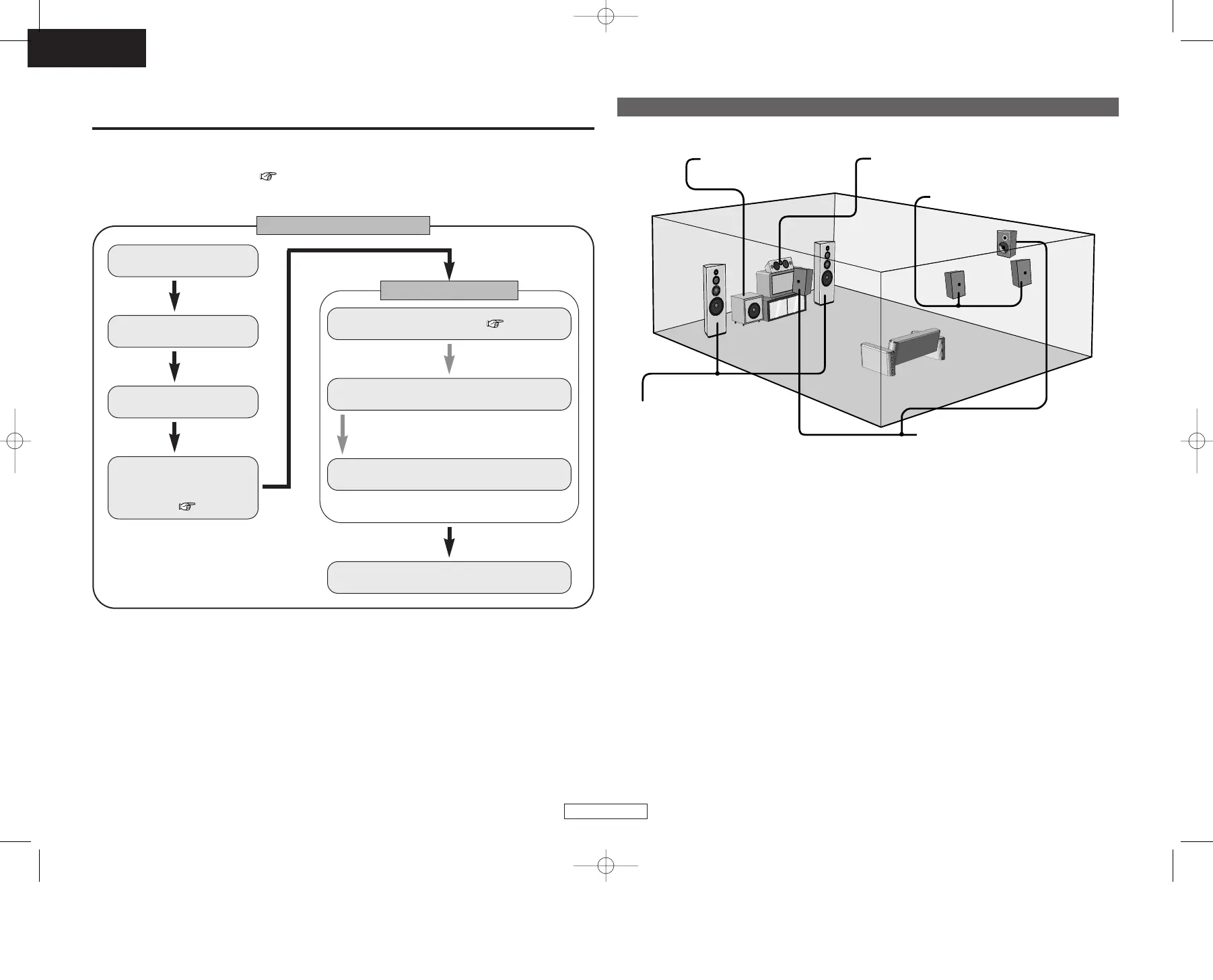

Speaker layout [Basic layout]
Example of basic layout with eight speakers and a monitor.
Subwoofer Center speaker
Surround speaker
Surround back speaker
Front speaker
Set these at the sides of the
monitor or screen with their front
surfaces as flush with the front of
the screen as possible.
• This section contains the basic steps necessary to configure the AVR-687 according to your listening
room environment and the source equipment and loudspeakers you are using.
•To set the sound field manually ( page 45 ~ 47).
Easy to setup flow
Easy Setup Procedure
Auto setup flow
1) Speaker Configuration
2) Distance
3) Channel Level
Connecting a microphone ( page 10).
The measurement of the speakers in the
listening position.
Check of the measurement result.
Placing the speakers.
Connecting the speakers.
Connect the DVD player to
the AVR-687.
Connect the AVR-687’s
monitor output terminal to
the TV’s video input
terminal ( page 9).
Store the measurement result in the memory.
Play a DVD.
To Next Page
