AVR-1708/1508/688/588/488 AVC-1508
5. TRANS

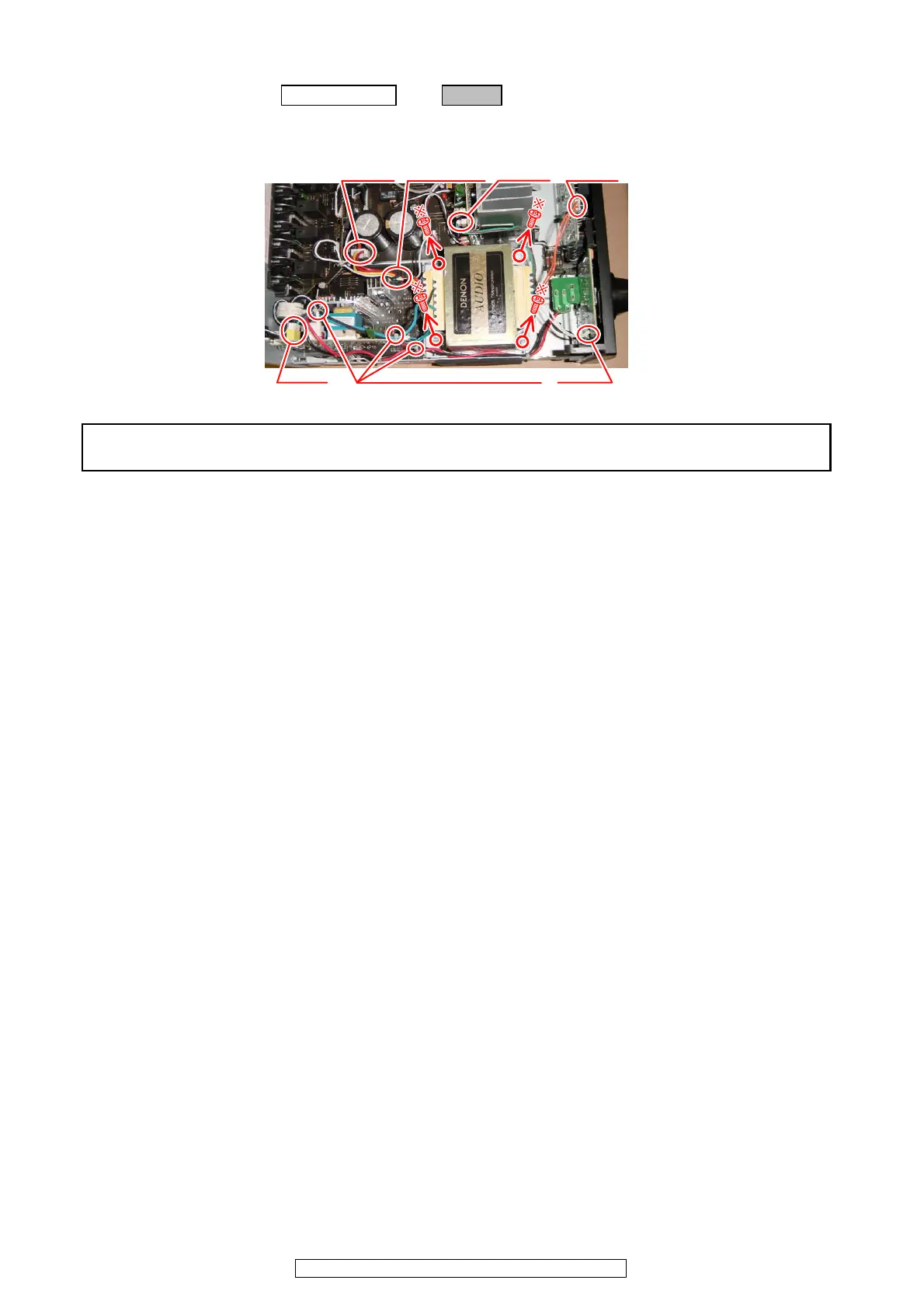

(1) Disconnect the connector wires and remove the screws.（コネクタコードとねじをはずす。）
Proceeding (手順) : CABINET TOP → TRANS
Picture E
Wire clamp band : CUT
Cord holder
CP104
CP402
CP402
CP302
CP105
Please refer to
"EXPLODED VIEW"
for the disassembly method of Trans.
Trans のはずしかたは "EXPLODEDVIEW" を参照してください。
