Denon AVR-688 Service Manual

13
AVR-1708/1508/688/588/488 AVC-1508
2.CHASSIS BACK ASSY

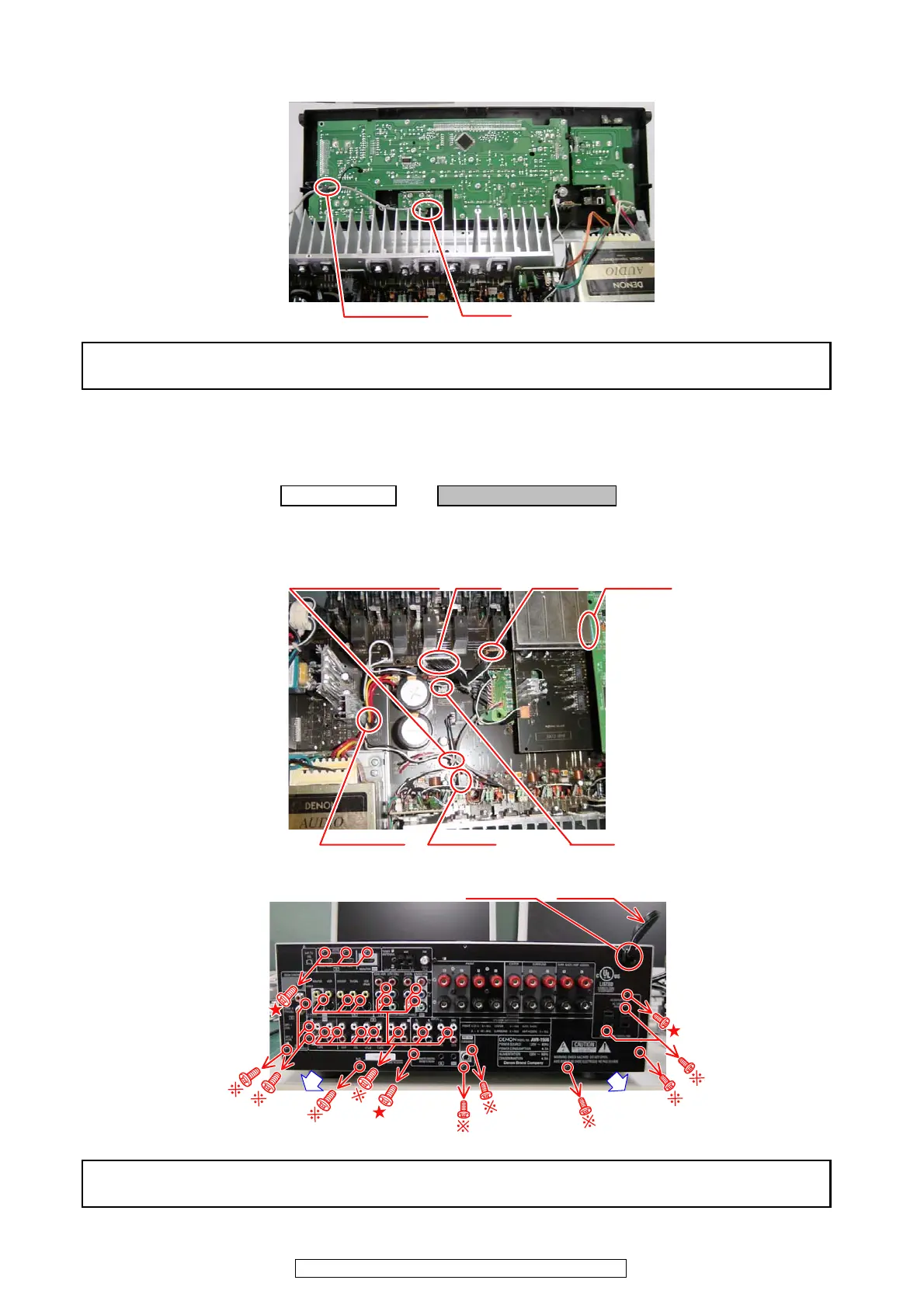

(1) Disconnect the connector wires and unscrew a screw. ( コネクタワイヤーとねじをはずす。)
Picture F
CP306
Cord holder
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in panel front assy.
Panelfrontassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
Proceeding (手順) : CABINET TOP → CHASSIS BACK ASSY
Picture E
CP103
CP101
CP103
CP102
FFC cable
Wire clamp band : CUT
Cord holder
Picture B
Cord bush
AC cord
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in Chassis back assy.
Chassisbackassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
