Specifications
oQ1Q3
Q5 Q4
Q0Q2
Q6
iq
w
t
y
ue r
qDigital audio connectors (OPTICAL / COAXIAL) ········(12, 13, 15)
w VIDEO / S-VIDEO connectors ········································· (12 ~ 14)
e Analog audio connectors (AUDIO) ································ (12 ~ 14)
r EXT. IN connectors ···································································(14)
t REMOTE CONTROL jacks ························································(17)
y PRE OUT connector ··································································(10)
u ZONE2 connectors ···································································(17)
i AC OUTLETS ·············································································(17)
o Power cord ················································································(17)
Q0 Speaker terminals (SPEAKERS) ··············································(10)
Q1 FM/AM antenna terminals (TUNER ANTENNA)····················(16)
Q2 COMPONENT VIDEO connectors ······································(12, 13)
Q3 HDMI connectors ······························································(11 ~ 13)
Q4 XM connector (SAT TU2) ·························································(15)
Q5 SIRIUS connector (SAT TU1) ···················································(15)
Q6 DOCK CONTROL jack ·······························································(13)

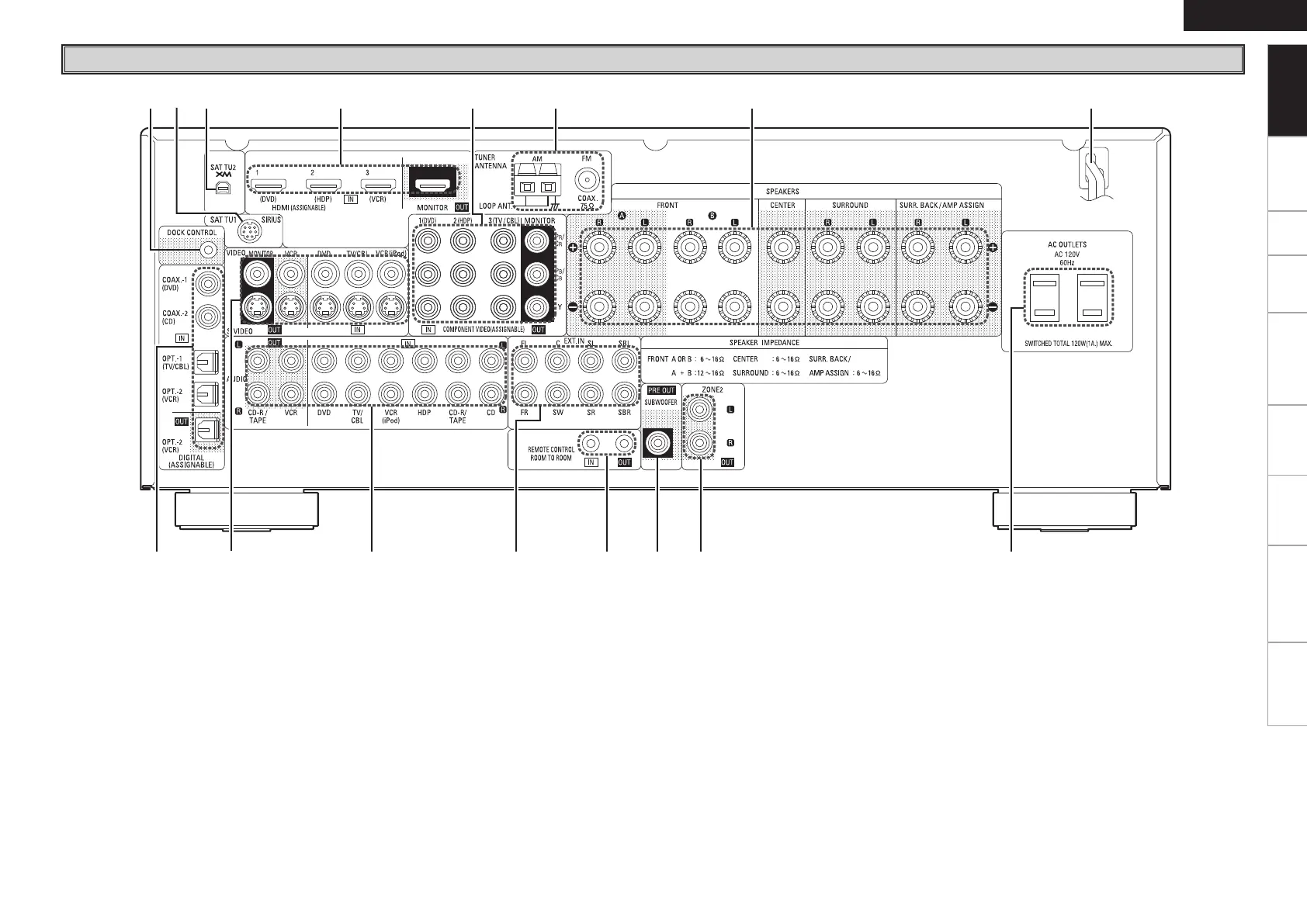

Rear Panel
