SCHEMATIC DIAGRAMS (15/31)
AVR-2808CI / AVR-988 / AVR-2808 / AVC-2808
SCHEMATIC DIAGRAMS (15/31)

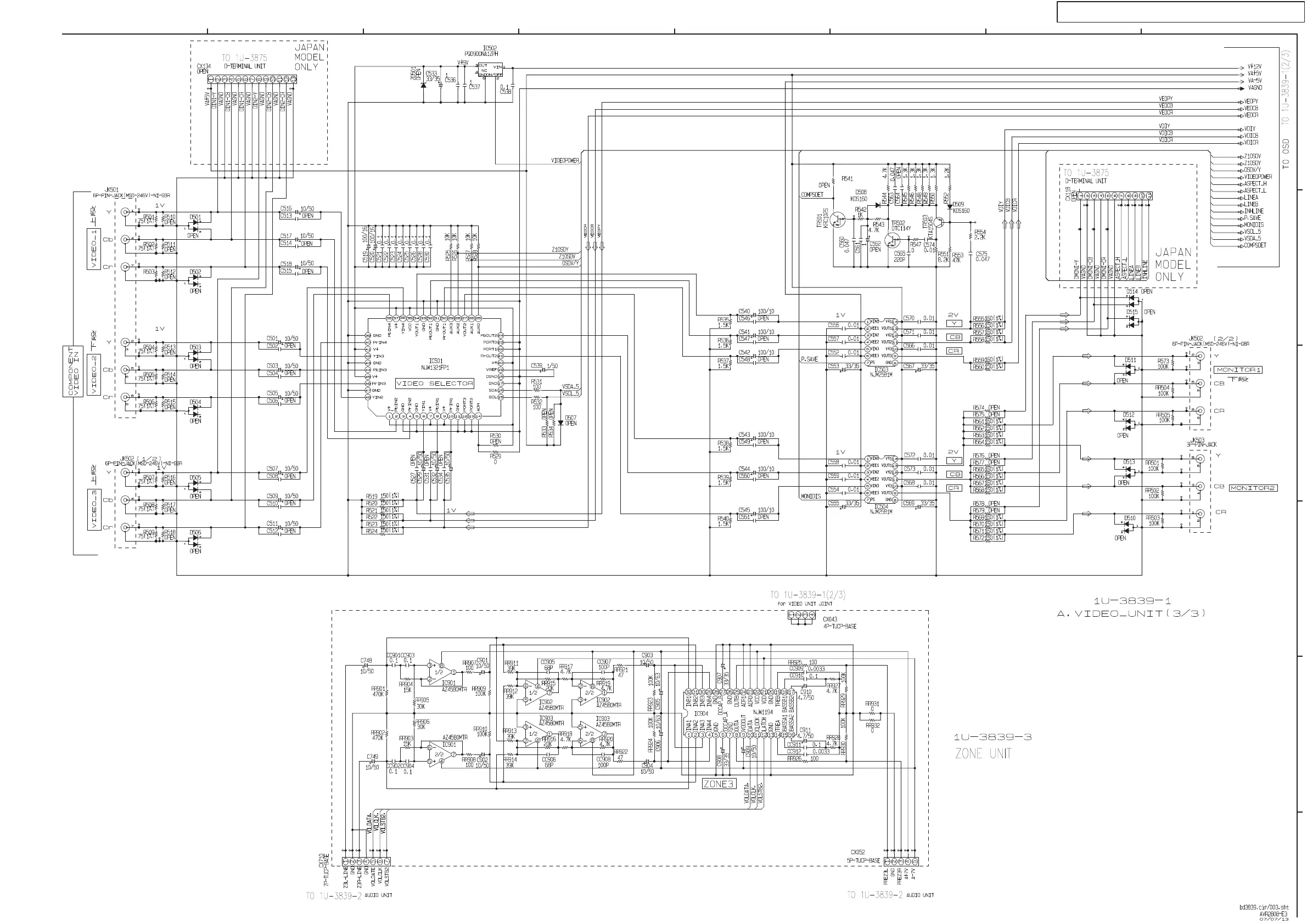

1U-3839 A.AUDIO/VIDEO UNIT (3/4)
1U-3839-1 A.VIDEO UNIT(3/3)
1U-3839-3 ZONE UNIT
