Denon AVR-988 Service Manual

87654321
A
B
C
D
E
F

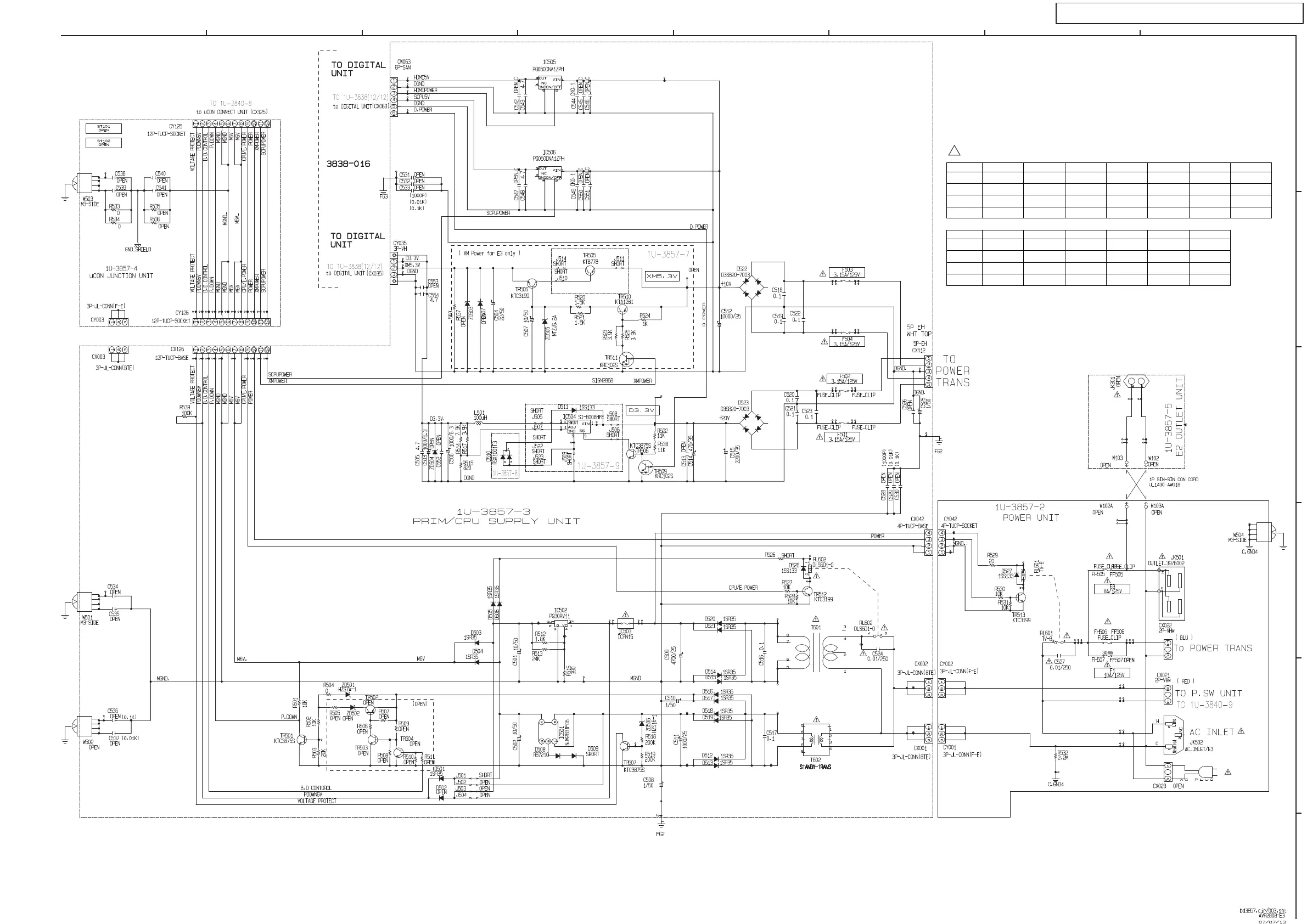

SCHEMATIC DIAGRAMS (30/31)
AVR-2808CI / AVR-988 / AVR-2808 / AVC-2808
SCHEMATIC DIAGRAMS (30/31)
1U-3857 MAIN CPU UNIT (3/3)
1U-3857-2 POWER UNIT
1U-3857-3 PRIM/CPU SUPPLY UNIT
1U-3857-4 uCON JUNCTION UNIT
1U-3857-5 E2 OUTLET UNIT
2
T601 T602 R532 JK501 JK301 FF506 FH506 FF507 FH507
USA
CANADA
00D2336524009 00D2336576109 2.2M AC OUTLET OPEN FUSE CLIP OPEN
EUROPE 00D2336526007 00D2336606105 OPEN OPEN AC OUTLET FUSE CLIP OPEN
CHINA 00D2336528005 00D2336607007 OPEN OPEN OPEN FUSE CLIP OPEN
JAPAN 00D2330703004 00D2330736000 OPEN AC OUTLET OPEN OPEN FUSE HOLDER
F1 F8 F501 F502 F503 F504
USA
CANADA
10A/125V 8A/125V 3.15A/125V 3.15A/125V 3.15A/125V 3.15A/125V
EUROPE T4AL 250V T2.5A 250V T3.15AL 250V T3.15AL 250V T3.15AL 250V T3.15AL 250V
CHINA T4AL 250V OPEN T3.15AL 250V T3.15AL 250V T3.15AL 250V T3.15AL 250V
JAPAN T10A T8A T3.15A T3.15A T3.15A T3.15A
