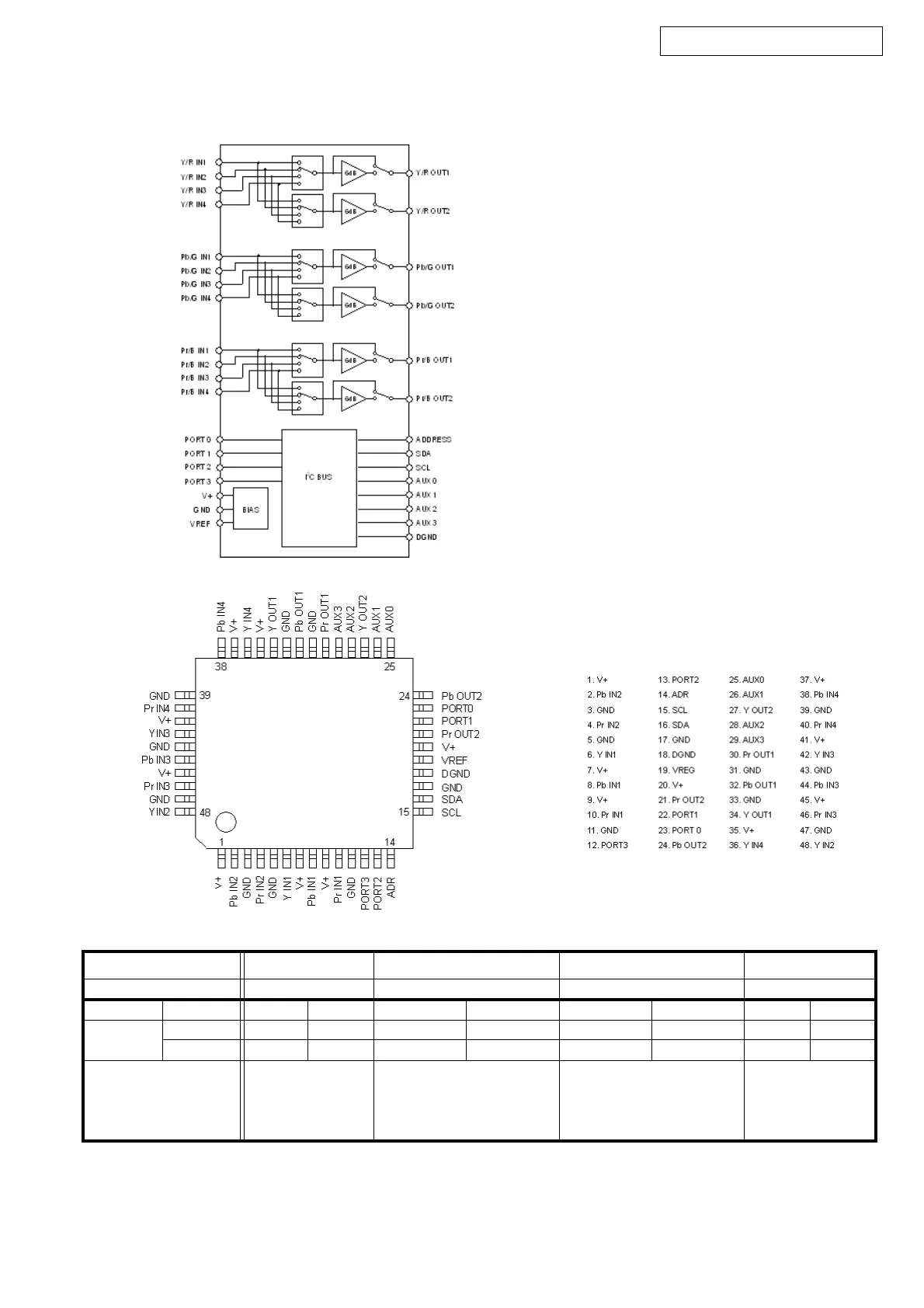

AVR-2808CI / AVR-988
Control Pin Sub VSCL (27pin) VSDA (28pin)
Pin Name AUX0 AUX1 AUX2 AUX3
Signal Name OSD V/Y Z1OSDV Z1OSDY -
Output D7 D6 D5 D4 D3 D2 D1 D0
DATA2L setup 000 0 0 0 00
H setup111 1 1 1 11
Function Superimpose MAIN ZONE MAIN ZONE Not used
Signal select CVBS signal channel select S signal channel select
L : S L : Through channel select L : Through channel select
H : CVBS H : OSD channel select H : OSD channel select
NJW1321FP1 (AV: IC501)
