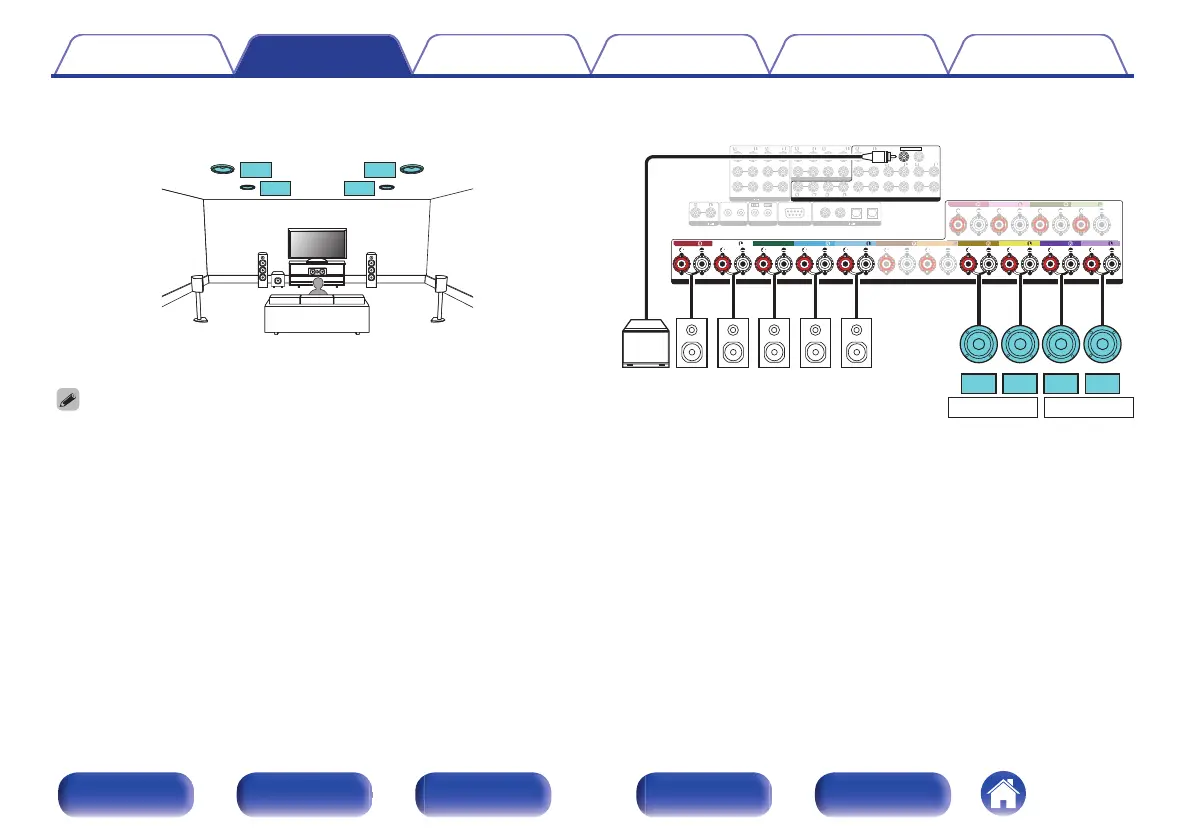

Example connection when using two sets of ceiling speakers
.
C
FL FR
SW
SL SR
TRL TRR
TFL TFR
0
Set “Floor” - “Layout” to “5ch” and “Height Sp” to “4ch” in the menu when
connecting in this configuration. (v p. 235)
.
1 CBL/SAT
PHONO
2 DVD 1 CBL/SAT
2 CD 1
TV
AUDIO
6 CD
2 DVD
12
3 Blu-ray
5 MEDIA PLAYER
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL TRIGGER OUT
PRE OUT
COAXIAL OPTICAL
STRAIGHT CABLE
I
R
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
FRONT
SURROUND CENTER SUBWOOFER
SURROUND BACK
CENTER
SURROUND BACK
SURROUND
HEIGHT2 HEIGHT4/FRONT WIDE
1
AUDIO
(ASSIGNABLE)
AUDIO
DIGITAL AUDIO
(ASSIGNABLE)
2
SUBWOOFER
HEIGHT1
HEIGHT3
ASSIGNABLE ASSIGNABLE
SPEAKERS
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
ASSIGNABLE ASSIGNABLE
HEIGHT4/FRONT WIDE HEIGHT3 HEIGHT3
SURROUND BACK SURROUND BACK
HEIGHT4/FRONT WIDE
TRR TRLTFR TFL
HEIGHT 1
z
HEIGHT 2
z
SW
FR FL C SR SL
z
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
settings. (v p. 62)
