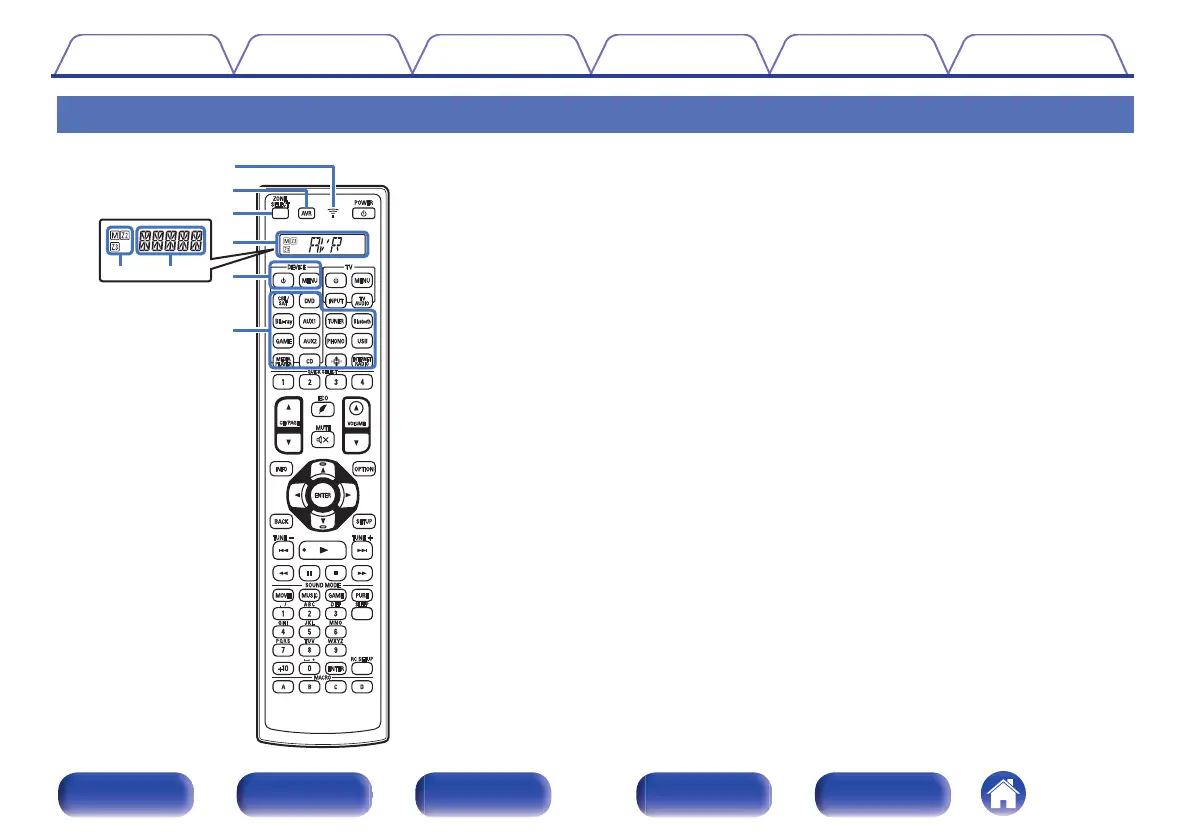

Remote control unit
A
p indicator
This is lit when signals are sent from the remote control unit.
B
AVR operation button
When preset codes are registered to the remote control unit, press this
button and then operate the menu on the unit.
C
Zone select button (ZONE SELECT)
These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated
through the remote control unit. (v p. 178, 184)
D
Display
A
Zone select indicators
B
Information indicator
0
This displays “AVR” when operating this unit.
0
This displays the input source name when operating an external
device.
0
This displays “TV” when operating TV.
0
This displays details about the setting on the remote control unit.
E
Device operation buttons (DEVICE X / DEVICE MENU)
These turn the power of external devices on/off and call up menus.
Preset codes need to be registered in order to use these buttons.
(v p. 278)
F
Input source select buttons
These select the input source.
0
“Selecting the input source” (v p. 103)
0
“Playback in ZONE2/ZONE3” (v p. 178)
