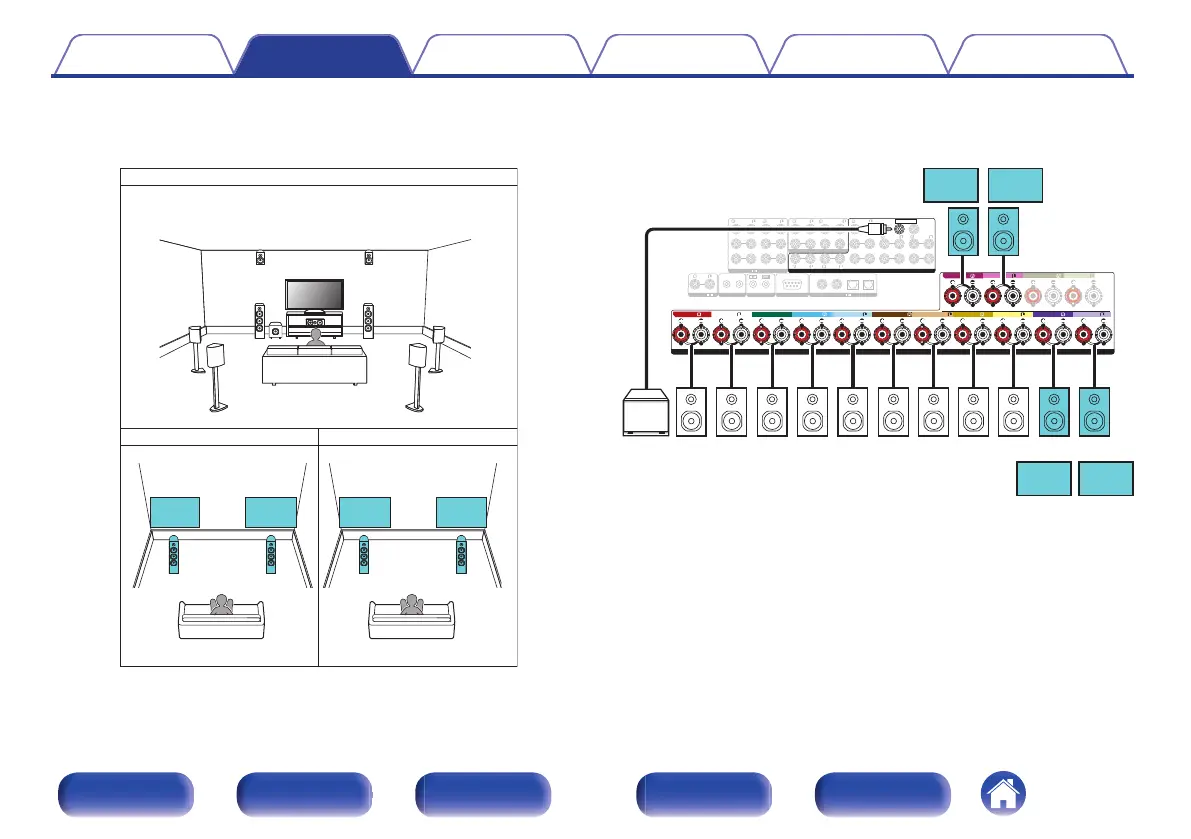

9.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2) + 2-channel playback (ZONE3)
This type of configuration plays back 9.1-channels in MAIN ZONE and 2-channels in ZONE2 and ZONE3.
.
ZONE2
L
ZONE2
R
ZONE3
L
ZONE3
R
MAIN ZONE
3ENOZ2ENOZ
C
SW
RSLS
SBL
SBR
FL FR
FHL FHR
.
1 CBL/SAT
PHONO
2 DVD 1 CBL/SAT
2 CD 1
TV
AUDIO
6 CD
2 DVD
12
3 Blu-ray
5 MEDIA PLAYER
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL TRIGGER OUT
PRE OUT
COAXIAL OPTICAL
STRAIGHT CABLE
I
R
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
FRONT
SURROUND CENTER SUBWOOFER
SURROUND BACK
CENTER
SURROUND BACK
SURROUND
HEIGHT2 HEIGHT4/FRONT WIDE
1
AUDIO
(ASSIGNABLE)
AUDIO
DIGITAL AUDIO
(ASSIGNABLE)
2
SUBWOOFER
HEIGHT1
HEIGHT3
ASSIGNABLE ASSIGNABLE
SPEAKERS
FRONT FRONT
CENTER
SURROUND SURROUND
HEIGHT1 HEIGHT1 HEIGHT2 HEIGHT2
ASSIGNABLE
SURROUND BACK SURROUND BACK
ASSIGNABLE
HEIGHT4/FRONT WIDE HEIGHT4/FRONT WIDE
ASSIGNABLE
HEIGHT3 HEIGHT3
SW
CSRSL
SBR SBL
FHR FHL
zz
ZONE3
R
ZONE3
L
ZONE2
R
ZONE2
L
FR FL
z
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker
to be connected from “Height” in the menu. (v p. 235)
