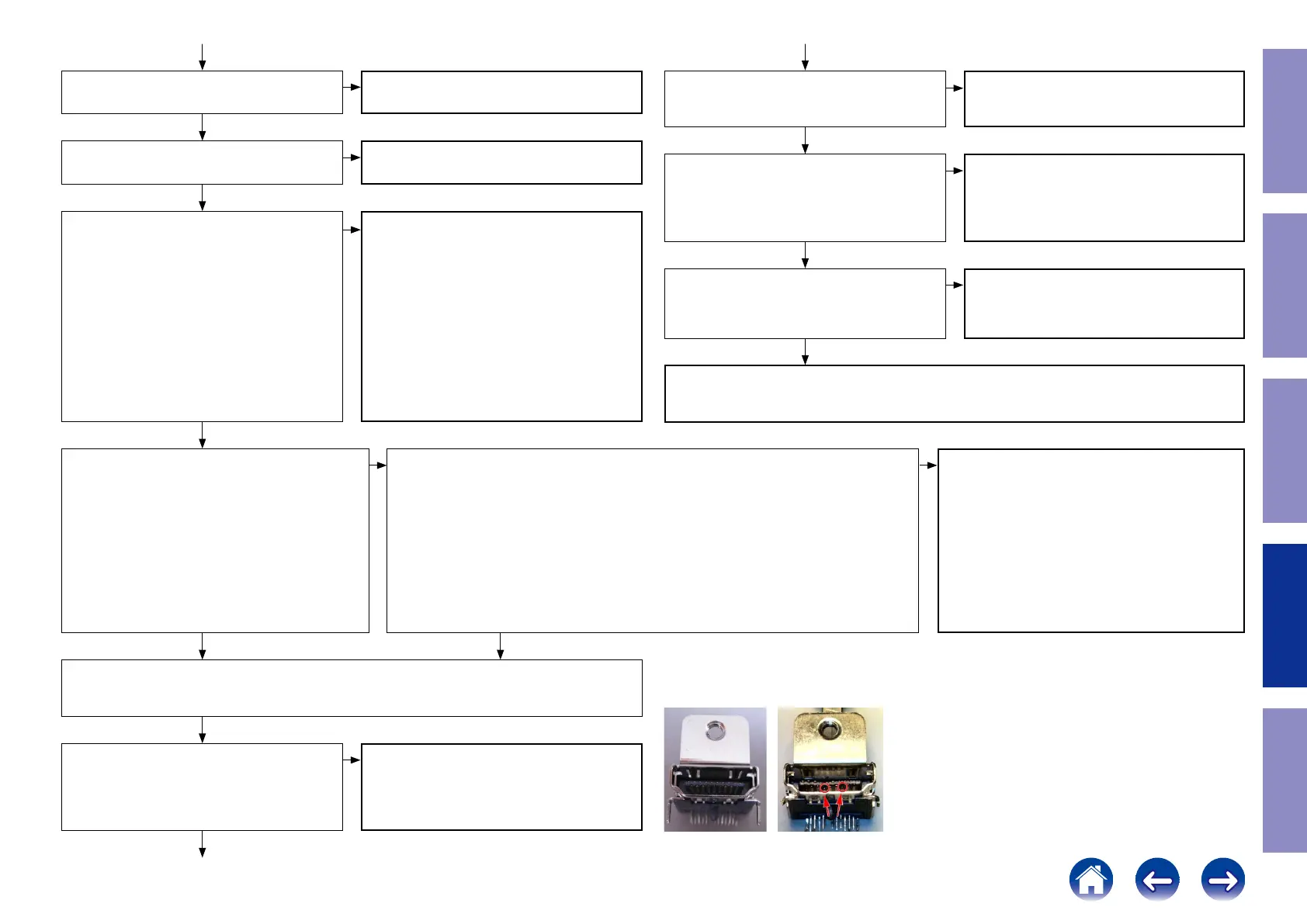

(20) Check the operation of the oscillator
q
[X721 : 28.6363MHz]
w
[X731 : 27MHz]
See "3.2. HDMI test point and waveforms"
(21) Check the Reset signal.
q
[IC721 : 97pin]
(If the signal is standard, proceed to "YES")
w
[IC731 : 115pin]
(If the signal is standard, proceed to "YES")
See "3.2. HDMI test point and waveforms"
(22) Check the control signal (I2C).
Check the test point (SDA/SCL) waveform
(Proceed to "YES" if it is not "Lo")
See "3.2. HDMI test point and waveforms"
The HDMI output circuit is faulty ([IC721, IC731] and peripheral circuits).
Replace the [IC721, IC731].
Checking the condition of the HDMI pin.
See "Check the HDMI connector *1"
(16) Is the unit input set to HDMI?
The unit does not recognize the TV.
(17)
Does the HPD_O test point indicate "Hi" (3-5V)?
When the TV is connected, check the voltage on
the IC side that the TV is connected to.
Check the waveform of DDC_CLK/DDC_DATA
Is the TMDS signal 3.3V? [D7321-D7332]
See "3.2. HDMI test point and waveforms"
(18)
When using a DENON Blu-ray/DVD player, is the
"HDMI" indicator of the î™±uorescent display lit?
Proceed to "NO" when using a Blu-ray/DVD player
produced by other manufactures.
Check operation of the [IC721, IC731].
(Connect the Blu-ray/DVD player to the video input 480P/TV.)
Replace the [IC721, IC731].
q
The [X721 or IC721] is faulty.
w
The [X731 or IC731] is faulty.
Replace any faulty parts.
The RESET pattern or [IC721, IC731] is faulty.
Replace any faulty parts.
The SDATA/SCL signal pattern is faulty.
Replace the HDMI connector.
Check the instruction manual of the this unit and
check the input setting.
Either the pattern and circuit from HDMI connec-
tor [JK726] to [IC731] is faulty, or the HDMI output
circuit is faulty (IC731 and peripheral circuits).
Replace the [IC731].
The Blu-ray/DVD player does not recognize the connection with this unit.
(19)
Does the HPD test point indicate "Hi" (3-5V)?
When the Blu-ray/DVD player is connected, check the voltage of the HDMI connector input on
the side that the Blu-ray/DVD player is connected to.
Check the waveform of DDC_CLK/DDC_DATA
Is the each TMDS signal 3.3V?
HDMI IN1 : [D7207-D7214]
HDMI IN2 : [D7220-D7227]
HDMI IN3 : [D7234-D7240]
HDMI IN4 : [D7304-D7310]
HDMI IN5 : [D7314-D7320]
The pattern and circuit from HDMI connector [JK721-
726] to [IC721, IC731] are faulty.
Replace the [IC721, IC731].
Check the HDMI connector *1
Check for deformed pins.
OK NG
NO
NO
NO
NO
NO
NO
NONO
YES
YES
YES
YES YES
YES
YES
YES
YES
(20) Check the power supply device.
q
Check whether 1.8V or 3.3V is supplied to
[IC721] (each power supply pin).
w
Check whether 1.1V or 3.3V is supplied to
[IC731] (each power supply pin).
The power supply circuit is faulty.
NO
YES
58
