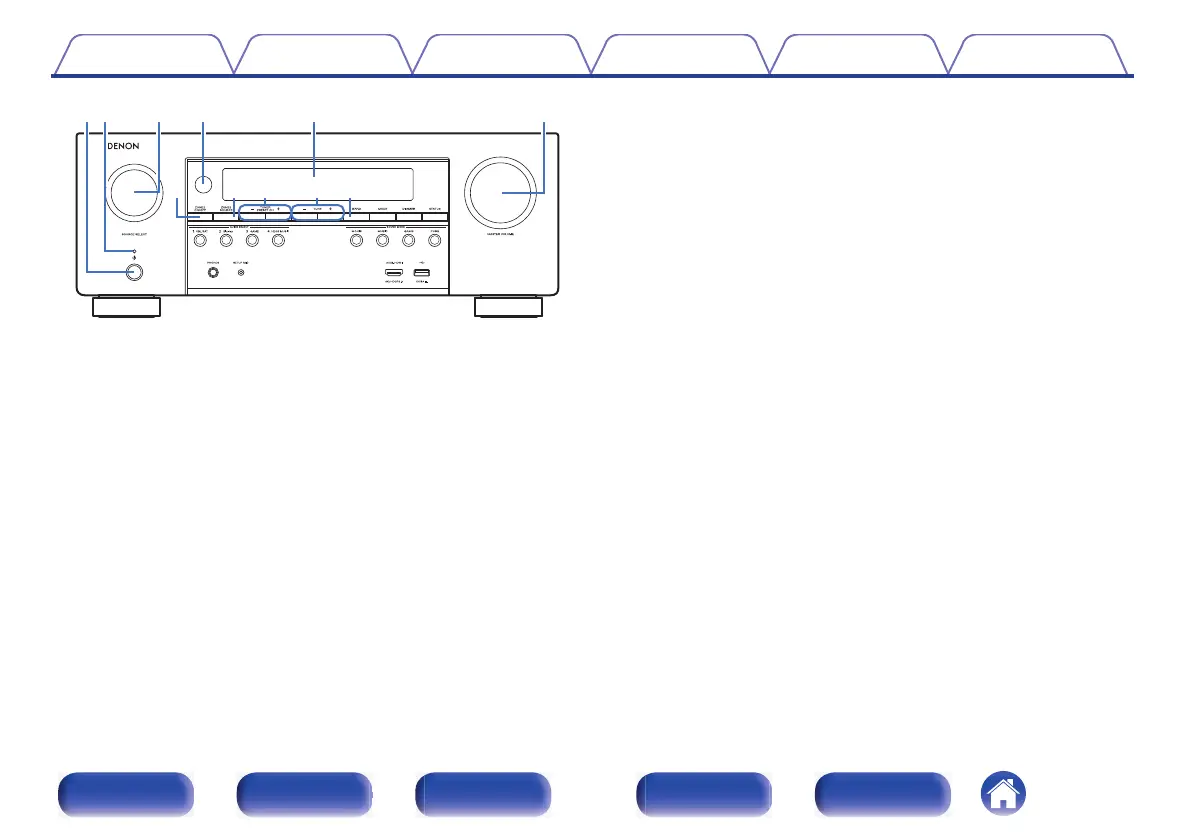

A
Power operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 67)
B
Power indicator
This is lit as follows according to the power status:
0
Green: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI Pass Through” is set to “On” (v p. 159)
0
When “HDMI Control” is set to “On” (v p. 160)
0
When “Network Control” is set to “Always On” (v p. 199)
C
SOURCE SELECT knob
This selects the input source. (v p. 67)
D
Remote control sensor
This receives signals from the remote control unit. (v p. 9)
E
Display
This displays various pieces of information. (v p. 20)
F
MASTER VOLUME knob
This adjusts the volume level. (v p. 68)
G
ZONE2 ON/OFF button
This turns the power of ZONE2 (another room) on/off. (v p. 138)
H
ZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 138)
I
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 81)
J
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. (v p. 78)
K
Reception band select button (BAND)
This switches the reception band. (v p. 78)
