Denon AVR-X1300W Service Manual

Check communication between CPU and the HDMI Rx/Tx device.
When the results of check item (5) are "the communication results are not OK"
Checking (HDMI Rx/Tx) device.
Check the power supply voltage. (HDMI Rx/Tx)
Check item(6). Check the power supply voltage. :
Does the power supply voltage of the HDMI Rx/Tx (IC721) indicate the appropriate voltage (1.1 V, 3.3 V)?
The test points are as follows.
112pin
38pin
3.3V
1.1V
Check item(7). Check the power supply voltage :
Check the power components (IC741, IC747, Q7416) and the pat-
tern on the substrate.
If there is no problem, remove the HDMI Rx/Tx (IC721) from the
substrate and measure the voltage at the test point of check item (6).
Is the voltage correct (1.1 V or 3.3 V)?
Check item (5). : Check communication between CPU and the HDMI
Rx device.
Check by reading device ID and revision of each device.
Check communication between Rx/Tx(IC721) and CPU(IC751) .
Send the transmission command "i 0000 0000 0001" from Termite.
exe.
Is the return value "01" ?
If the communication results are not OK
If the communication results are OK
Example :
If it is normal, "01" is returned.
i 0000 0000 0001
Go to check item (11)
Replace with a new device.
The power supply circuit is
faulty.
Replace the PCB.
Recheck from check item (2).
If it does not work, replace the PCB.
Go to check item (6)
Checking HDMI (HDMI Rx/Tx) device

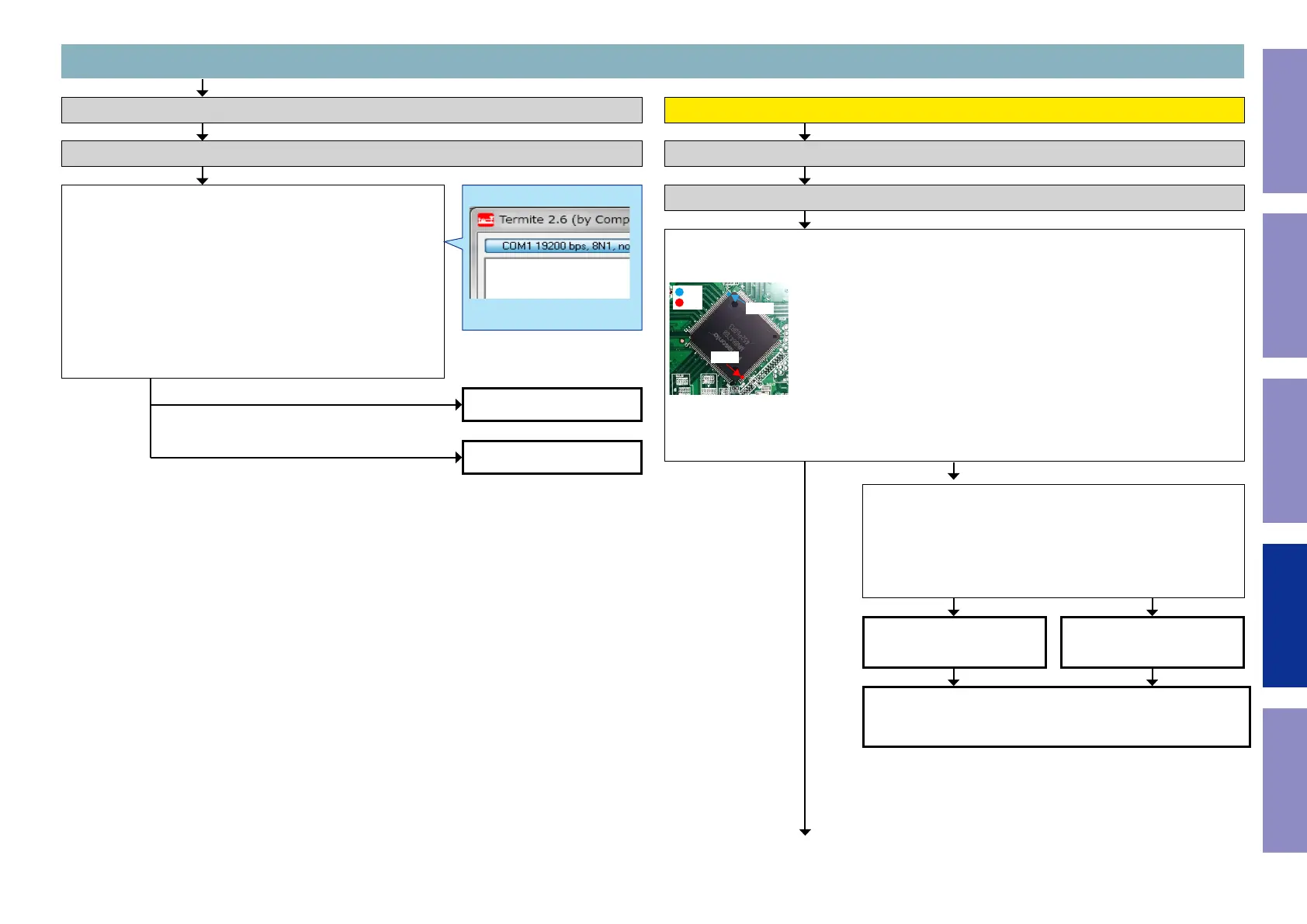

3-2 HDMI Rx/Tx MN864788)failure detection procedure
NOYES
NOYES
Go to next page.
76
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X1300W Specifications

General

Display	-
Product color	Black
Audio decoders	DSD, Dolby TrueHD
Audio amplifier	Yes
Multi-Zone quantity	2
Apple docking compatibility	Not supported
Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (20-20KHz@8 Ohm)	145 W
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA
HDMI in	6
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Supported video modes	2160p
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Connectivity technology	Wired
Speakers connectivity type	3.5mm
Optical drive included	No

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	215 mm
Weight	8500 g
