Denon AVR-X1300W Service Manual

YES
YES
YES
YES

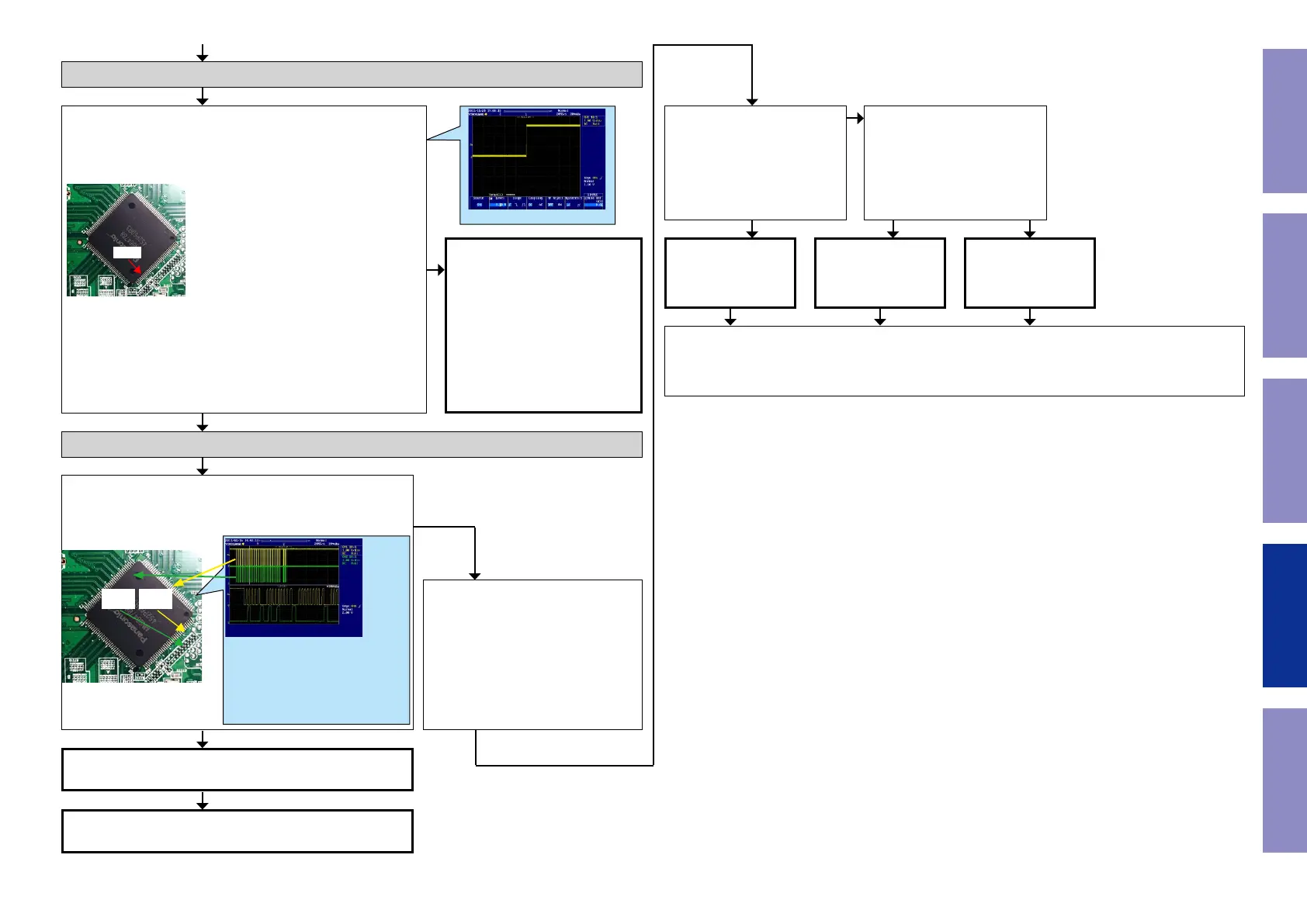

Checking the reset waveform (HDMI Rx/Tx)
Check the I2C communication line. (HDMI Rx/TX)
Check item(8). Checking the reset waveform :
Check the waveform.
Is the "I2C" waveform of the TP near the HDMI Rx (IC721 115pin)
correct (like the one shown in the diagram) when the power is
turned on?
115pin
Check item(9). Check the I2C communication line :
Check the CPU.
Is the "I2C" waveform of the TP near the HDMI Rx (U1000)
correct (like the one shown in the diagram) when the power is
turned on?
116pin
PSDA
114pin
PSCL
Check the reset circuit between
CPU (IC751) and HDMI Rx/Tx
(IC721).
If there is no problem, the HDMI
Rx (IC721) is faulty.
Replace with a new device.
Recheck from check item (2).
If it does not work, replace the
PCB.
The HDMI Rx/Tx
(IC721) is faulty.
Replace with a new
device.
HDMI SW (IC701)
is faulty. Replace with
a new device.
CPU(IC751)
is faulty. Replace with
a new device.
The HDMI Rx/Tx (IC721) is faulty.
Replace with a new IC.
Recheck from check item (2).
If it does not work, replace the PCB.
Check item(10). Check the I2C com-
munication line :
Check HDMI Rx/Tx (IC721), and
CPU(IC751) patterns as well as solder-
ing.
If there is no problem, go to the next
step.
Checking the HDMI SW.
Remove the damping resistor
R7136/R7138 of IC701.
Is the "I2C" waveform correct?
Recheck from check item (2).
If it does not work, replace the PCB.
Checking the HDMI Rx/Tx.
Remove the damping resistor
R7229/R7231 of IC721.
Is the "I2C" waveform correct?
NO
NO
NO
YES YES NO
Examples of conrmation waveform
*The diagram shows an example.
(Signal patterns vary depending on
the timing.)
Points for checking waveforms
- Crest value (3.3 V normally)
- Signal change
- SCL frequency (400 kHz normally )
77
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X1300W Specifications

General

Display	-
Product color	Black
Audio decoders	DSD, Dolby TrueHD
Audio amplifier	Yes
Multi-Zone quantity	2
Apple docking compatibility	Not supported
Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (20-20KHz@8 Ohm)	145 W
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA
HDMI in	6
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Supported video modes	2160p
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Connectivity technology	Wired
Speakers connectivity type	3.5mm
Optical drive included	No

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	215 mm
Weight	8500 g
