Denon AVR-X1600H Service Manual

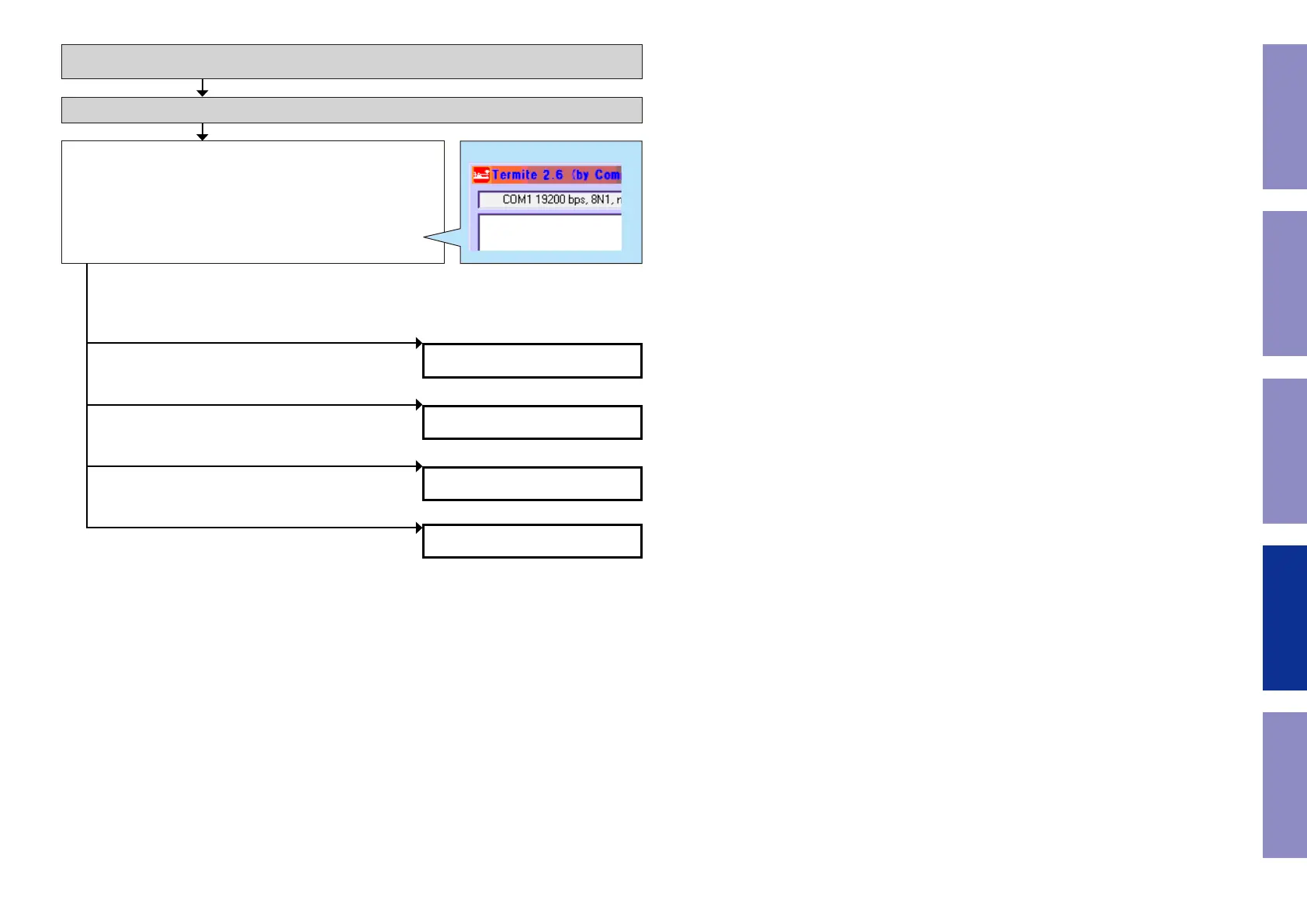

Check item(3-11.3.). Check the HPD and RXSENSE register value of
the HDMI TX device.：
Send the following command from Termite.exe.
Send the command "i 0000 0040 0001".
Move to the branch destination according to the value returned.
Check the connection between the HDMI OUT terminal and the TV.
Connect the HDMI OUT terminal and the TV, and then turn on the TV and check the following items.
Checking the HPD/RXSENSE status register. (HDMI Tx -> Monitor)
Example
i 0000 0040 0001
"01"
(Detection of HPD is OK / Detection of RXSENSE is not OK )
"03"
(Detection of HPD is OK / Detection of RXSENSE is OK )
"02"
(Detection of HPD is not OK / Detection of RXSENSE is OK )
"00"
(Detection of HPD is not OK / Detection of RXSENSE is not OK )
Go to check item (3-11.7.)
Go to check item (3-11.4.)
Go to check item (3-11.8.)
Go to check item (3-11.9.)
