Denon AVR-X1600H Service Manual

Example
The rst eight bytes are normally
"00FFFFFFFFFFFF00".
*If the AVR and the TV are not con-
nected via HDMI, the correct register
value cannot be veried.
m_1

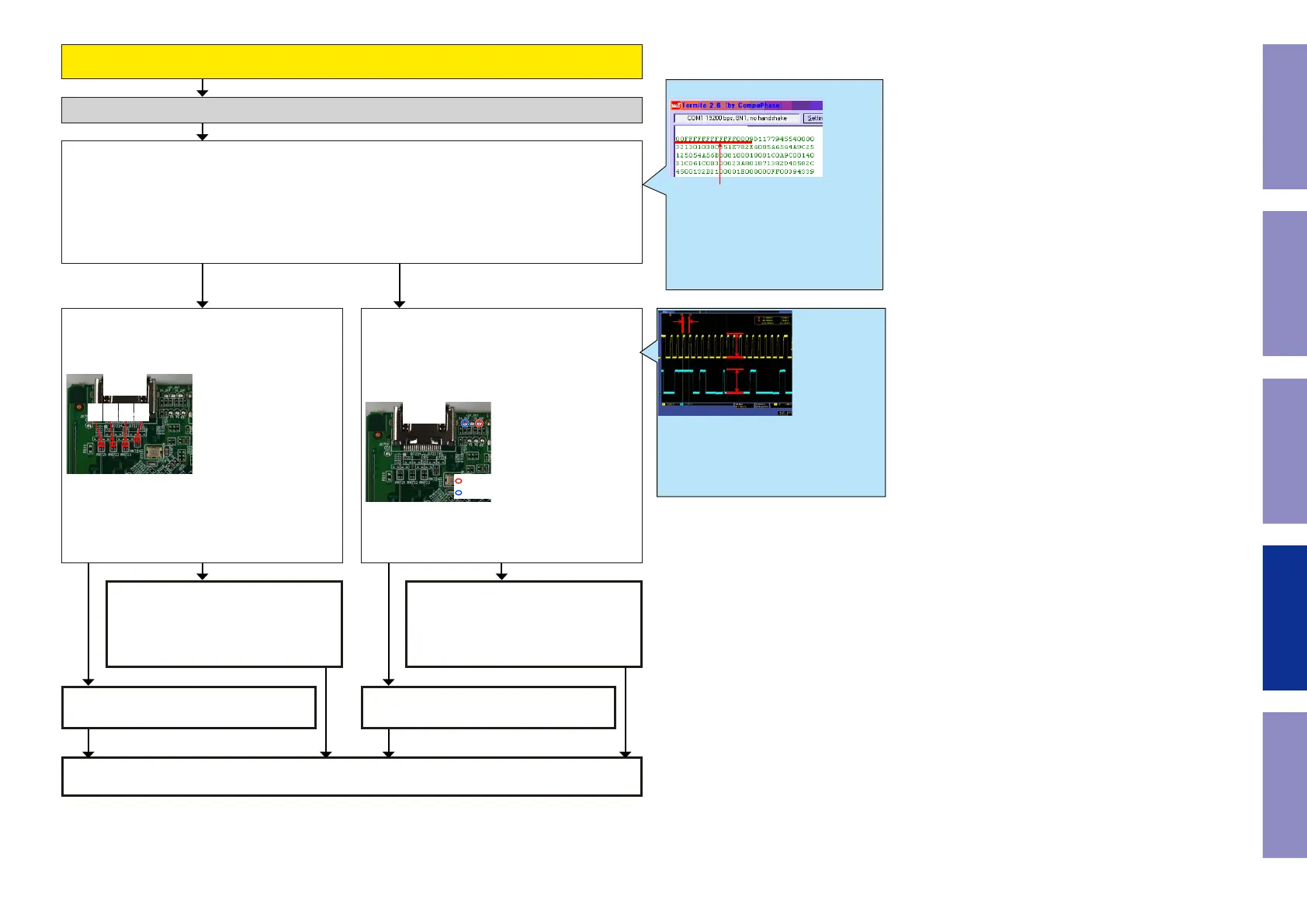

When the results of check item (3-11.3.) are "03"
(Detection of HPD is OK / Detection of RXSENSE is OK )
Check item(3-11.4.). Check the Monitor EDID :
① Unplug the AC cord. Plug the AC cord into a power outlet.
② Send the transmission command "m_1" from Termit.exe.
Are the rst eight bytes of the returned value "00FFFFFFFFFFFF00"?
Check item(3-11.5.). Checking the TMDS :
Check the TMDS waveform at the following test
point.
JK751
HDMI OUT
[MONITOR]
D2+ D2- D1+ D1- D0+ D0- CK+ CK-
Check item(3-11.6.). Check communication with
the monitor :
Are waveforms of "DDCSCK" and "DDCSDA"
observed at the test point near the HDMI output
terminal [JK751]?
JK751
HDMI OUT
[MONITOR]
DDCSCK
DDCSDA
Checking the EDID register. (Monitor)
HDMI Rx/Tx [IC721] is faulty.
Replace with a new device.
Recheck from check item (3.3.).
If it does not work, replace the PCB.
HDMI Rx/Tx [IC721] is faulty.
Replace with a new device.
Check for a short circuit in the TMDS line.
If there is no problem, the HDMI Rx/Tx
(IC721) is faulty.
Replace with a new device.
HDMI Rx/Tx [IC721] is faulty.
Replace with a new device.
NOYES NOYES
less than 100KHz
5V
5V
This diagram shows an example of the DDC commu-
nication waveform.
-The high level voltage is 5V.
-The frequency of the DDC CLK is 100 KHz or less.
Check at each test point.
Voltage scale：2.0V/div
Time scale：40us/div
YES NO
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
110

Denon AVR-X1600H Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	4 - 16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	6
AC (power) in	Yes
Composite video in	2
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Clamp terminals
Display	-
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
AM band range	520 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Amazon Music, Deezer, Pandora, Spotify, Tidal, TuneIn
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	440 W
Operating temperature (T-T)	5 - 35 °C
Package weight	10600 g
Certification	CE
Package depth	435 mm
Package width	523 mm
Package height	232 mm

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	215 mm
Weight	8600 g
