REAR PANEL 1DISPLAY 1

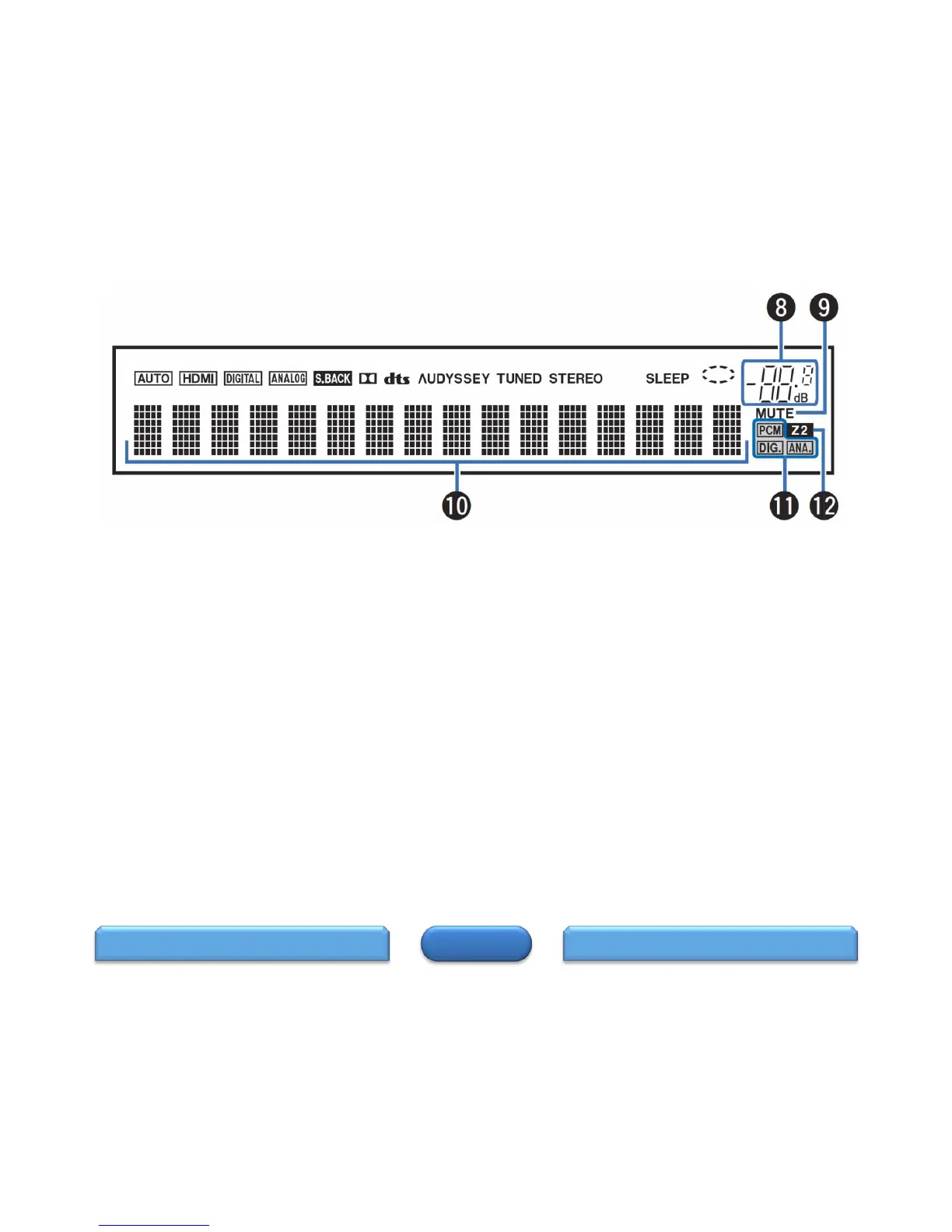

Display (2 of 2)
 Volume indicator
 MUTE indicator
This blinks while the sound is muted.
 Information display
The input source name, sound mode, setting values and other
information are displayed here.
 Input signal indicators
The respective indicator will light corresponding to the input signal.
 ZONE2 indicator
This lights up when ZONE2 (separate room) power is turned on.
5

Denon AVR-X2200W Specifications

General

Channels	7.2
HDMI Inputs	8
HDMI Outputs	2
Dolby Atmos	Yes
DTS:X	Yes
Wi-Fi	Yes
Bluetooth	Yes
4K Ultra HD Pass-through	Yes
Audyssey MultEQ XT	Yes
HDCP Support	2.2
AirPlay	Yes
Ethernet	Yes
Phono Input	Yes
Total Harmonic Distortion	0.08% (20Hz-20kHz)
HDMI Version	2.0a
4K Support	Yes
HDR Support	Yes
Dimensions (W x H x D)	434 x 167 x 339 mm
Power Output per Channel	95W (8 ohms, 20Hz - 20kHz, 0.08% THD)
USB Input	1
Frequency Response	10Hz - 100kHz
Inputs	8 HDMI, 2 component
Outputs	2 HDMI, 1 composite, 1 component
