Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
• “Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)”
• “Connection 3 : TV equipped without an HDMI connector”.
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room.
HOME
REAR PANEL 3REAR PANEL 1

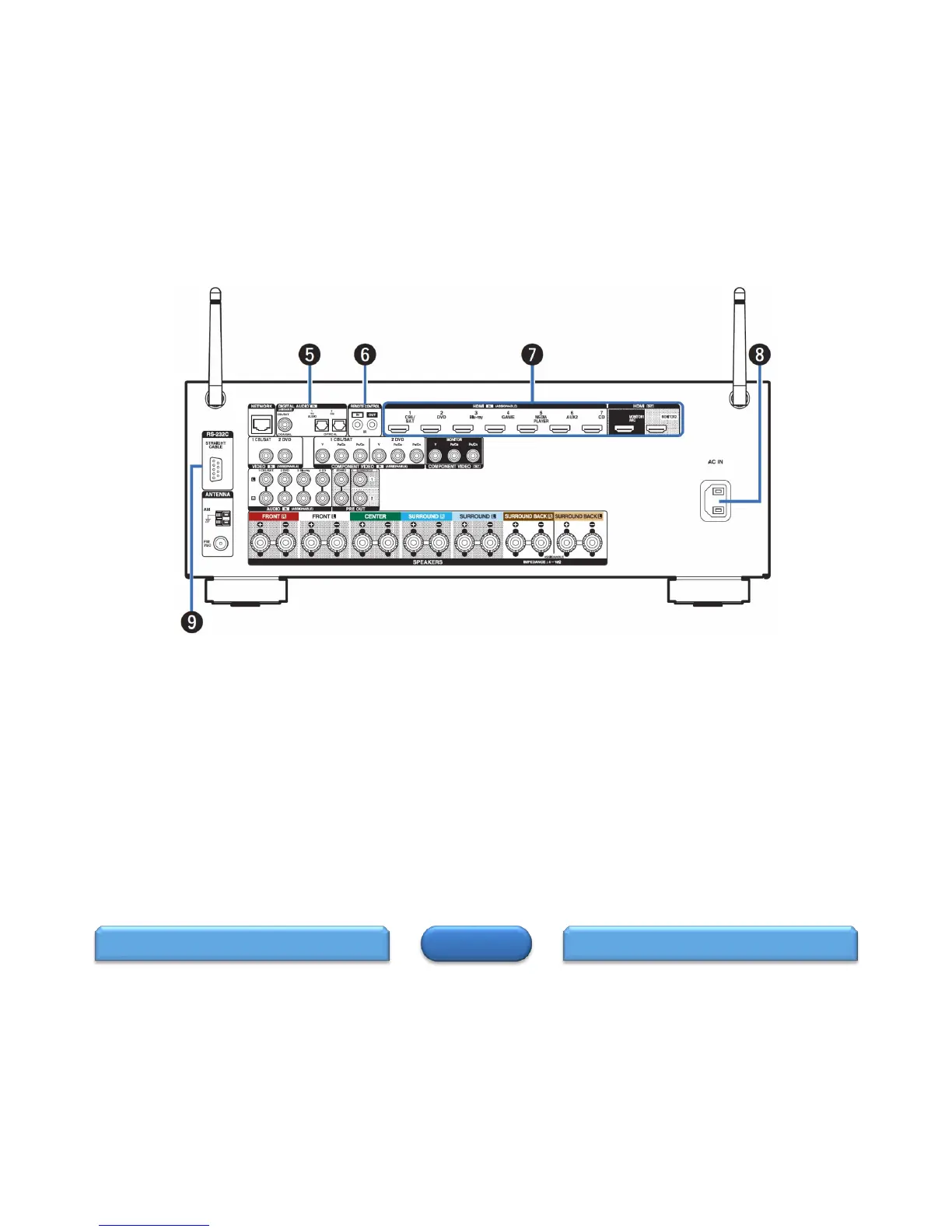

Rear Panel (2 of 3)
HDMI connectors
Used to connect devices equipped with HDMI connectors.
• “Connection 1 : TV equipped with an HDMI connector and compatible with the
RC (Audio Return Channel)”
• “Connection 2 : TV equipped with an HDMI connector and incompatible with
the ARC (Audio Return Channel)”
• “Connecting a set-top box (Satellite tuner/cable TV)”
• “Connecting a DVD player or Blu-ray Disc player”
AC inlet (AC IN)
Used to connect the power cord.
RS-232C connector
Used to connect home automation controller devices fitted with RS-232C
connectors. Consult the owner’s manual of the home automation controller for
more information about serial control of this unit.
Perform the operation below beforehand.
A Turn on the power of this unit.
B Turn off the power of this unit from the external controller.
C Check that the unit is in the standby mode.
