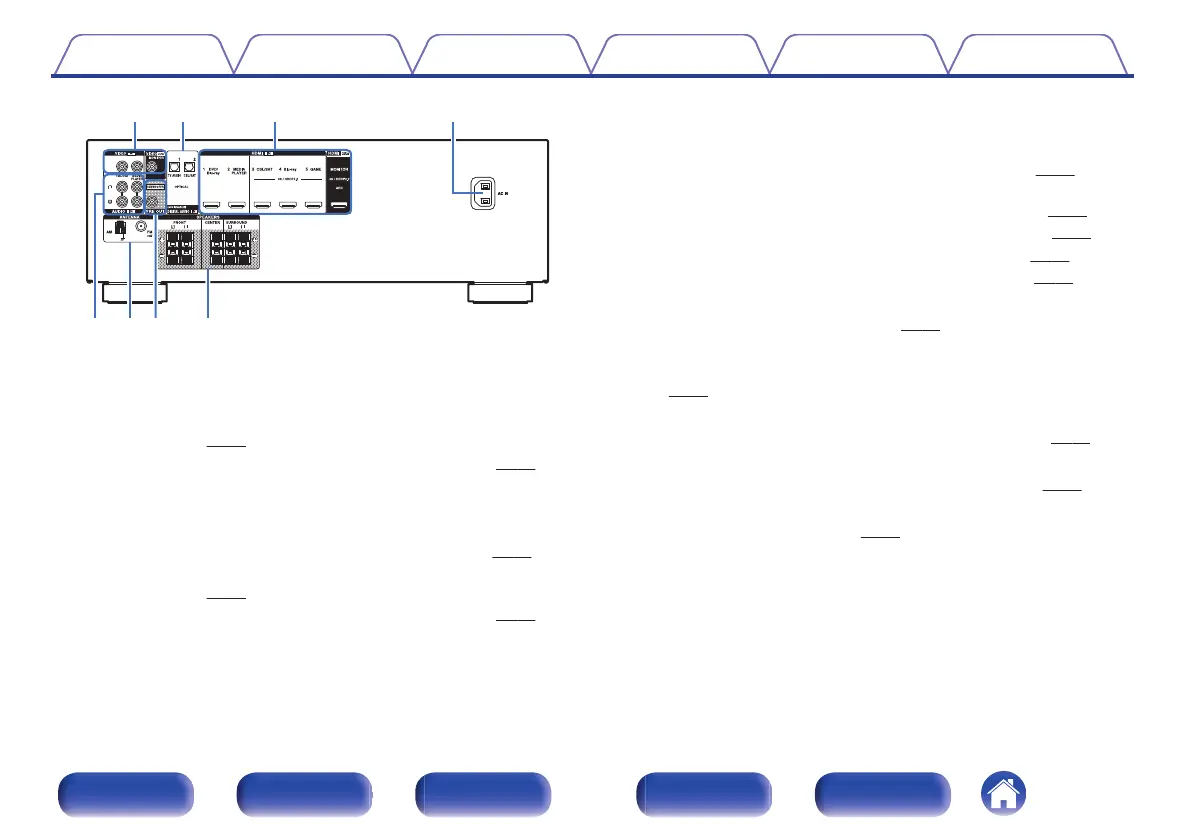

Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 28)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 30)
B
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v
p. 27)
0
“Connection 3 : TV equipped without an HDMI
connector” (v
p. 28)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 30)
C
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v p. 26)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 27)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 30)
0
“Connecting a DVD player or Blu-ray Disc player” (v
p. 31)
0
“Connecting a game console or video camcorder” (v p. 32)
D
AC inlet (AC IN)
Used to connect the power cord. (v p. 35)
E
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v p. 30)
F
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 33)
G
PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier. (v p. 23)
H
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 22)
