Connecting speakers
Install speakers and connect them to this unit. (“Speaker installation” (v p. 20), “Speaker connection” (v p. 22))
Speaker installation
Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room.

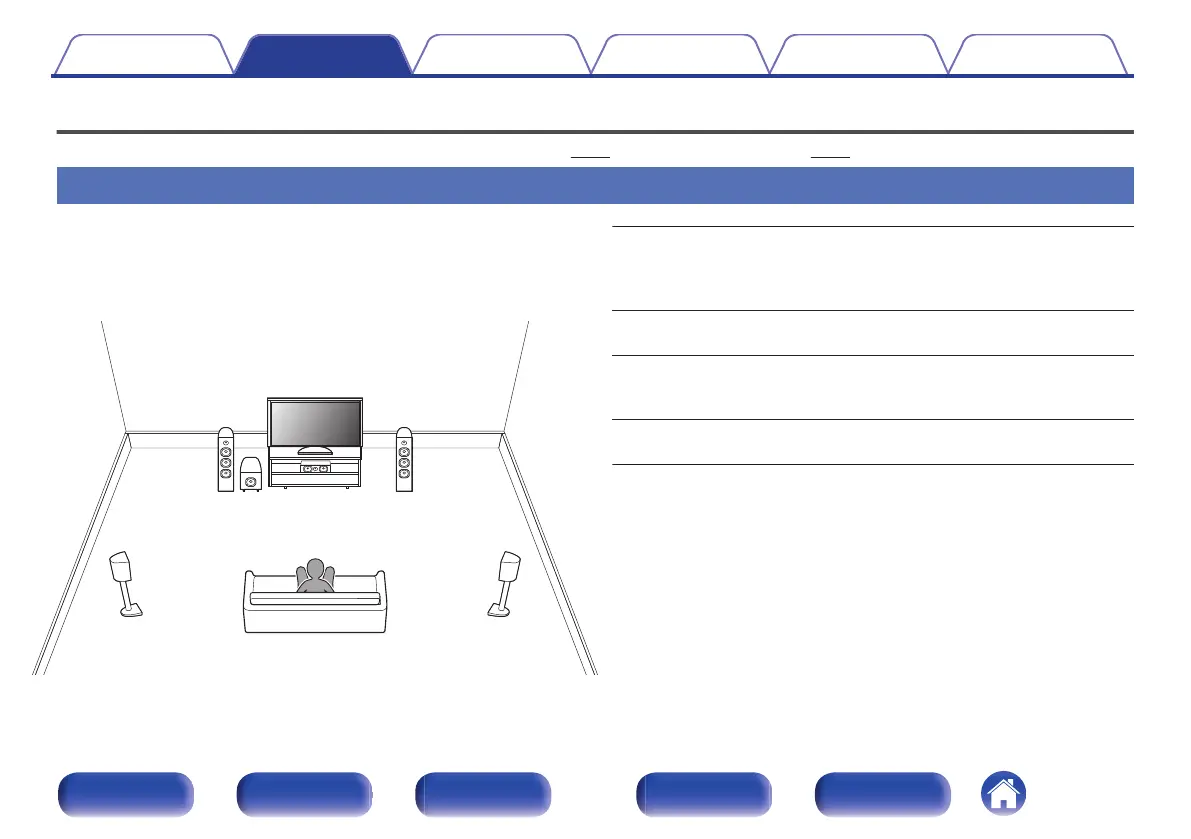

Speaker installation is explained using this example of a typical
installation.
.
FL/FR
(Front speaker left/
right):
Place the FRONT left and right speakers an
equal distance from the main listening position.
The distance between each speaker and your TV
should also be the same.
C
(Center speaker):
Place the CENTER speaker in between the front
speakers and above or below your TV.
SL/SR
(Surround speaker left/
right):
Place the SURROUND left and right speakers an
equal distance to the left and right sides of the
main listening position.
SW
(Subwoofer) :
Place the SUBWOOFER at a convenient location
near the front speakers.
