Denon AVR-X5200W Quick Start Guide

3
Important: External Antennas
The removable external antennas are required for both
Bluetooth and Wireless network connectivity. Please make
sure to connect the antennas before attempting to use the
Bluetooth or Wi-Fi features of the AVR-X5200W.

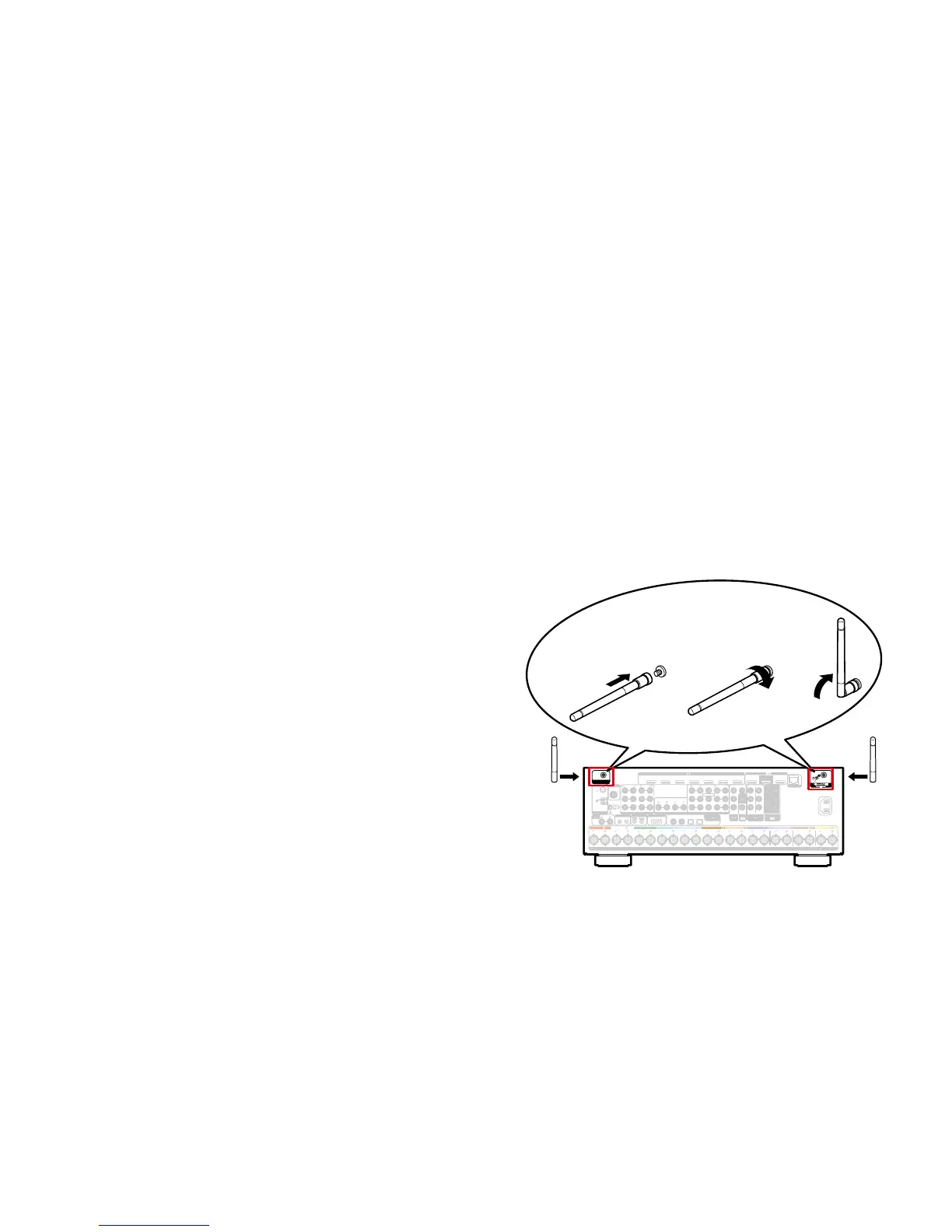

n Connecting the external antennas for
Bluetooth/Wireless connectivity
For each of the two antennas:
1) Place the antenna evenly over the antenna terminal
located at the upper left or right corner of the rear panel.
2) Turn the antenna clockwise until it is fully connected. Do
not over tighten.
3) Rotate the antenna upwards for the best possible
reception.
PHONO
AUDIO
SIGNAL
GND
Bluetooth
/
Wi-Fi
ANTENNA
Denon Link HD
AM
FM
ANTENNA
1 CBL/SAT
1 CBL/SAT 2 DVD
2
CD
1
TV
AUDIO
6 MEDIA PLAYER
2 DVD
12
3 Blu-ray
5 CD
4 GAME
1
CBL/SAT
1 CBL/SAT
2 DVD
2 DVD4 GAME
(ASSIGNABLE)
DIGITAL AUDIO RS-232C REMOTE CONTROL TRIGGER OUT
(ASSIGNABLE) (ASSIGNABLE)
VIDEO COMPONENT VIDEO VIDEO COMPONENT VIDEO
MONITOR/ZONE2
MONITOR
ZONE23 Blu-ray
Y
P
B/CB
PR/CR
COAXIAL
OPTICAL
STRAIGHT CABLE
IR
DC12V 150mA MAX.
ZONE2ZONE3
FRONT
SURROUND
FRONT WIDE CENTER
HEIGHT1
SURROUND BACKHEIGHT2
1
SUBWOOFER
NETWORK
PRE OUT
(ASSIGNABLE)
AUDIO
2
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
IMPEDANCE : 4㹼16 Ȑ
AC IN
1
CBL
/SAT
2
DVD
3
Blu-ray
6
AUX2
7
CD
4
GAME
5
MEDIA
PLAYER
(ASSIGNABLE)
HDMI
ARC
MONITOR1 ZONE2 MONITOR2
HDMI
CENTERSURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1FRONT
qwe

Denon AVR-X5200W Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	16 Ω
Speaker selector	A+B
Pre-out connectivity	Yes
Audio output channels	- channels
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Connectivity technology	Wired & Wireless
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	730 W

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14200 g
