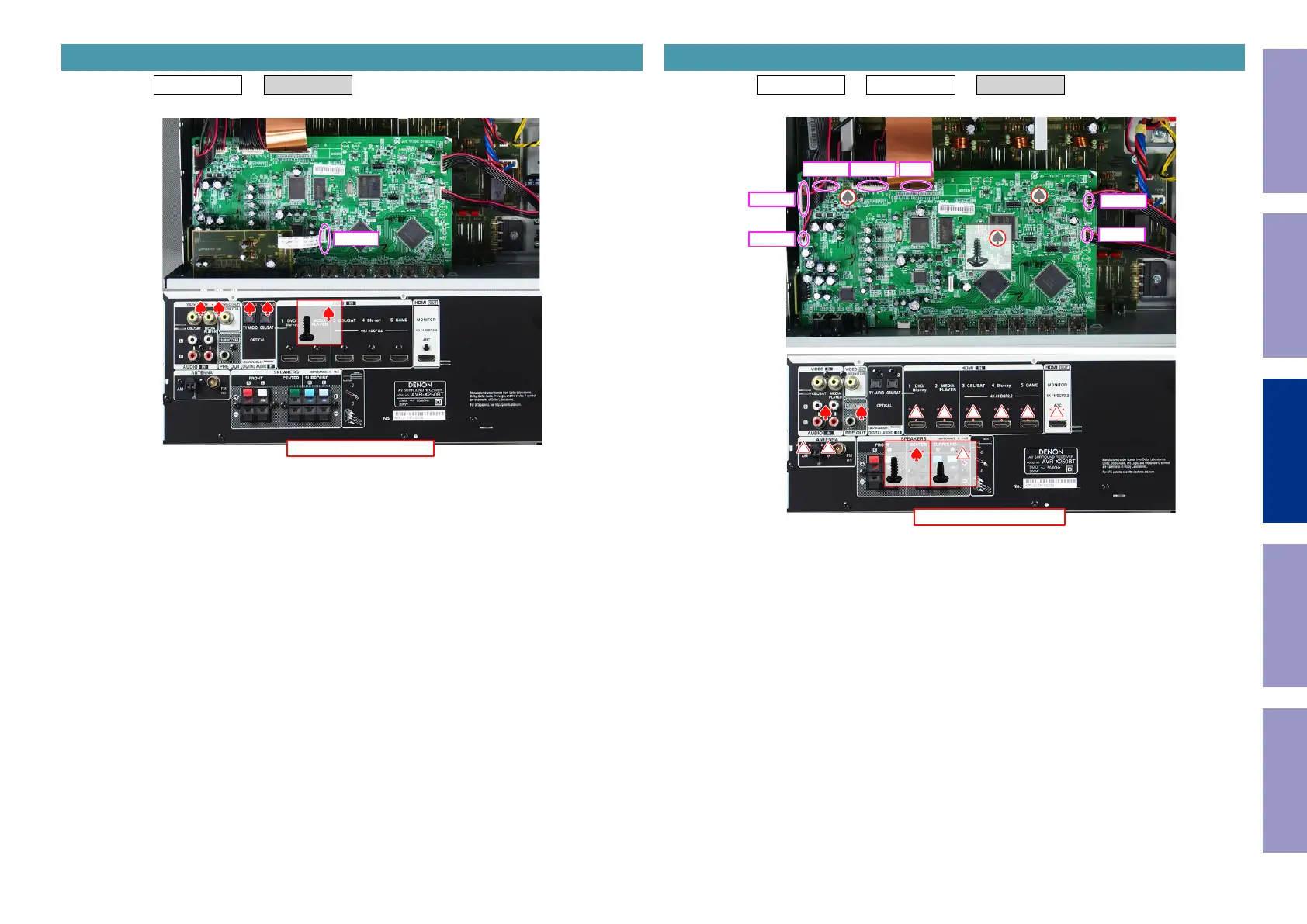

Proceeding : TOP COVER → VIDEO PCB
(1) Remove the screws. Remove the FFC.
2. VIDEO PCB
↑Shooting direction: A↑
x4
FFC
Proceeding : TOP COVER → VIDEO PCB → DIGITAL PCB
(1) Remove the screws. Remove the connector. Remove the FFC.
3. DIGITAL PCB
↑Shooting direction: A↑
x2
x8
x2
CN713
CN752
FFCCN712CN772
CN771
CN751
