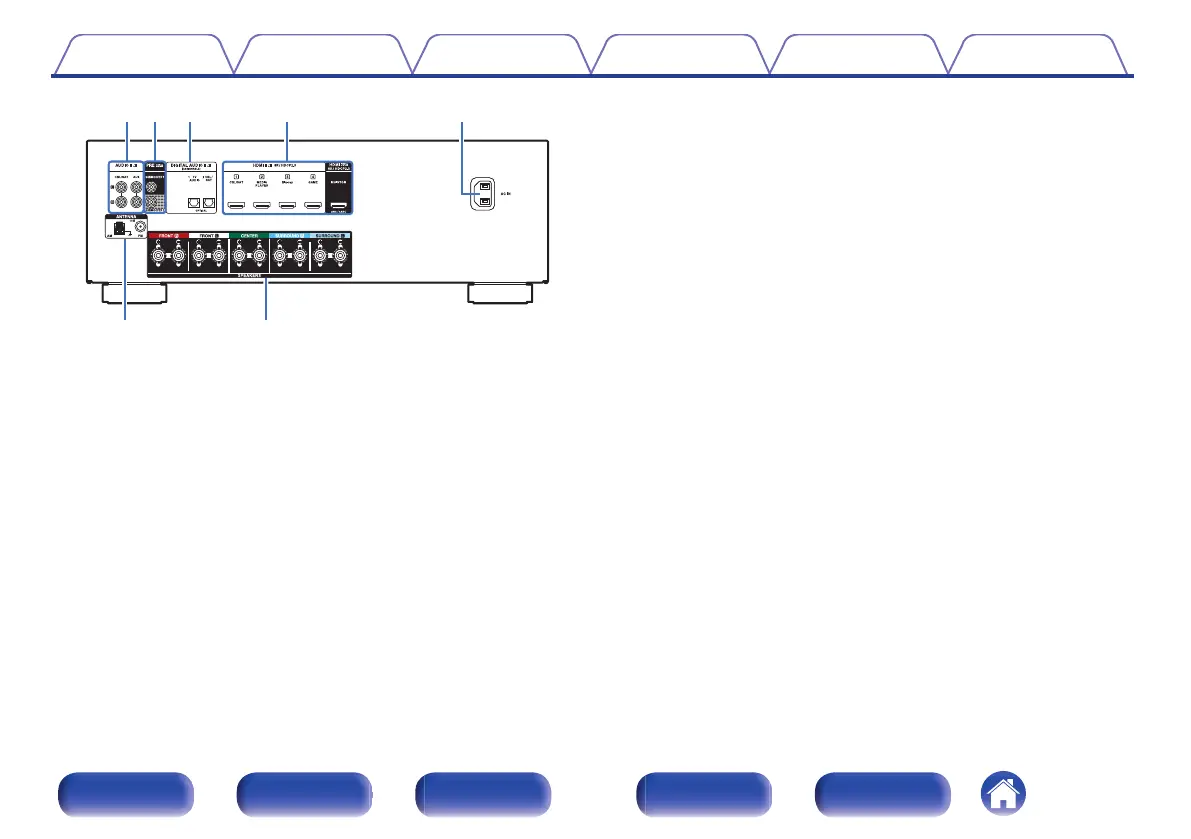

A
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v p. 31)
B
PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier. (v p. 24)
C
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC / eARC” (v p. 29)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 31)
D
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC / eARC” (v p. 28)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC / eARC” (v p. 29)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 31)
0
“Connecting a Blu-ray Disc player or DVD player” (v p. 33)
0
“Connecting a game console” (v p. 34)
E
AC inlet (AC IN)
Used to connect the power cord. (v p. 38)
F
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 36)
G
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 23)
