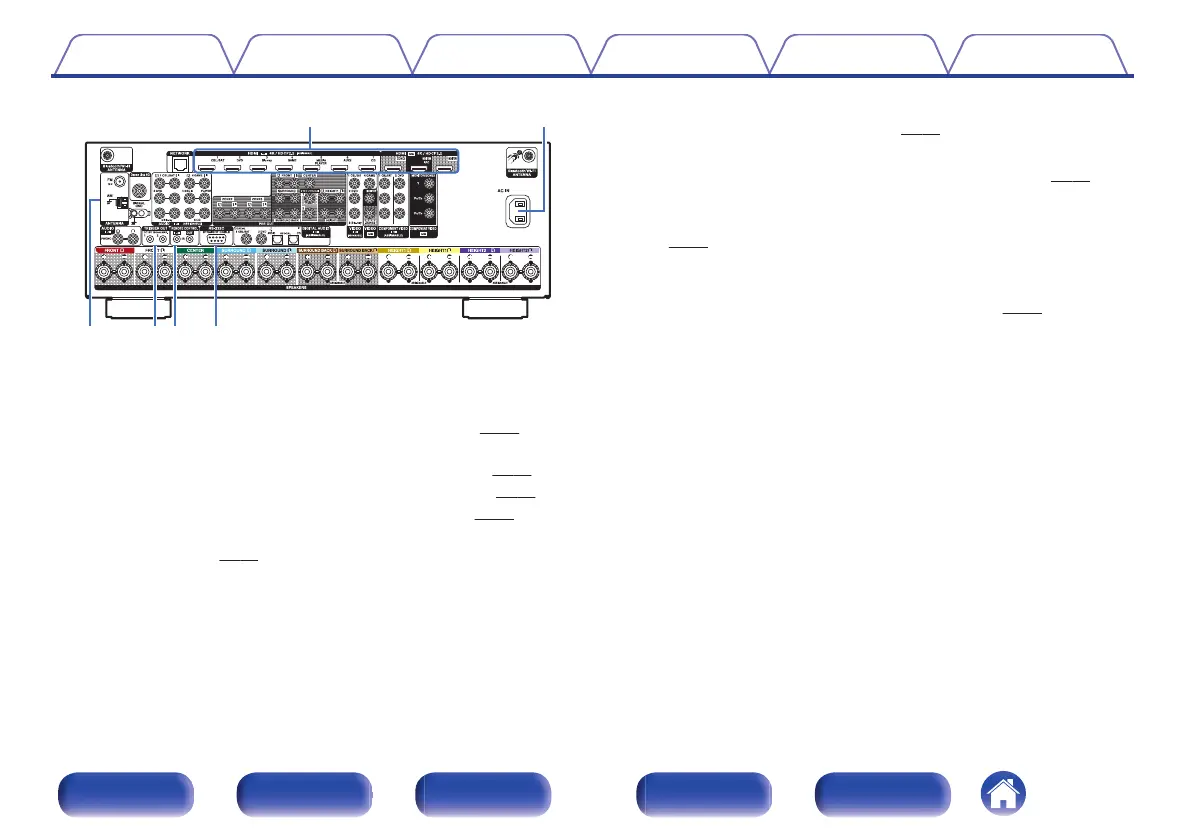

F
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v
p. 74)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 75)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 78)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 79)
0
“Connecting a Blu-ray Disc player compatible with the Denon Link
HD function” (v p. 80)
G
AC inlet (AC IN)
Used to connect the power cord. (v
p. 90)
H
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 84)
I
TRIGGER OUT jacks
Used to connect devices equipped with the trigger function.
(v
p. 89)
J
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v
p. 88)
K
RS-232C connector
Used to connect home automation controller devices fitted with
RS-232C connectors. Consult the owner’s manual of the home
automation controller for more information about serial control of this
unit.
Perform the operation below beforehand.
A
Turn on the power of this unit.
B
Turn off the power of this unit from the external controller.
C
Check that the unit is in the standby mode.
Contents Connections Playback Settings Tips Appendix
26
Front panel Display Rear panel Remote Index
To Next Page
