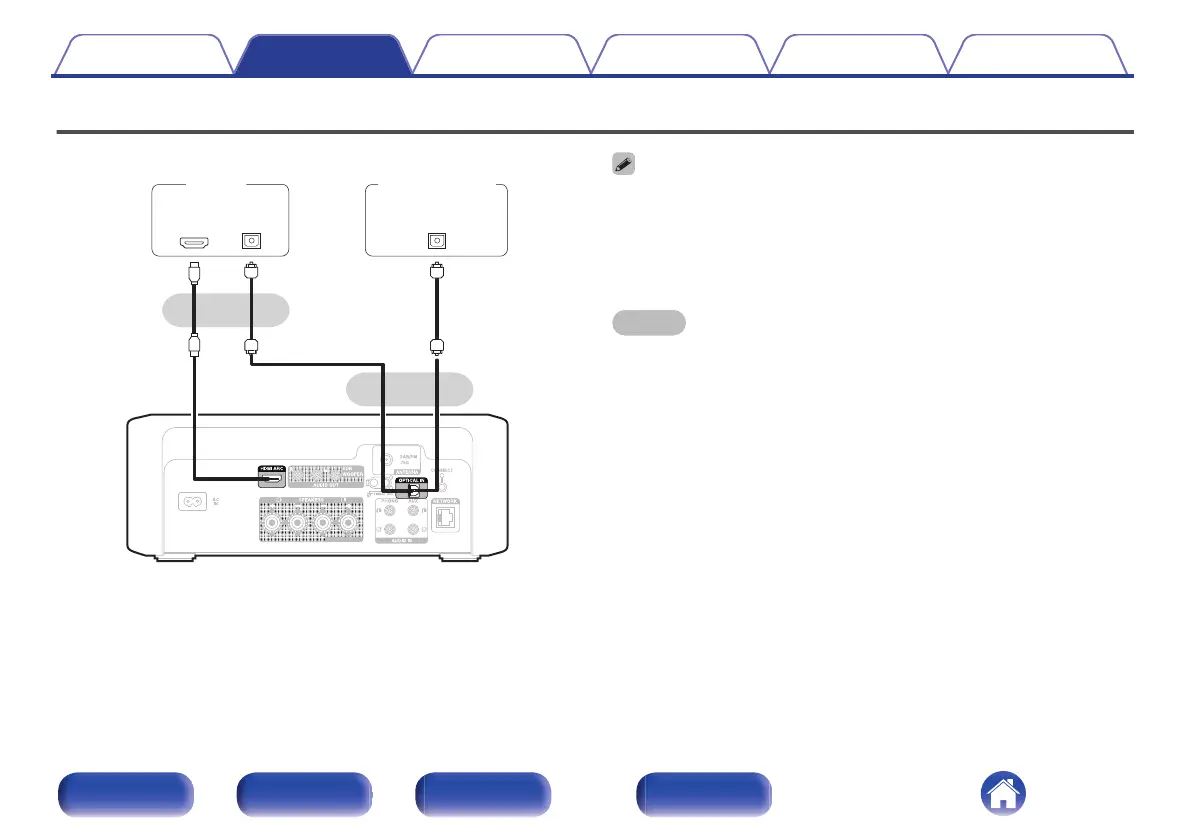

Connecting a digital device
Connect this unit to a device with digital output connectors, such as a TV.
IN
HDMI
(ARC)
TV
or
Digital device
or
OPTICAL
OUT
OPTICAL
OUT
0
When connecting a TV to this unit, turn off the audio output of the TV’s internal
speakers. See the owner’s manual of your TV for details.
0
When connecting the HDMI ARC terminal of this unit to your TV, connect it to the
HDMI input terminal of your TV that supports the ARC function.
0
When connecting to a TV that does not support the ARC function, use an Optical
connection to play the TV audio.
NOTE
0
Only the PCM 2-channel setting can be used to play sound from a TV via the
HDMI ARC function and Optical connection. Set “PCM 2ch” as the audio format in
the TV settings.
0
Linear PCM signals with a sampling frequency of 32 kHz, 44.1 kHz, 48 kHz, 88.2
kHz, 96 kHz, 176.4 kHz, or 192 kHz can be input into this unit.
0
Do not input non-PCM signals, such as Dolby Digital, DTS and AAC. This causes
noise and could damage the speakers.
o
Specifications of supported audio formats
See “Digital input” (v p. 136).
