Information
Part names and functions
For buttons not explained here, see the page indicated in parentheses ( ).

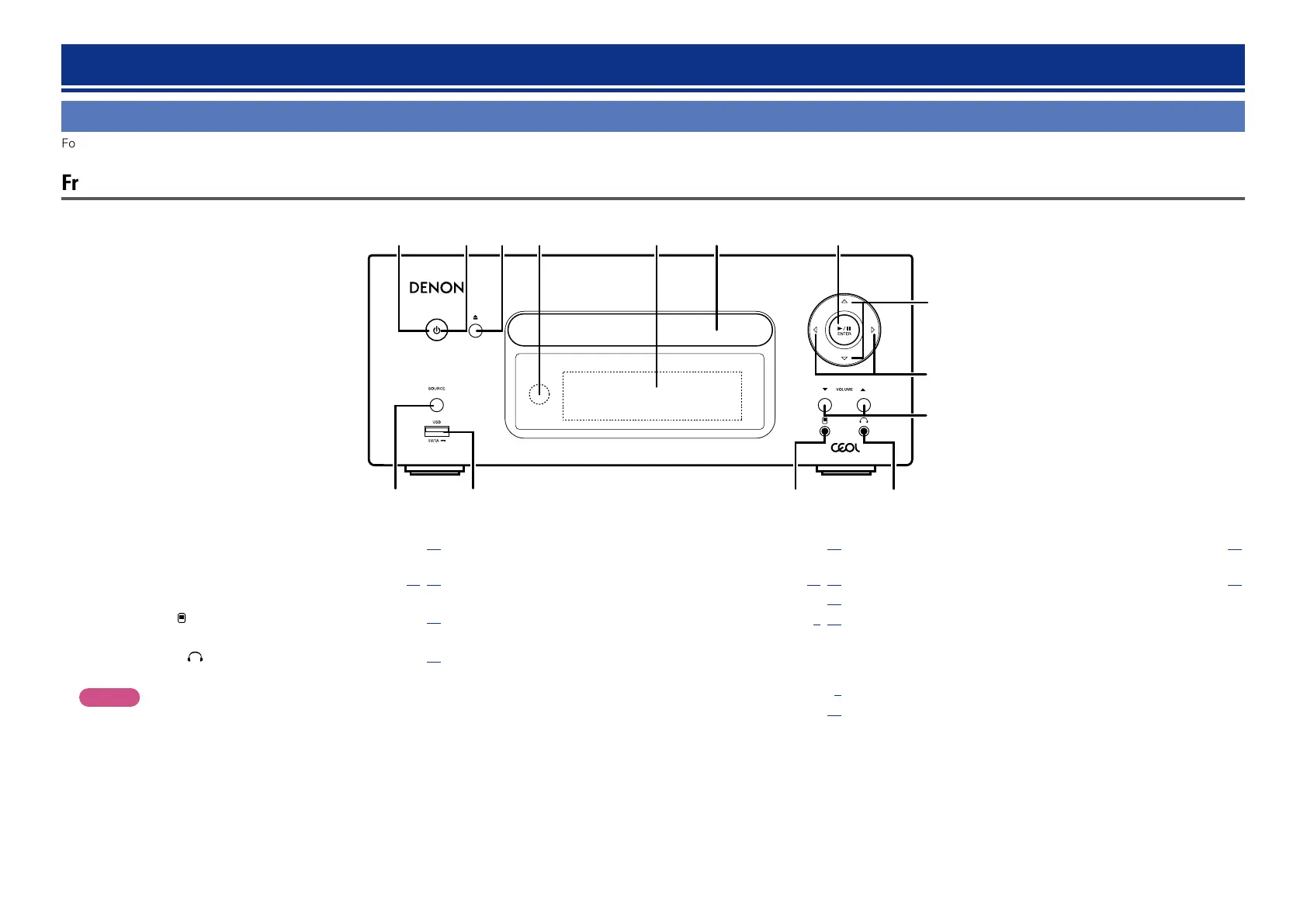

Front panel
Q0 o i u
y
t
y
re
Q3
Q2 Q1
q
w
q SOURCE button ······································································· (23)
Selects the input source.
w USB port ············································································· (37, 40)
Used to connect iPod or USB memory devices.
e Portable in jack ( ) ·································································· (41)
Used to connect portable audio devices.
r Headphones jack ( ) ····························································· (24)
Used to connect headphones.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
t Volume up/down button (VOLUME df) ······························ (23)
Adjusts the audio volume.
y Cursor button (uio p) ···················································· (12, 23)
u Play/Pause/ENTER button (1/3/ENTER) ····························· (25)
i Disc tray ··············································································· (3, 25)
Tray used to insert a compact disc.
o Display
Displays play status, settings, etc.
Q0 Remote control sensor ····························································· (4)
Q1 Disc tray open/close button (5) ············································· (25)
Used to open/close the disc tray.
Q2 Power indicator ······································································· (23)
Q3 Power operation button and indicator
(X) ····························································································· (23)
Turns power to this unit on and off (standby).
The power indicator changes as shown below according to the
status of the unit.
•Power on : White
•Standby : Off
•Network Control – “On” : Red
•iPod charge standby : Red
•Alarm standby : Orange
