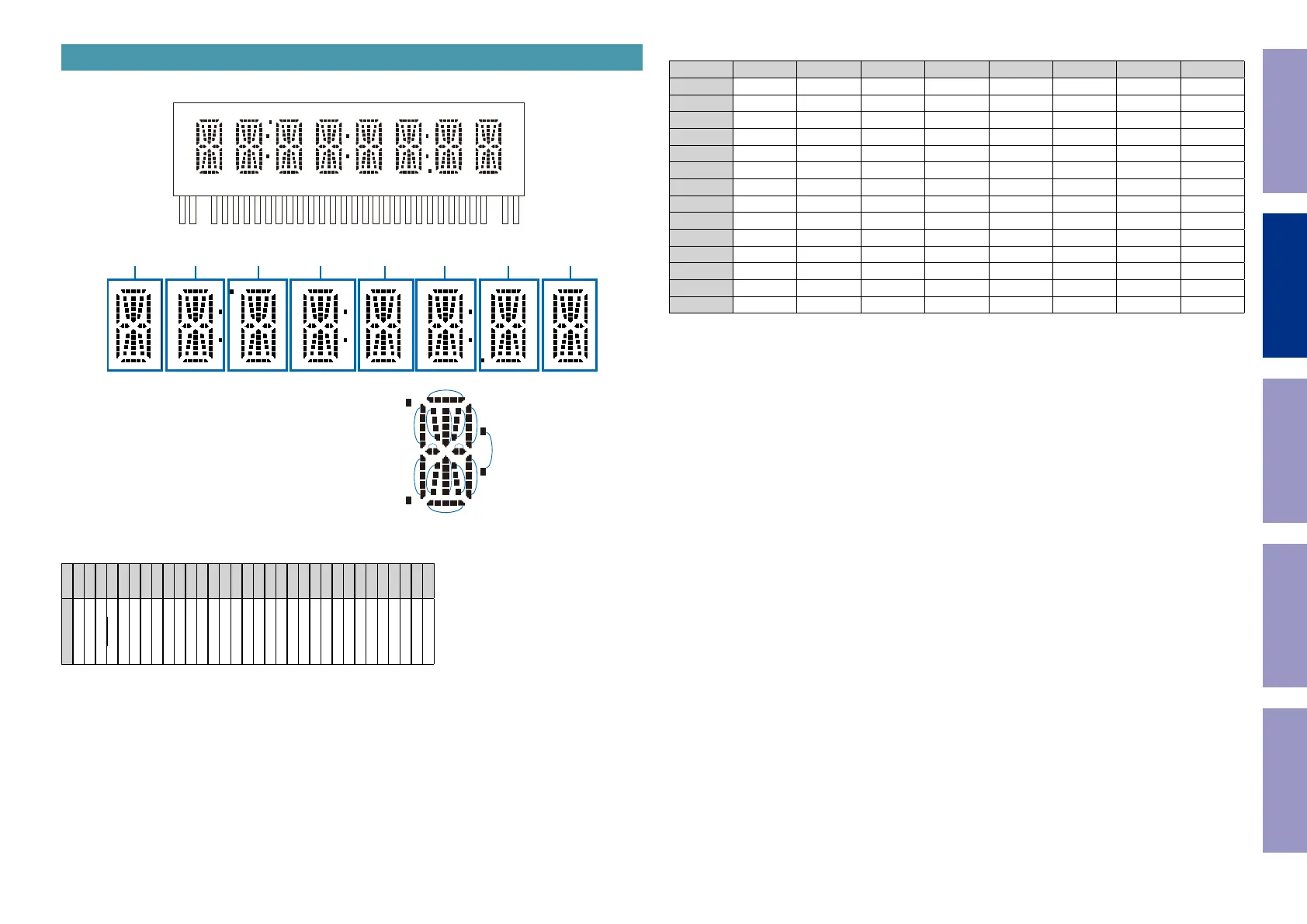

2. FL DISPLAY
FV935 (VFD1)
PIN CONNECTION
PIN NO.
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
CONNECTION
F1 F1
NP
NC(1G)
P14 P13 P12
NC(2G)
P11 P10
P9
NC(3G)
P8 P7 P6 P5 P4 P3 P2 P1
NC(6G)
8G 7G 6G 5G 4G 3G 2G 1G
NP
F2 F2
NOTE
1) F1, F2 ----Filament
2) NP ------No pin
3) NC ------No connection
(NC pin should be electrically open on the PC board.)
4) DL ------Datum Line
5) 1G-8G --Grid
6) Solder composition is Sn-3Ag-0.5Cu.
7) 1.5MAX is applied to all the leads inside A area.
0.8MAX is applied to all the leads inside B area.
q E2
a
d
1G-8G
f b
h k
j
e c
r n
j
Dp
Dp
3G
7G
g m
col 2G, 4G, 6G
1G 2G 3G 5G 7G 8G6G4G
ANODE CONNECTION
1G 2G 3G 4G 5G 6G 7G 8G
P1 a a a a a a a a
P2 k k k k k k k k
P3 j j j j j j j j
P4 h h h h h h h h
P5 b b b b b b b b
P6 f f f f f f f f
P7 m m m m m m m m
P8 g g g g g g g g
P9 c c c c c c c c
P10 e e e e e e e e
P11 n n n n n n n n
P12 r r r r r r r r
P13 d d d d d d d d
P14 - coQ Dp coQ - coQ Dp -
