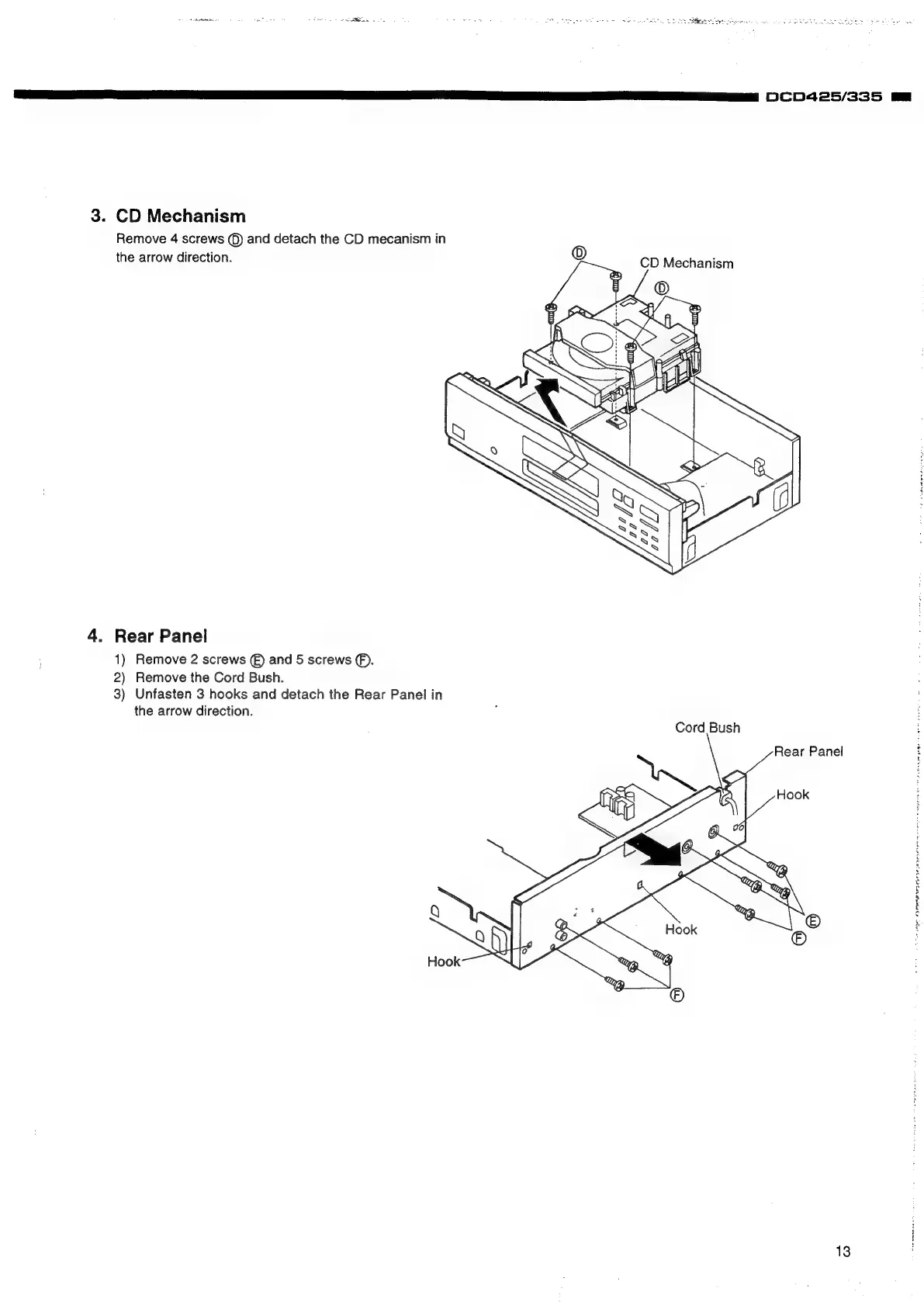

Denon DCD-425 - Disassembly: CD Mechanism and Rear Panel

DCD425/335
3. CD Mechanism
Remove 4 screws () and detach the CD mecanism in
the
arrow
direction.
CD
Mechanism
4. Rear Panel
1) Remove 2 screws &) and 5 screws ©).
2) Remove the Cord Bush.
3) Unfasten 3 hooks and detach the Rear Panel in
the arrow direction.
Cord Bush
Rear Panel
Hook
13
