NOTE FOR PARTS LIST
@ Part indicated with the mark "©" are not always in stock and possibly to take a long period of time for supplying, or in
some case supplying of part may be refused.
@ When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-supplying.
@ Ordering part without stating its part number can not be supplied.
@ Part indicated with the mark "x" is not illustrated in the exploded view.
@ Not including Carbon Film +5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol A\ gg have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
@ Resistors @ Capacitors
Ex: BN 14K 2E 182 G ER Ex: CE O4W 1H 2R2 M
Type Shape Power Resist- Allowable Others Type Shape Dielectric Capacity Allowable Others
and per- ance — error and per- strength error
formance formance
: Carbon : : : Pulse-resistant type : Aluminum foil F : High stability type
: Composition 4 : : Low noise type electrolytic
: Metal oxide film $i % : Non-burning type : Aluminum solid G: : Non-polar type
: Winding : ? : Fuse-resistor electrolytic
: Metal film : : Lead wire forming : Tantalum electrolytic J: : Ripple-resistant type
: Metal mixture : Film K: : For change and discharge
: Ceramic M: : For assuring high
frequency
: Ceramic La 7 UL part
* Resistance On “CSA part
18 2 => 1800 ohm = 1.8 kohm : Mica Pp : UL-CSA type
t Indicates number of zeros after effective number. : Metallized : Lead wire forming
2-digit effective number. : Metallized c
«Units:
ohm
D
= : Others
B22 =~ 120hm
t #1 -digit effective number. * Capacit
2-digit effective number, decimal point indicated by RA. pacity (electrolyte only)
«Units: ohm 2.2 1 = 2200uF
i Indicates number of zeros after effective number.
2-digit effective number.
© Units: pF.
28 => 2.2nF
t eee 1-digit effective number.
2-digit effective number, decimal point indicated by R.
© Units: pF.
*%* Capacity (except electrolyte)
= 2200pF=0.0022uF
(More than 2)— Indicates number of zeros after effective number.
2-digit effective number.
© Units: pF.
= 220pF
(O or 1) Indicates number of zeros after effective number.
2-digit effective number.
¢ Units: pF.
¢ When the dielectric strength is indicated in AC, "AC" is included after the dielectric
strength value.

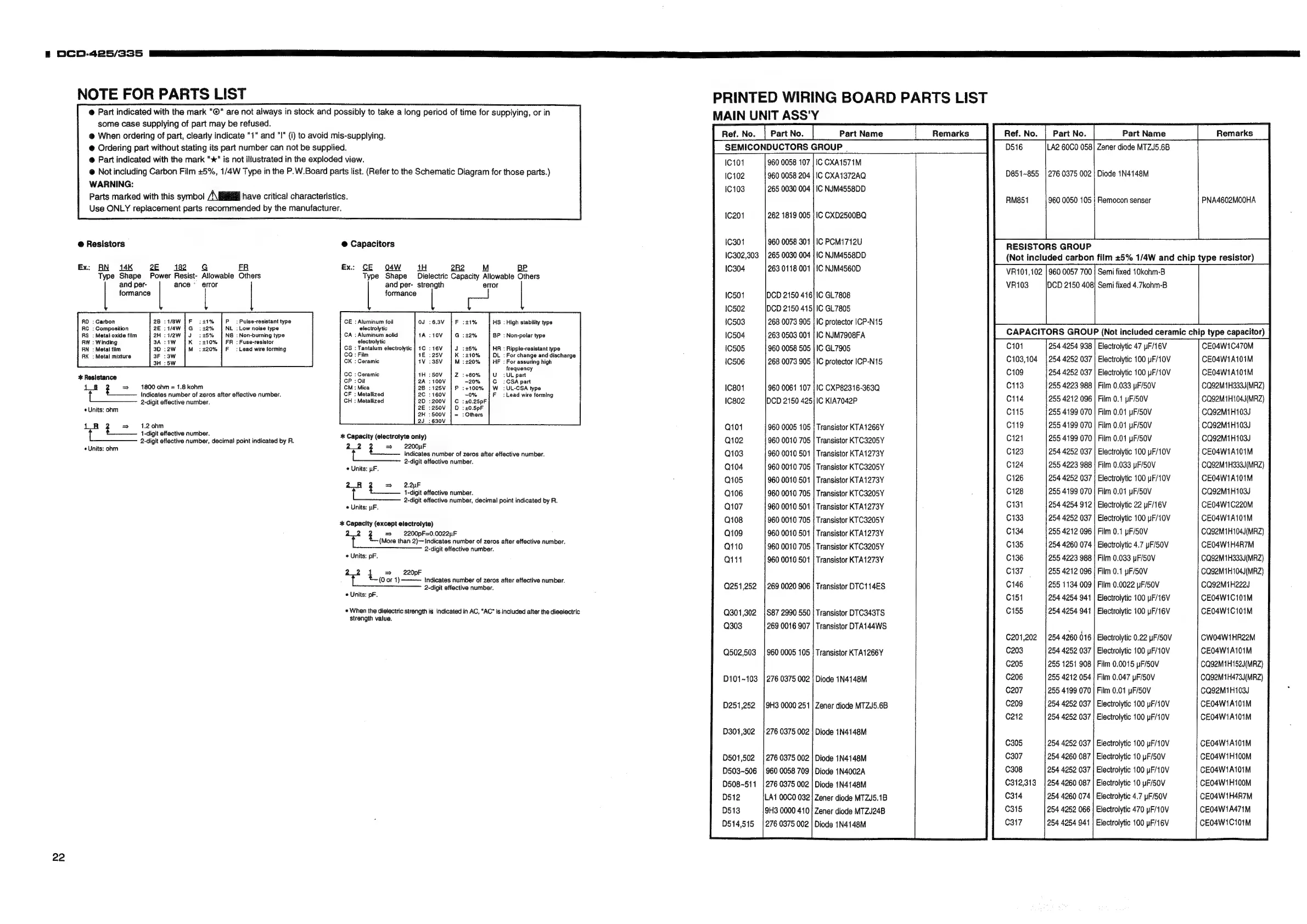

PRINTED WIRING BOARD PARTS LIST
MAIN UNIT ASS'Y
| Ref.No. | PartNo. | PartName | __ Remarks _|
SEMICONDUCTORS GROUP |
1104 960 0058 107 | !C CXA1571M
1C102 960 0058 204 | IC CXA1372AQ
C103 265 0030 004 | IC NUM4558DD
262 1819 005 | IC CXD2500BQ
C201
960 0058 301 | IC PCM1712U
265 0030 004 | IC NUM4558DD
263 0118 001 | 1C NJM4560D
C301
1C302,303
1C304
IC501
IC502
DCD 2150 415] IC GL7805
1C503 268 0073 905 | IC protector ICP-N15
10504 263 0503 001 | IC NUM7908FA
IC505 960 0058 505 | IC GL7905
IC506 268 0073 905 | IC protector ICP-N15
IC CXP82316-363Q
IC KIA7042P
960 0061 107
DCD 2150 425
C801
C802
960 0005 105 | Transistor KTA1266Y
Q101
Q102 960 0010 705 | Transistor KTC3205Y
Q103 960 0010 501 | Transistor KTA1273Y
Q104 960 0010 705 | Transistor KTC3205Y
Q105 960 0010 501 | Transistor KTA1273Y
Q106 960 0010 705 | Transistor KTC3205Y
Q107 960 0010 501 | Transistor KTA1273Y
Q108 960 0010 705 | Transistor KTC3205Y
Q109 960 0010 501 | Transistor KTA1273Y
Q110 960 0010 705 | Transistor KTC3205Y
960 0010 501 | Transistor KTA1273Y
Qi
Q251,252 | 269 0020 906 | Transistor DTC114ES
$87 2990 550
269 0016 907
Transistor DTC343TS
Transistor DTA144WS
Q301,302
Q303
Q502,503 | 960 0005 105 | Transistor KTA1266Y
276 0375 002 | Diode 1N4148M
D101~103
D251,252 |9H3 0000 251 | Zener diode MTZJ5.6B
D301,302
276 0375 002 | Diode 1N4148M
D501,502
D503~506
276 0375 002
960 0058 709
Diode 1N4148M
Diode 1N4002A
D508~511 | 276 0375 002 | Diode 1N4148M
D512 LA1 00C0 032) Zener diode MTZJ5.1B
D513 9H3 0000 410 | Zener diode MTZJ24B
D514,515 |276 0375 002 | Diode 1N4148M
Ref.No. | PartNo. | PartName | Remarks
D516 LA2 60C0 058) Zener diode MTZJ5.6B
276 0375 002 | Diode 1N4148M
D851~855
PNA4602MO00HA
RM851 960 0050 105 | Remocon senser
RESISTORS GROUP
(Not included carbon film +5% 1/4W and chip type resistor)
VR101,102 | 960 0057 700 | Semi fixed 10kohm-B
DCD 2150 408) Semi fixed 4.7kohm-B
CAPACITORS GROUP (Not included ceramic chip type capacitor)
C101 254 4254 938 | Electrolytic 47 pF/16V CE04W1C470M
C103,104 | 254 4252 037 | Electrolytic 100 pF/10V CE04W1A101M
C109 254 4252 037 | Electrolytic 100 yF/10V CE04W1A101M
C113 255 4223 988 | Film 0.033 yF/50V €Q92M1H333J(MRZ)
C114 255 4212 096 | Film 0.1 pF/S0V CQ92M1H104J(MRZ)
C115 255 4199 070 | Film 0.01 pF/50V CQ92M1H103J
C119 255 4199 070 | Film 0.01 pF/50V CQ92M1H103J
C121 255 4199 070 | Film 0.01 pF/50V CQ92M1H103J
C123 254 4252 037 | Electrolytic 100 pF/10V CEO4W1A101M
C124 255 4223 988 | Film 0.033 yF/S0V CQ92M1H333J(MRZ)
0126 254 4252 037 | Electrolytic 100 pF/10V CE04W1A101M
C128 255 4199 070 | Film 0.01 yF/50V CQ92M1H103J
C131 254 4254 912 | Electrolytic 22 pF/16V CE04W1C220M
C133 254 4252 037 | Electrolytic 100 yF/10V CE04W1A101M
C134 255 4212 096 | Film 0.1 pF/SOV CQ92M1H104d(MRZ)
C135 254 4260 074 | Electrolytic 4.7 uF/50V CE04W1H4R7M
C136 255 4223 988 | Film 0.033 yF/50V CQ92M1H333U(MRZ)
C137 255 4212 096 | Film 0.1 yF/50V CQ92M1H104J(MRZ)
C146 255 1134 009 | Film 0.0022 yF/50V CQ92M1H222J
C151 254 4254 941 | Electrolytic 100 uF/16V CE04W1C101M
C155 254 4254 941 | Electrolytic 100 pF/16V CEO4W1C101M
201,202 | 254 4260 016 | Electrolytic 0.22 uF/50V CWO4W1HR22M
C203 254 4252 037 | Electrolytic 100 yF/10V CEO4W1A101M
C205 255 1251 908 | Film 0.0015 yF/50V CQ92M1H152J(MRZ)
C206 255 4212 054 | Film 0.047 yF/S0V CQ92M1H473J(MRZ)
C207 255 4199 070 | Film 0.01 uF/SOV CQ92M1H103J
C209 254 4252 037 | Electrolytic 100 pF/10V CE04W1A101M
C212 254 4252 037 | Electrolytic 100 uF/10V CEO4W1A101M
C305 254 4252 037 | Electrolytic 100 yF/10V CEO4W1A101M
C307 254 4260 087 | Electrolytic 10 yF/50V CE04W1H100M
C308 254 4252 037 | Electrolytic 100 pF/10V CEO4W1A101M
€312,313 | 254 4260 087 | Electrolytic 10 yF/50V CE04W1H100M
CE04W1H4R7M
CE04W1A471M
CEO4W1C101M
C314
C315
C317
254 4260 074
254 4252 066
254 4254 941
Electrolytic 4.7 pF/50V
Electrolytic 470 yF/10V
Electrolytic 100 yF/16V
