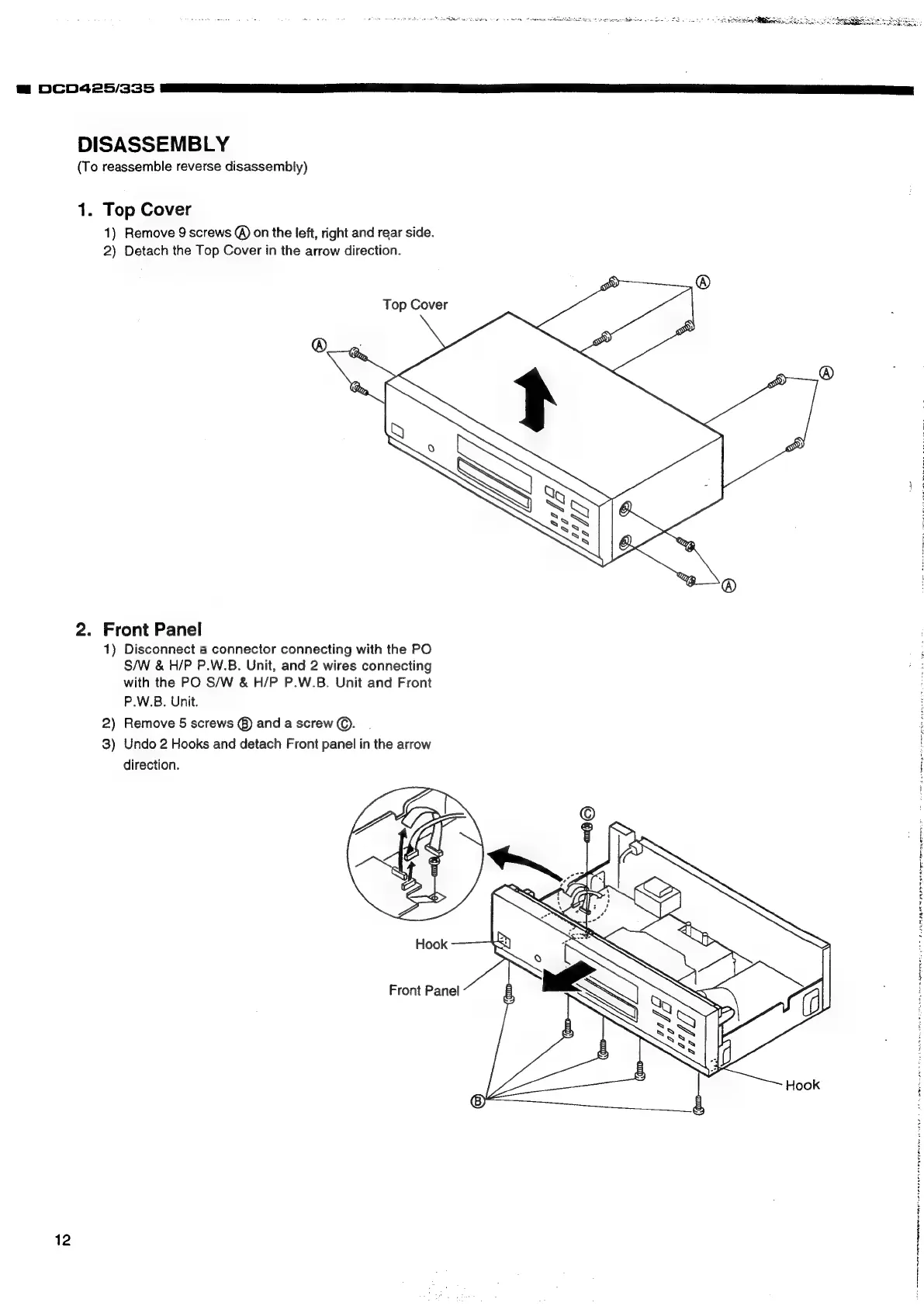

DISASSEMBLY
(To reassemble reverse disassembly)
1. Top Cover
1) Remove 9 screws @ on the left, right and rear side.
2) Detach the Top Cover in the arrow direction.
Top Cover
2. Front Panel
1) Disconnect a connector connecting with the PO
S/W & H/P P.W.B. Unit, and 2 wires connecting
with the PO S/W & H/P P.W.B. Unit and Front
P.W.B. Unit.
2) Remove 5 screws @) and a screw ©).
3) Undo 2 Hooks and detach Front panel in the arrow
direction.
Front Panel
12
