Denon DCD-425 - Exploded View of CD Mechanism

1DpCcO425/335

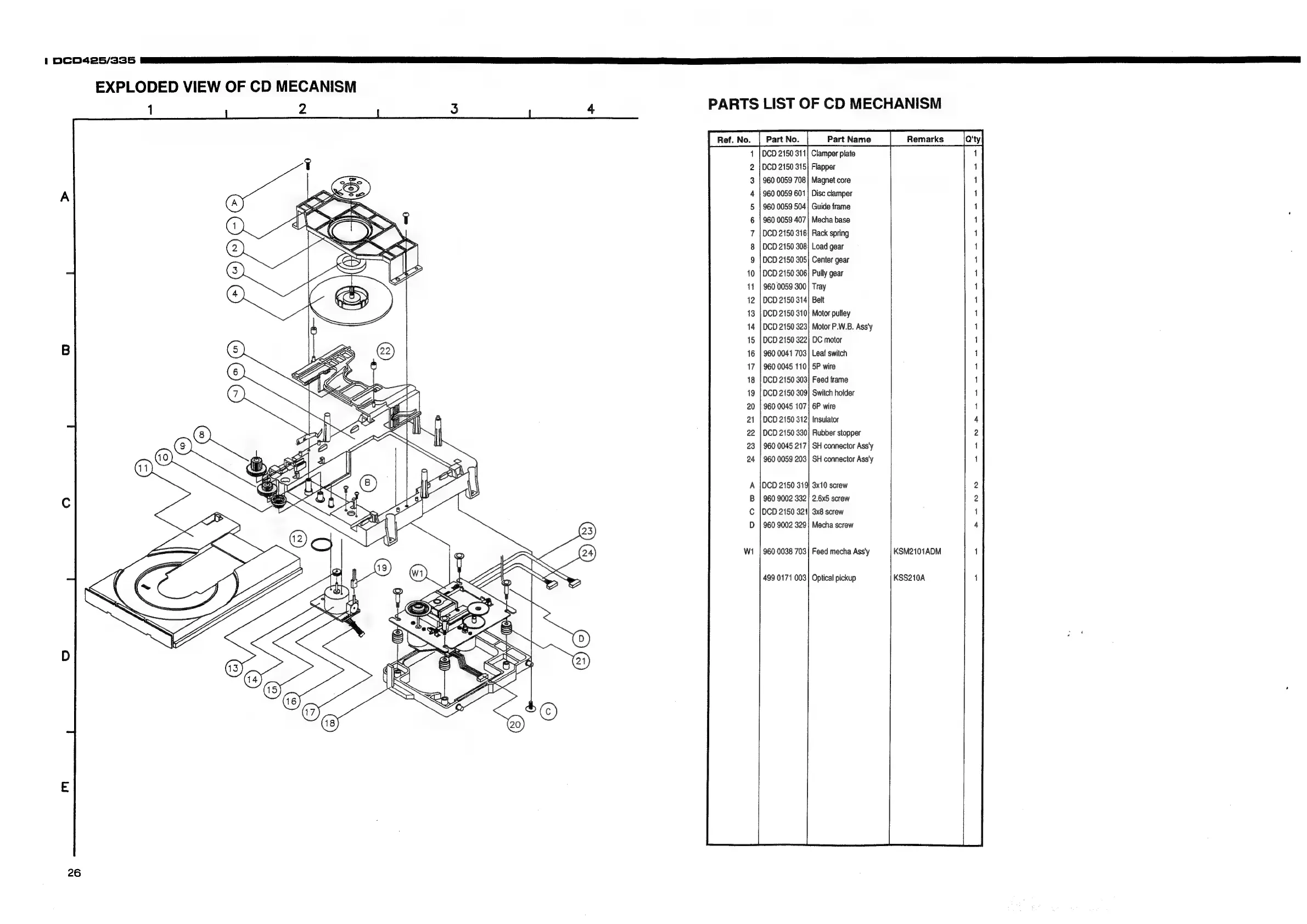

EXPLODED VIEW OF CD MECANISM
1 2
26
PARTS LIST OF CD MECHANISM
DCD 2150 311] Clamper plate 1
DCD 2150 315] Flapper 1
960 0059 708] Magnet core 1
960 0059 601 | Disc clamper 1
960 0059 504 | Guide frame 1
960 0059 407 | Mecha base 1
DCD 2150 316) Rack spring 1
DCD 2150 308) Load gear 1
DCD 2150 305} Center gear 1
10 |DCD 2150 306) Pully gear 1
11 | 960 0059 300] Tray 1
42 | DCD 2150 314} Belt 1
13 | DCD 2150 310} Motor pulley 1
1
1
1
1
1
1
1
4
2
1
1
ome nr Dane WMH —
14 |DCD 2150 323} Motor P.W.B. Ass'y
15 |DCD 2150 322] DC motor
16 | 960 0041 703] Leaf switch
960 0045 110
DCD 2150 303) Feed frame
19 | DCD 2150 309] Switch holder
20 | 960 0045 107] 6P wire
21 | DCD 2150 312) Insulator
22 | DCD 2150 330} Rubber stopper
23 | 960 0045 217] SH connector Ass'y
24 | 960 0059 203} SH connector Ass'y
5P wire
DCD 2150 319} 3x10 screw
960 9002 332 | 2.6x5 screw
DCD 2150 321] 3x8 screw
960 9002 329) Mecha screw
0900 BD >
r+ HH
W1 | 960 0038 703) Feed mecha Ass'y KSM2101ADM 1
499 0171 003) Optical pickup KSS210A 1
