Denon DCD-510AE - Connections and Setup; Connection Preparations; Cable Types for Connections


ENGLISH
Playback Troubleshooting Specications
q
w
t
y
i
r
e
u
o
Q5
i
y
Q6
Q7
Q3
Q4
Q2
Q1
Q0

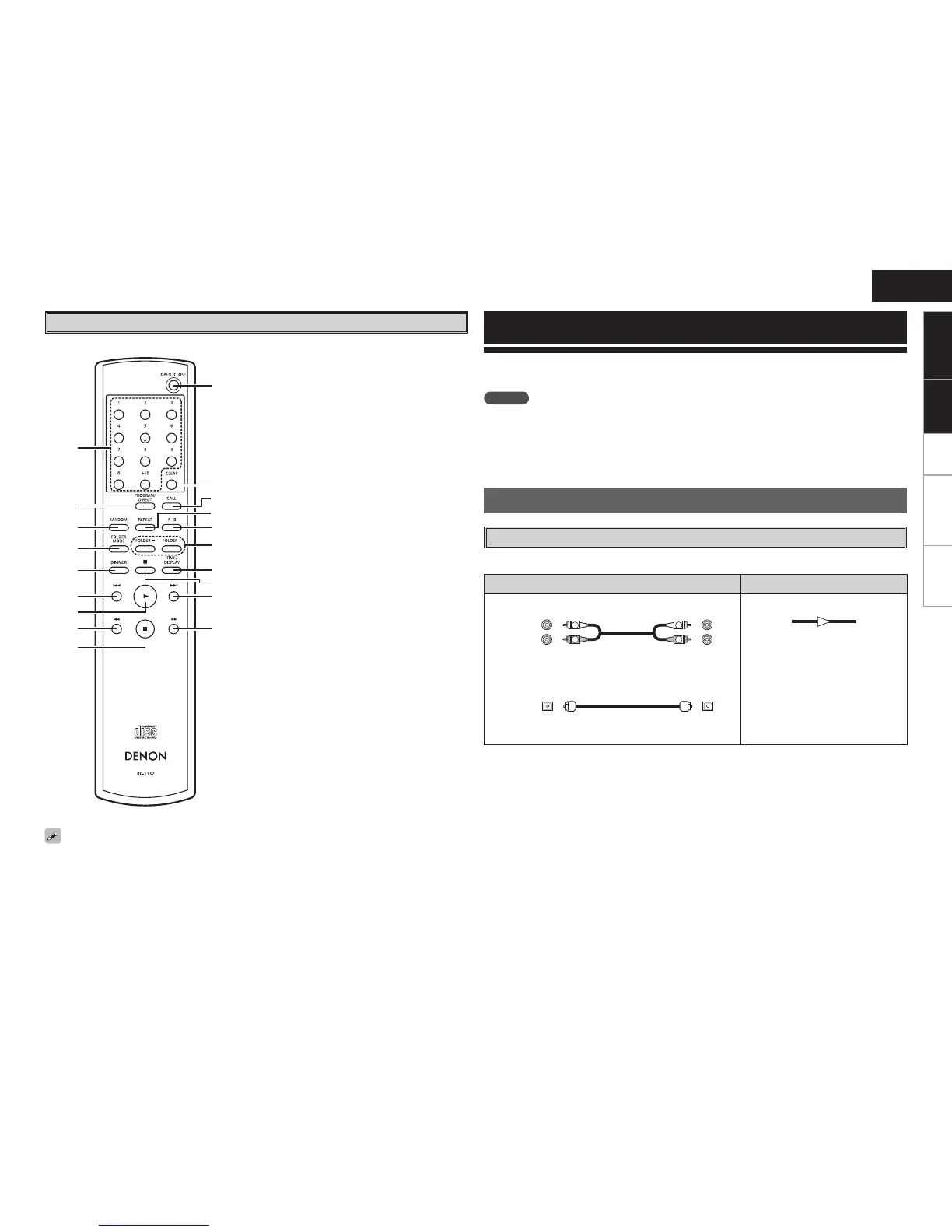

Remote Control Unit
q Number buttons ····································· (8, 10)
w PROGRAM/DIRECT button ·························· (9)
e RANDOM button··········································· (9)
r FOLDER MODE button ······························· (10)
t DIMMER button ············································ (7)
y Reverse-skip/Forward-skip buttons
(8, 9) ·············································· (8, 10)
u Play button (1) ····································· (7 ~ 10)
i Fast-reversing/Fast-forwarding buttons
(6, 7) ······················································ (8)
o Stop button (2) ············································· (8)
Q0 Pause button (3) ······································· (7, 8)
Q1 TIME/DISPLAY button ···························· (8, 10)
Q2 FOLDER +, – buttons ·································· (10)
Q3 Repeat A-B button (A-B) ······························ (8)
Q4 REPEAT button ········································ (8, 10)
Q5 CALL button ·················································· (9)
Q6 CLEAR button ··············································· (9)
Q7 OPEN/CLOSE button ···································· (7)
The skip buttons (8 and 9), +10 button and FOLDER +, – buttons operate continuously when held
in.
Audio cables Signal direction
Analog connections (stereo)
(White)
(Red)
R
L
R
L
Audio cable (supplied)
Optical digital connections
Optical cable (sold separately)
Audio signal:
Output Input
NOTE
• Do not plug in the power cord until all connections have been completed.
• When making connections, also refer to the owner’s manual of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power cords together with connection cables.
Doing so can result in humming or noise.
Connections for all compatible audio signal formats are described in this owner’s manual. Please
select the types of connections suited for the equipment you are connecting.
Select the cables according to the equipment being connected.
Preparations
Cables Used for Connections
Connections
ConnectionsGetting Started
