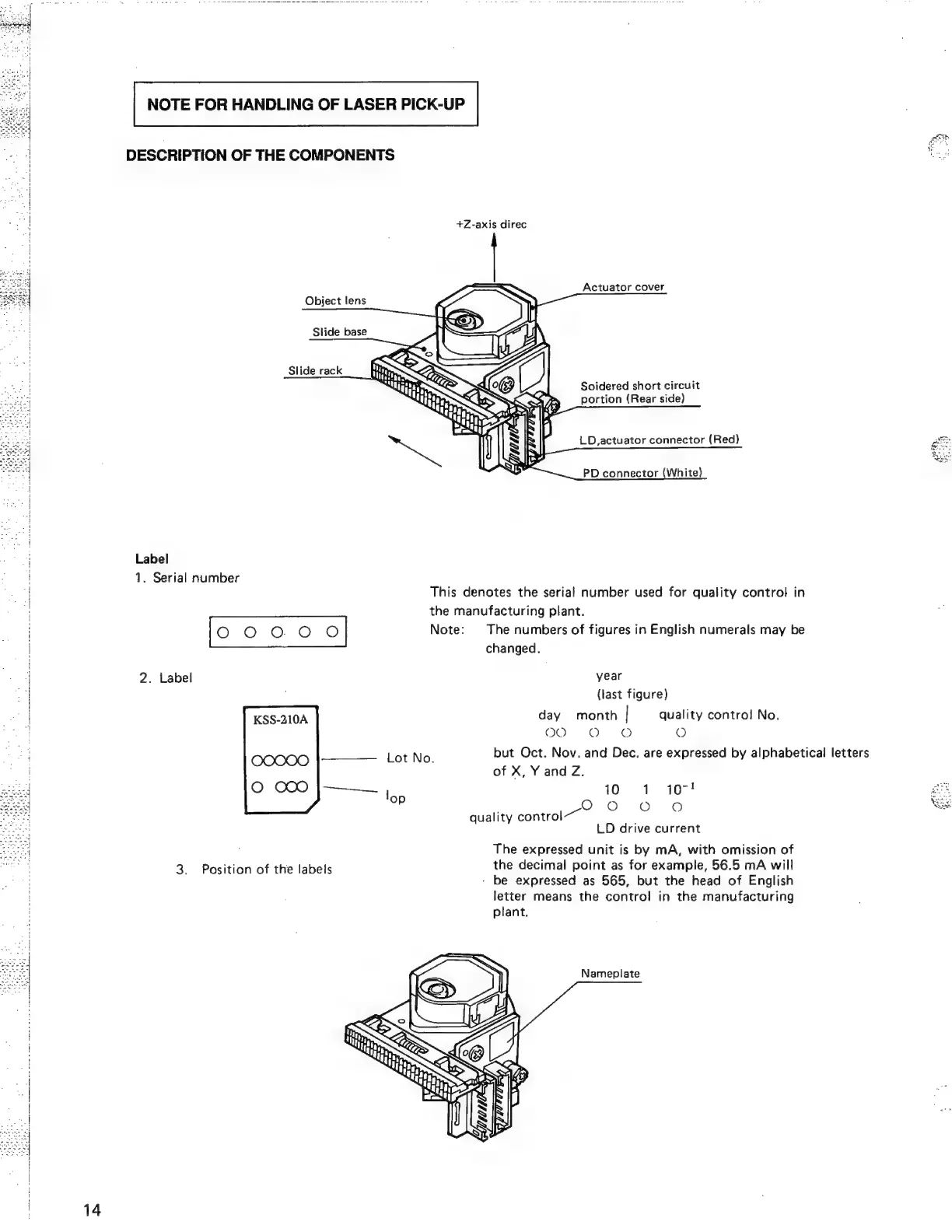

NOTE FOR HANDLING OF LASER PICK-UP
DESCRIPTION OF THE COMPONENTS
+Z-axis direc
Actuator cover
Object lens
Slide base
Slide rack
Soidered short circuit
portion (Rear side)
LD,actuator connector (Red)
PD connector (White)
Label
1. Serial number
This denotes the serial number used for quality contro! in
the manufacturing plant.
| Ce Cy: §Gy. Oe =O Note: The numbers of figures in English numerals may be
| changed.
2. Label year
Z
|
(last
figure)
ul
KSS-210A
day
month
|
quality
contro!
No.
-_ OO: “Or =O) O
cae C0000 Lot No. but Oct. Nov. and Dec. are expressed by alphabetical letters
| of X, Y and Z.
O COO |—_ tee 10 1 107!
Oo: «OO
quality control
LD drive current
The expressed unit is by mA, with omission of
3. Position of the labels the decimal point as for example, 56.5 mA will
- be expressed as 565, but the head of English
letter means the control in the manufacturing
plant.
Nameplate
14
