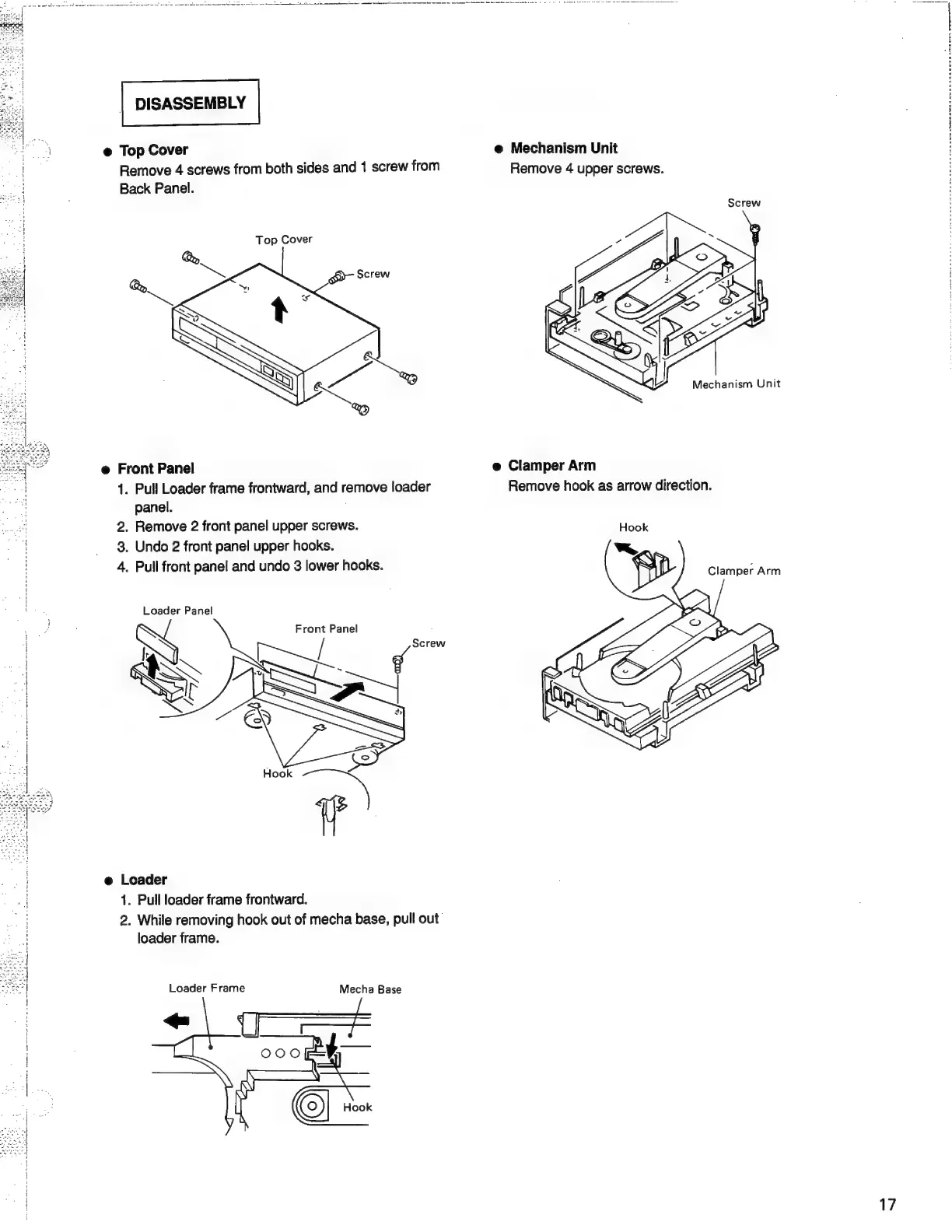

Denon DCD-660 - Disassembly Procedures; Component Removal Steps

| DISASSEMBLY
e@ Top Cover
Remove
4
screws
from
both
sides
and
1
screw
from
Back Panel.
Top Cover
@ Front Panel
1. Pull Loader frame frontward, and remove loader
panel.
2. Remove 2 front panel upper screws.
3. Undo 2 front panel upper hooks.
4, Pull front panel and undo 3 lower hooks.
Loader Panel
Front Panel .
Screw
Hook p)
e Loader
1. Pull loader frame frontward.
2. While removing hook out of mecha base, pull out
loader frame.
Loader Frame Mecha Base
<u
OOO by
e@ Mechanism Unit
Remove 4 upper screws.
e Clamper Arm
Remove hook as arrow direction.
Screw
17
