Denon DCD-660 - Component Identification and Functions; Advanced Playback and Function Buttons

1
i
244
\
'
t

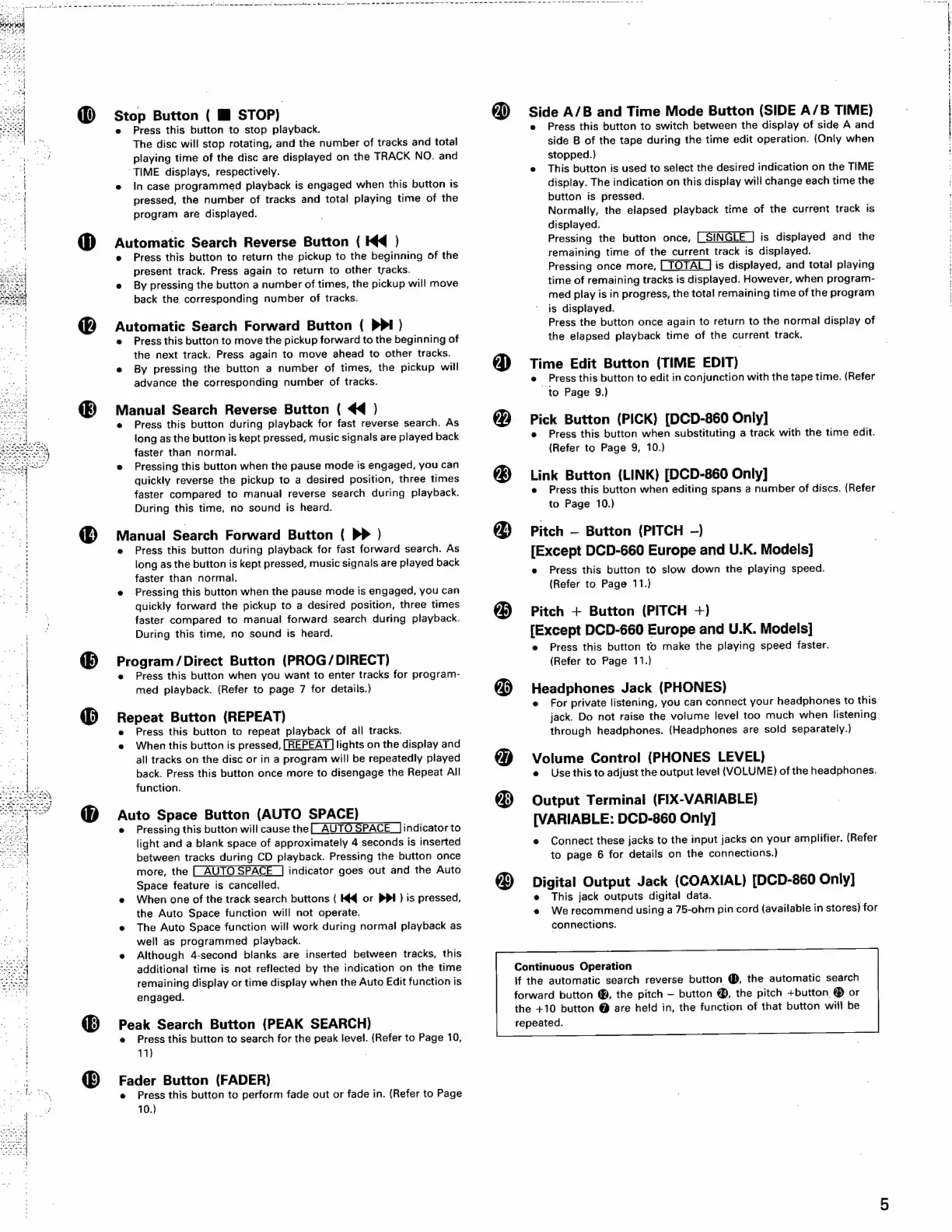

Stop Button ( STOP)
Press this button to stop playback.
The disc will stop rotating, and the number of tracks and total
playing time of the disc are displayed on the TRACK NO. and
‘TIME displays, respectively.
e in case programmed playback is engaged when this button is
pressed, the number of tracks and total playing time of the
program are displayed.
Automatic Search Reverse Button ( Iq )
e Press this button to return the pickup to the beginning of the
present track. Press again to return to other tracks.
e By pressing the button a number of times, the pickup will move
back the corresponding number of tracks.
Automatic Search Forward Button ( PPI )
e Press this button to move the pickup forward to the beginning of
the next track. Press again to move ahead to other tracks.
e By pressing the button a number of times, the pickup will
advance the corresponding number of tracks.
Manual Search Reverse Button ( 44 )
e Press this button during playback for fast reverse search. As
long as the button is kept pressed, music signals are played back
faster than normal.
e Pressing this button when the pause mode is engaged, you can
quickly reverse the pickup to a desired position, three times
faster compared to manual reverse search during playback.
During this time, no sound is heard.
Manual Search Forward Button ( D> )
e Press this button during playback for fast forward search. As
long as the button is kept pressed, music signals are played back
faster than normal.
e Pressing this button when the pause mode is engaged, you can
quickly forward the pickup to a desired position, three times
faster compared to manual forward search during playback.
During this time, no sound is heard.
Program/Direct Button (PROG/DIRECT)
e Press this button when you want to enter tracks for program-
med playback. (Refer to page 7 for details.)
Repeat Button (REPEAT)
Press this button to repeat playback of all tracks.
e When this button is pressed, [REPEAT ] lights on the display and
all tracks on the disc or in a program will be repeatedly played
back. Press this button once more to disengage the Repeat All
function.
Auto Space Button (AUTO SPACE)
e Pressing this button will cause the indicator to
light and a blank space of approximately 4 seconds is inserted
between tracks during CD playback. Pressing the button once
more, the indicator goes out and the Auto
Space feature is cancelled.
e When one of the track search buttons ( K@ or DPI) is pressed,
the Auto Space function will not operate.
e The Auto Space function will work during normal playback as
well as programmed playback.
e Although 4-second blanks are inserted between tracks, this
additional time is not reflected by the indication on the time
remaining display or time display when the Auto Edit function is
engaged.
Peak Search Button (PEAK SEARCH)
e Press this button to search for the peak level. (Refer to Page 10,
11)
Fader Button (FADER)
e Press this button to perform fade out or fade in. (Refer to Page
10.)
@
ese 6 e 8 ©
8 8
Side A/B and Time Mode Button (SIDE A/B TIME)
e Press this button to switch between the display of side A and
side B of the tape during the time edit operation. (Only when
stopped.)
e This button is used to select the desired indication on the TIME
display. The indication on this display will change each time the
button is pressed.
Normally, the elapsed playback time of the current track is
displayed.
Pressing the button once, is displayed and the
remaining time of the current track is displayed.
Pressing once more, is displayed, and total playing
time of remaining tracks is displayed. However, when program-
med play is in progress, the total remaining time of the program
is displayed.
Press the button once again to return to the normal display of
the elapsed playback time of the current track.
Time Edit Button (TIME EDIT)
e Press this button to edit in conjunction with the tape time. (Refer
to Page 9.)
Pick Button (PICK) [DCD-860 Only]
e Press this button when substituting a track with the time edit.
{Refer to Page 9, 10.)
Link Button (LINK) [DCD-860 Only]
e Press this button when editing spans a number of discs. (Refer
to Page 10.)
Pitch — Button (PITCH -)
[Except DCD-660 Europe and U.K. Models]
e Press this button to slow down the playing speed.
(Refer to Page 11.)
Pitch + Button (PITCH +)
[Except DCD-660 Europe and U.K. Models]
e Press this button to make the playing speed faster.
(Refer to Page 11.)
Headphones Jack (PHONES)
e For private listening, you can connect your headphones to this
jack. Do not raise the volume level too much when listening
through headphones. (Headphones are sold separately.)
Volume Control (PHONES LEVEL)
e
Use
this
to
adjust
the
output
level
(VOLUME)
of
the
headphones.
Output Terminal (FIX-VARIABLE)
[VARIABLE: DCD-860 Only]
e
Connect
these
jacks
to
the
input
jacks
on
your
amplifier.
(Refer
to
page
6 for
details
on
the
connections.)
Digital
Output
Jack
(COAXIAL)
[DCD-860
Only]
e This jack outputs digital data.
e
Werecommend
using
a
75-ohm
pin
cord
(available
in
stores)
for
connections.
Continuous Operation
if
the
automatic
search
reverse
button
@,
the
automatic
search
forward
button
@,
the
pitch
—
button
@,
the
pitch
+button
®
or
the
+10
button
@
are
held
in,
the
function
of
that
button
will
be
repeated.
